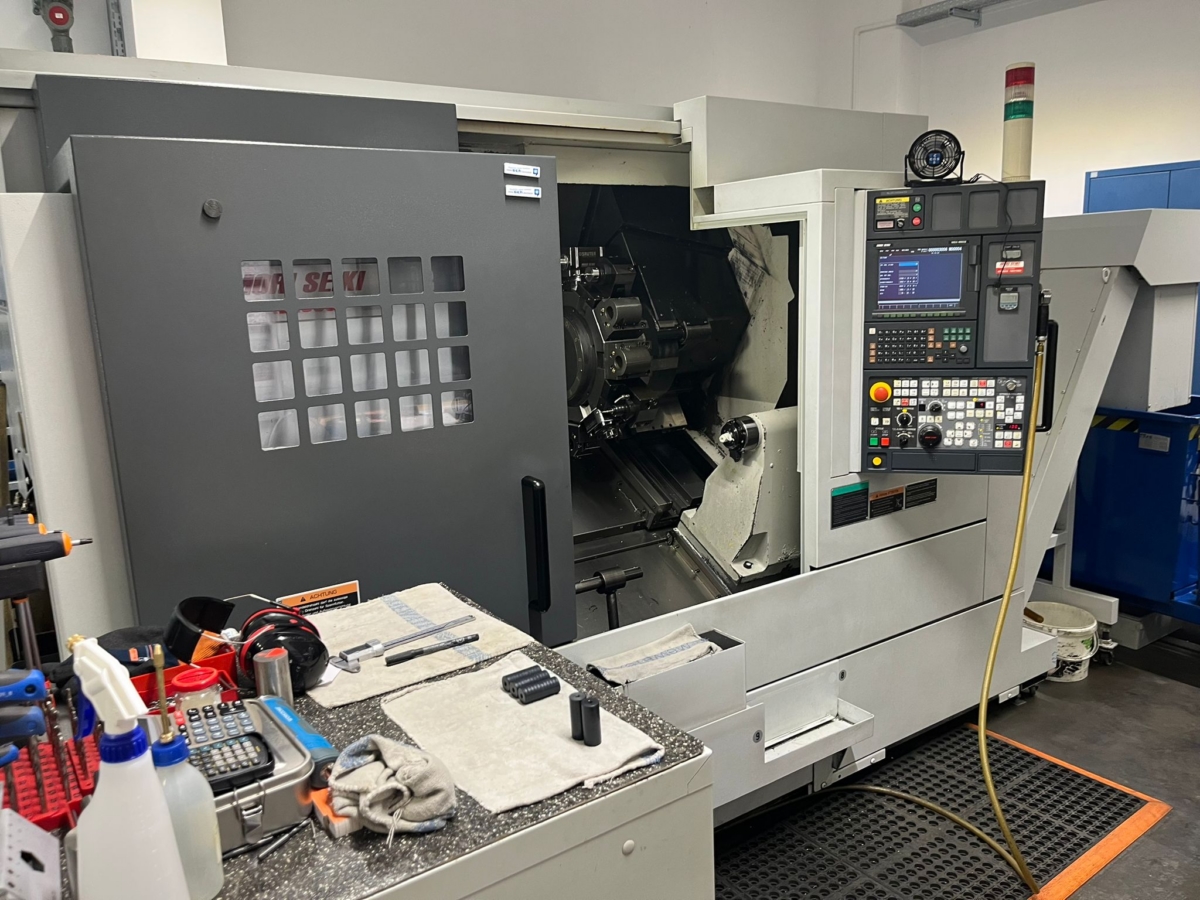

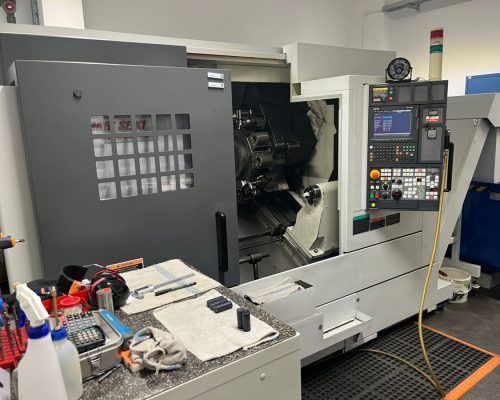

Accessories/equipment:
Clamping device Kitagawa BB210A821 + Kitagawa SS1881K21
* Power clamping device for the work spindle consisting of:
– hydraulic three-jaw power chuck with through-feed, type: Kitagawa BB210A821″,
Ø 254 mm, through-feed 81 mm, max. speed 4,500 rpm, including attachments and a
set of soft clamping jaws
– draw tube for max. bar diameter of 80 mm
– hydraulic hollow clamping cylinder, type “Kitagawa SS1881K21, passage 81 mm
– Anti-rotation device and clamping travel monitoring
Double foot switch with protective cover for work spindle
– Foot switch for chuck actuation on the work spindle in the
version with two pedals instead of the standard version with one pedal
Integrated bearing in the quill (MK 3)
Coolant system with increased pressure of 5 bar
Hinged belt conveyor, ejection on the right
– Hinged belt chip conveyor with rollers in the version to the right
side of the machine with approx. 1,000 mm discharge height, including
adjustment control
Integrated parts catcher for main spindle
I/F for bar loader
– Preparation for the connection of a bar feeder or a bar loader
Total counter
Workpiece counter
Signal light (red, white, green)
| turning diameter | 356 | mm |
| turning length | 705 | mm |
| control | MSX-850 | |
| greates pass round over bed | 923 | mm |
| 755 | mm | |
| travel -x axis | 260 | mm |
| travel -z axis | 795 | mm |
| travel -y axis | 100 | mm |
| turning speeds | 4.000 | U/min |
| bar material dia. | 80 | mm |
| spindle bore | 91 | mm |
| C-axis | 0,001 | ° |
| 30.000/10.000/30.000 | mm/min | |
| weight of the machine ca. | 6.100 | kg |
| dimensions of the machine ca. | . | m |
1030302
Steuerung: CNC MSX-850
Metal Processing, Lathes, CNC Lathe
