Exhausting system, AIRTEC MODUL X9
| Dust suction hood | 630 | mm |
| Required air-pressure | 5 | bar |
| max. temperature | 60 | Grad |
| Air consumption | 18.000 | m³/h |
| Dust suction hood | 630 | mm |
| Required air-pressure | 5 | bar |
| max. temperature | 60 | Grad |
| Air consumption | 18.000 | m³/h |

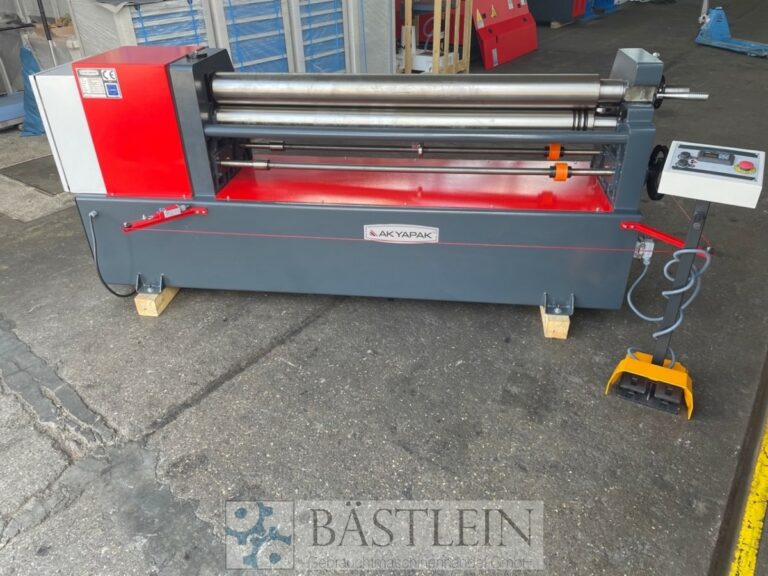

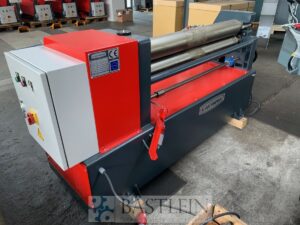

| sheet width | 2100 | mm |
| plate thickness | 5 | mm |
| pre-bending | 5 | mm |
| upper roll diameter | 170 | mm |
| min. bending diameter | Ø 255 | mm |
| sheet width | 3100 | mm |
| plate thickness | 6 | mm |
| pre-bending | 5 | mm |
| upper roll diameter | 200 | mm |
| min. bending diameter | Ø 300 | mm |
| sheet width | 2100 | mm |
| plate thickness | 13 | mm |
| pre-bending | 10 | mm |
| upper roll diameter | 230 | mm |
| lower roll diameter | 210 | mm |
| sheet width | 3100 | mm |
| plate thickness | 10 | mm |
| pre-bending | 8 | mm |
| upper roll diameter | 270 | mm |
| lower roll diameter | 250 | mm |
| sheet width | 3100 | mm |
| plate thickness | 25 | mm |
| pre-bending | 20 | mm |
| upper roll diameter | 390 | mm |
| lower roll diameter | 360 | mm |
| sheet width | 4100 | mm |
| plate thickness | 35 | mm |
| pre-bending | 28 | mm |
| upper roll diameter | 540 | mm |
| lower roll diameter | 541 | mm |

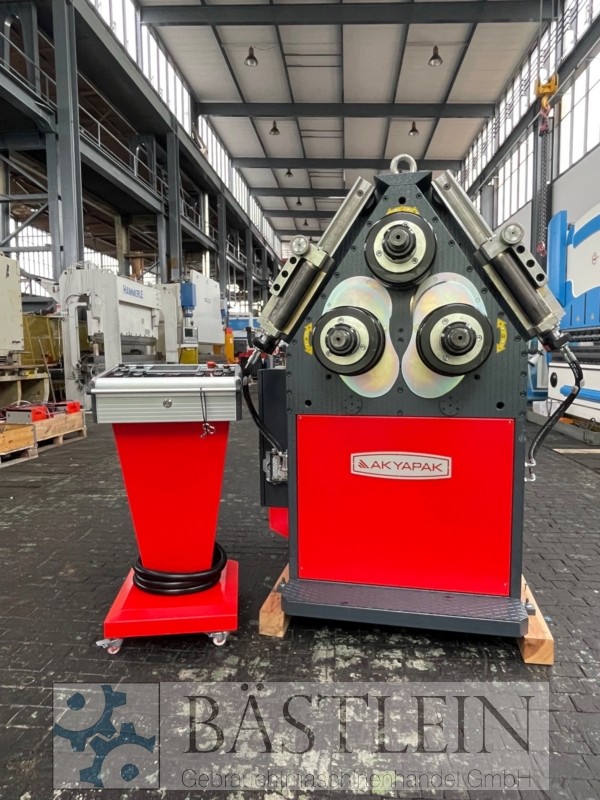

| I-beam section - flat steel | 80x20 (d1200) | mm |
| I-beam section - upend | 80x25 (d2100) | mm |
| L-beam | 50x50x6 (d1000) | mm |
| bar material - diameter | 40 (d800) | mm |
| square material | 60x60x3 (d4000) | mm |
| bar material - diameter | Ø 35 | mm |
| I-beam section - flat steel | 60x10 | mm |
| L-beam | 50 | mm |
| tube diameter max. | Ø 60x2 | mm |
| square material | 45x45x3 | mm |
