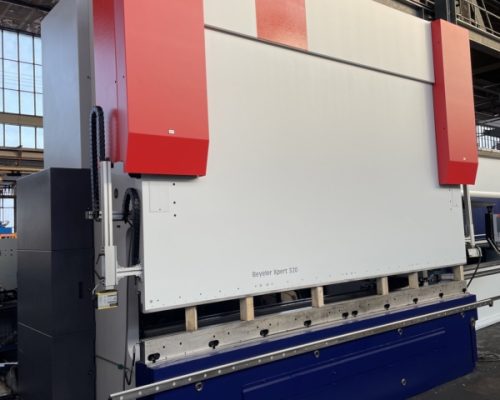

Hydr. pressbrake, BYSTRONIC XPERT 320 x 4100

// Zustand: used
// Metal Processing
// Hydr. pressbrake

General data


Stock no.	4021117
Make	BYSTRONIC
Type	XPERT 320 x 4100
Year	2008

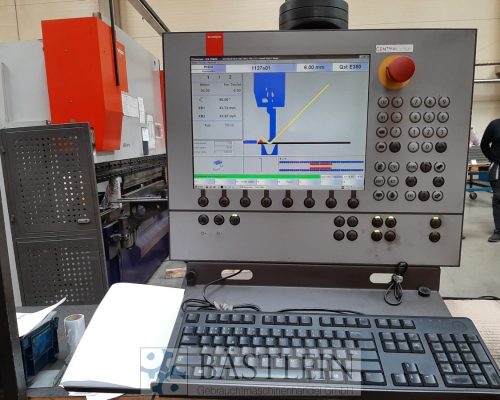

Control	CNC – MMC PLC
Storage location	Günzburg
Country of origin	Germany
Delivery time	kurzfristig – nach Absprache.
Freight basis	Lieferung ab Lager Günzburg.

Technical Details

pressure	320	t
chamfer lenght	4100	mm
X-axis travel	600	mm
R-axis travel	250	mm
Z-axis travel	2900	mm
Stroke	265	mm
throat	400	mm
distance between columns	3750	mm
dayligth	550	mm
table width	60	mm
control	MMC PLC
oil volume	600	l
weight	29.000	kg
range L-W-H	5000x2300x4020	mm

Description

Equipment/accessories:
– hydr. crowning

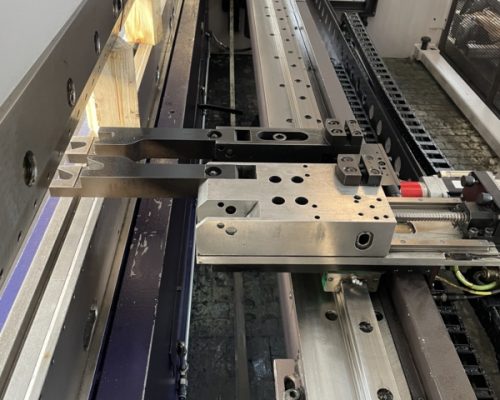

– controlled axles: Y1, Y2, X, R, Z1, Z2
– stepped safety guards
– Protective grille behind the machine

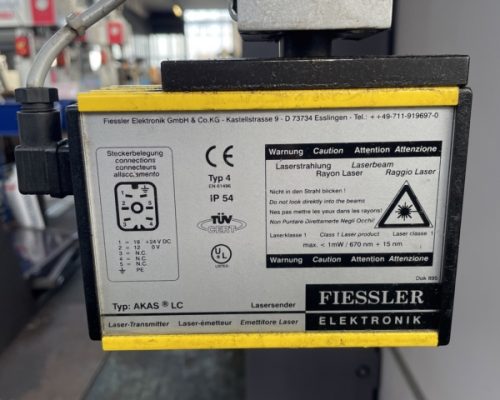

– FIESSLER light barrier
– MACHINE WITHOUT TOOLS

Youtube video link:

pressure	320	t
chamfer lenght	4100	mm
X-axis travel	600	mm
R-axis travel	250	mm
Z-axis travel	2900	mm
Stroke	265	mm
throat	400	mm
distance between columns	3750	mm
dayligth	550	mm
table width	60	mm
control	MMC PLC
oil volume	600	l
weight	29.000	kg
range L-W-H	5000x2300x4020	mm

4021117
Steuerung: CNC MMC PLC
Metal Processing, Sheet metal working / shaeres / bending, Hydr. pressbrake
