Equipment/accessories:
– Control conversion at the end of 2018
– Electric backgauge 1250 mm
– 10-stage die displacement
– crowning
– EHT 26 mm tool holder
– Axes controlled: Y1,Y2,X,R
– Sheet metal holding table
– 4x manually adjustable stop fingers

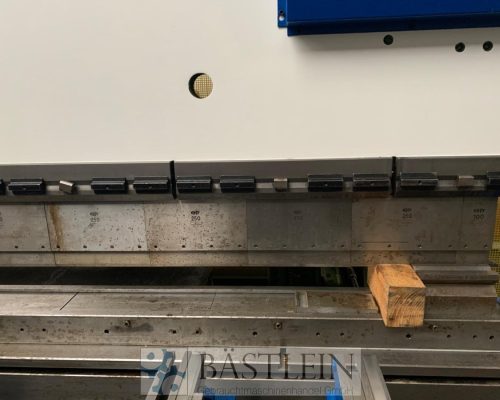

– pneum. Upper tool clamping

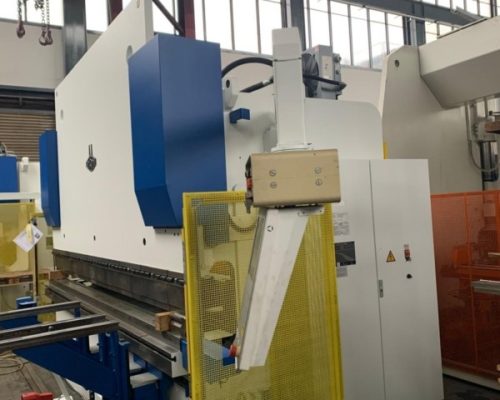

– Safety light curtain
– 3x height-adjustable support arms
– Oil cooler

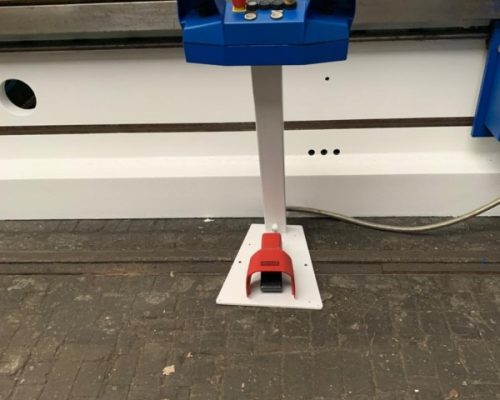

– 2-hand foot switch
| pressure | 150 | t |
| chamfer lenght | 4050 | mm |
| distance between columns | 3550 | mm |

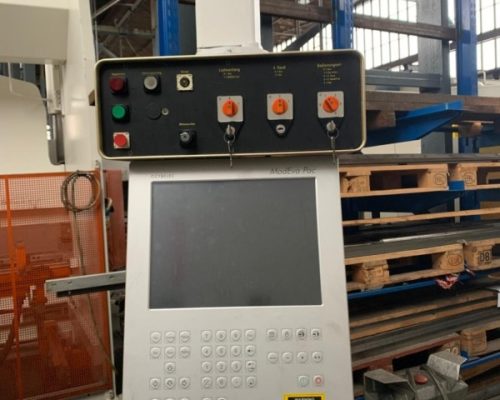

| Control | CYBELEC ModEva Pac | |
| throat | 350 | mm |
| distance between table / ram | 430 | mm |
| table width | 250 | mm |
| stroke | 250 | mm |
| total power requirement | 18,5 | kW |
| weight of the machine ca. | 16500 | kg |
| dimensions of the machine ca. | 4400x2100x3200 | mm |
4020954
Steuerung: CNC CYBELEC ModEva Pac

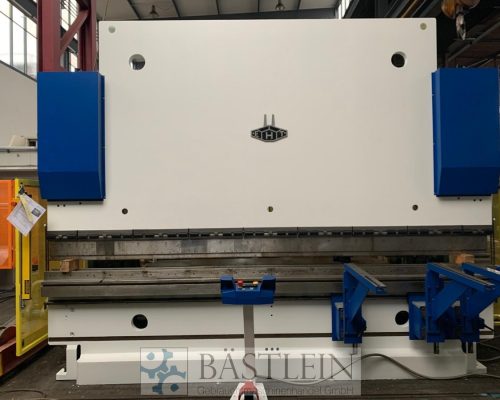

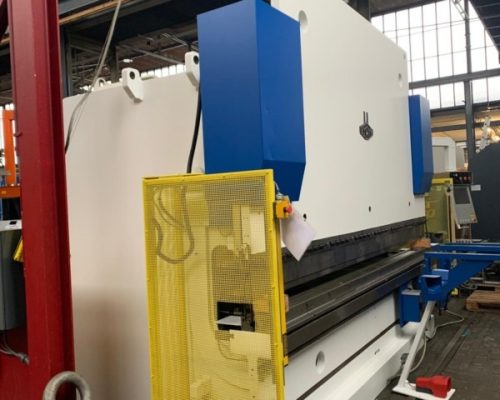

Metal Processing, Sheet metal working / shaeres / bending, Hydr. pressbrake
