Accessories / equipment:
– controlled axes: Y1 – Y2 – X – R
– Z1 and Z2 can be moved manually
– Lasersafe angle measurement

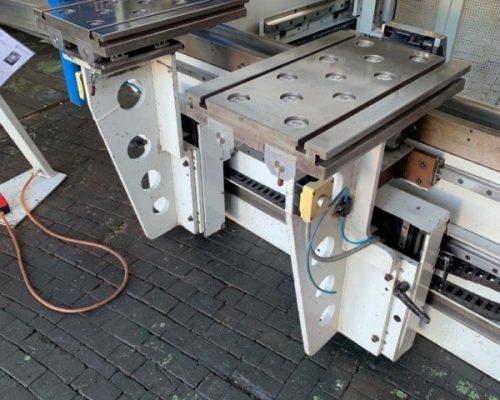

– Pneumatically adjustable support table
– pneumatic upper and lower tool clamping

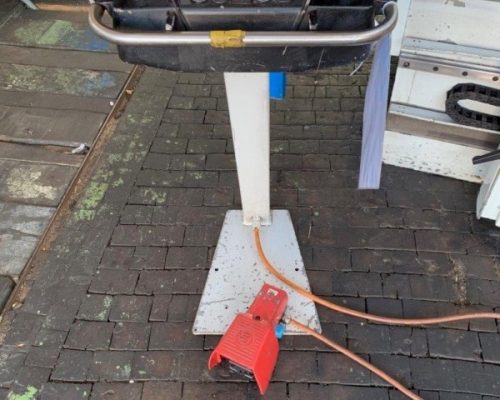

– 2-hand foot control
– manual crowning
| pressure | 225 | t |
| chamfer lenght | 2050 | mm |
| distance between columns | 1550 | mm |
| control | CYBELEC DNC 1200 PS Eco | |
| stroke | 550 | mm |
| table height | 700 | mm |
| throat | 405 | mm |
| distance between table / ram | 320-870 | mm |
| column arm | 405 | mm |
| weight of the machine ca. | 14.000 | kg |
4020805

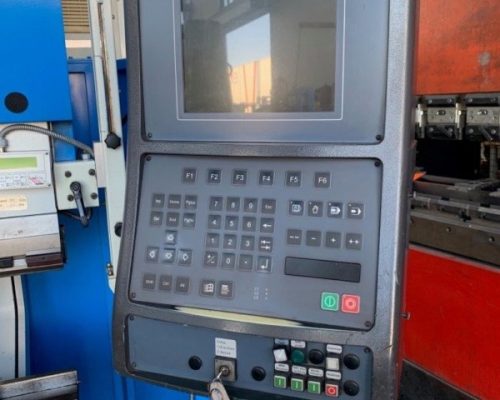

Steuerung: CNC CYBELEC DNC 1200 PS Eco

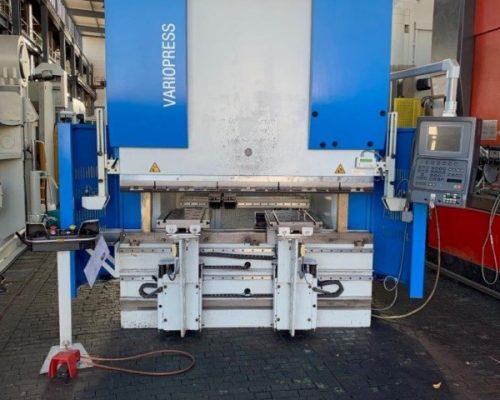

Metal Processing, Sheet metal working / shaeres / bending, Hydr. pressbrake
