Accessories/equipment:

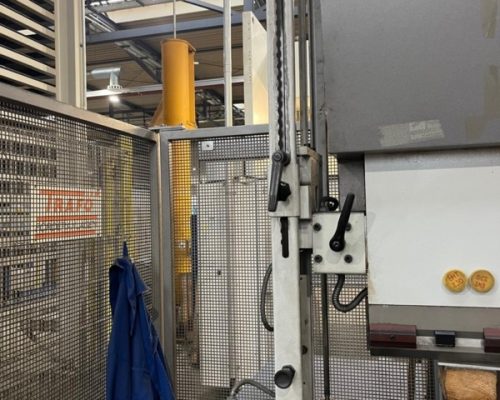

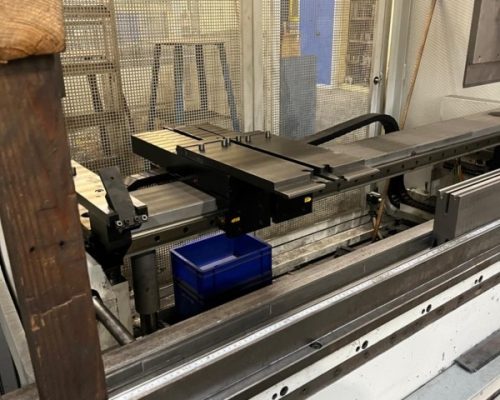

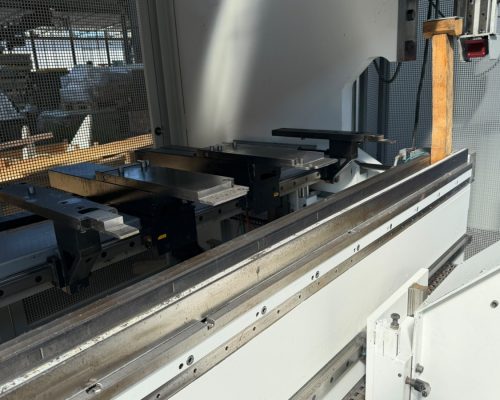

Rear stop
Stop support adjustment:
– Stop range X-axis (from bending line): 5-1000 mm
– Adjustment speed X-axis: max. 500 mm/sec
Height adjustment
– Adjustment range R-axis (from table surface): 85-235 mm
– Adjustment speed R-axis: max. 150 mm/sec
Stop finger adjustment:
– Adjustment range Z1-axis (from left table front): 520-2365 mm
– Adjustment speed Z1-axis: max. 1000 mm/sec
– Adjustment range Z2-axis (from left table front): 690-2535 mm
– Adjustment speed Z2-axis: max. 1000 mm/sec
– Adjustment range X1-axis (from center position): ± 125 mm
– Adjustment speed X1 axis: max. 250 mm/sec
Die displacement – adjustment via rear stop (MVX)
– Adjustment range: max. 100 mm
– Adjustment speed as X axis: 500 mm/sec

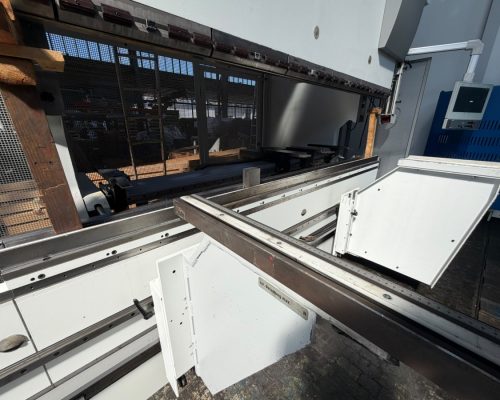

Bending aid at the front
– Swivel angle BV1/BV2 axis: 55°
– Swivel speed BV1/BV2 axis: max. 45°/sec
– Swivel force per swivel arm BV1/BV2 axis: max. 1500 N
| pressure | 225 | t |
| pressing length | 3050 | mm |
| distance between columns | 2550 | mm |
| DNC 1200PS Eco/Col | ||
| stroke of ram | 700 | mm |
| column arm | 405 | mm |
| distance between table / ram | min. 320 / max. 1020 | mm |
| total power requirement | 29,5 | kW |
| weight of the machine ca. | 15.500 | kg |
4021236

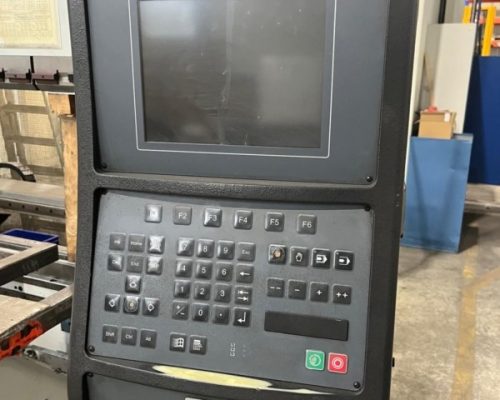

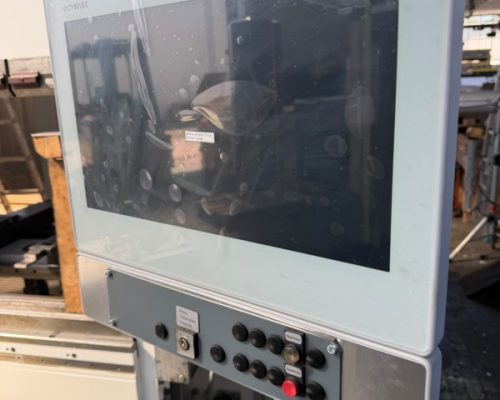

Steuerung: CNC

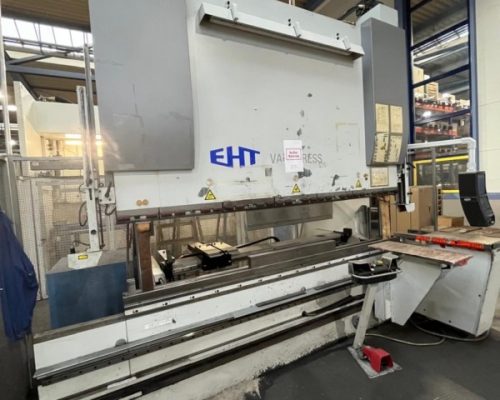

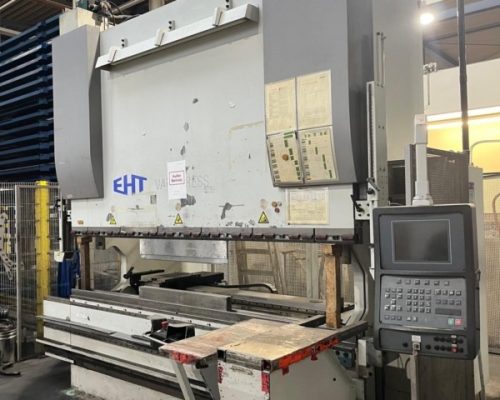

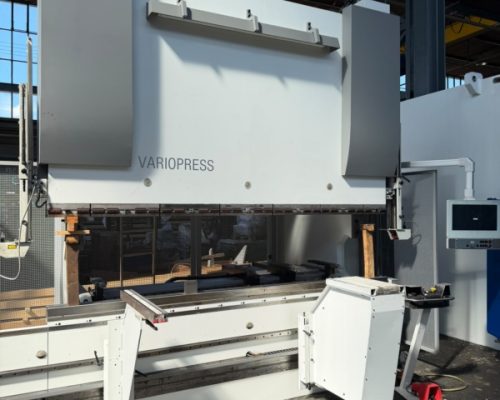

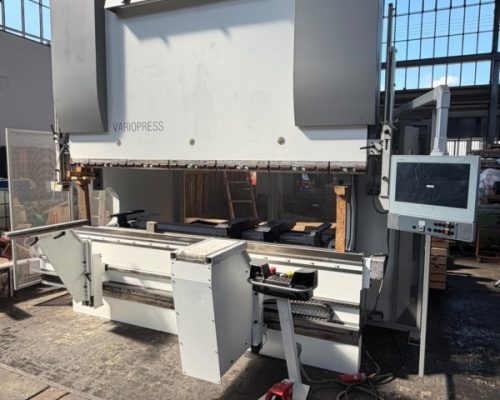

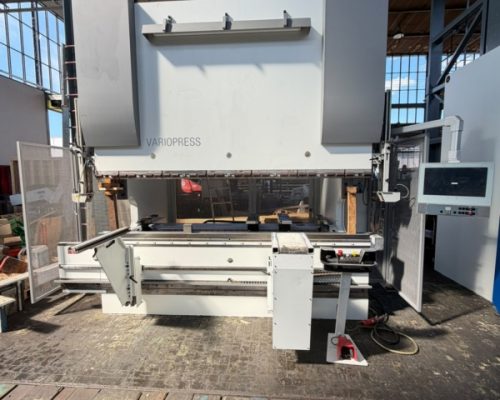

Metal Processing, Sheet metal working / shaeres / bending, Hydr. pressbrake
