Standard equipment:
– Sturdy machine frame as a welded construction in all-steel design
– Pressure beam with high bending strength
– Spherical mounting of the pressure beam with pressure beam inclination
– Electro-hydraulic upper drive with 4-cylinder technology
– Proportional valve technology and switchable double pump
– Modern block hydraulics with control valves mounted on the cylinder
– Electronic pressure gauge
– Measuring system with centrally mounted glass scales and temperature
compensation
– Wedge crowning integrated in the table, manual
– Upper tool holder system New Standard Clamping manual, hardened,
self-centering, for vertical tool change
– Lower tool holder with hydraulic clamping, hardened
– Lower tool displacement programmable (pneumatic, 2 positions)
– 2-axis backgauge system with rack and pinion drive for X and R axes
– 2 stop fingers with secure adjustment from the front
– TRUMPF TASC 6000 machine control

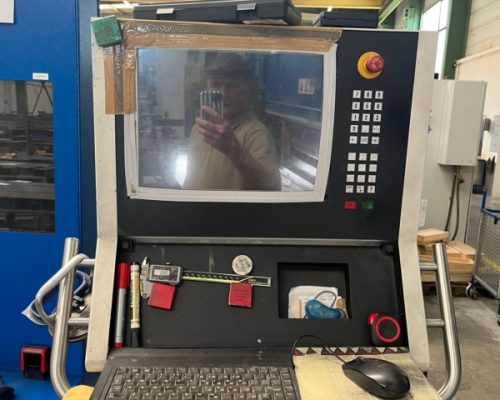

– Control panel with LCD keypad, foot switch, emergency start and emergency stop

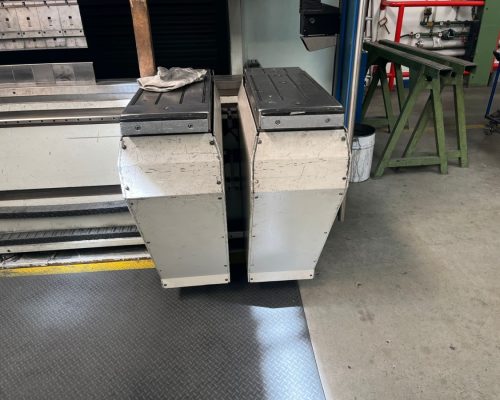

– Safety device: integrated side doors and automatic
roller cover at the rear
– Switch cabinet cooling (air-to-air heat exchanger)
– Oil cooler
– Network-compatible
Special equipment:
– 5-axis rear stop system
– Hydraulic upper tool clamping
– CNC crowning
– CNC lower tool displacement
– BendGuard
– Foot switch
– Support console
– First arm bending aid
– Table extension
– Table widening
– Short parking position (190 mm)
– Preparation for AC
| pressure | 230 | t |
| chamfer lenght | 3230 | mm |
| distance between columns | 2690 | mm |
| stroke | 445 | mm |
| dayligth | 615 | mm |
| total power requirement | 42 | kVA |
| weight of the machine ca. | 19.200 | kg |
| height of the machine | 3.300 | mm |
4021322
Steuerung: CNC

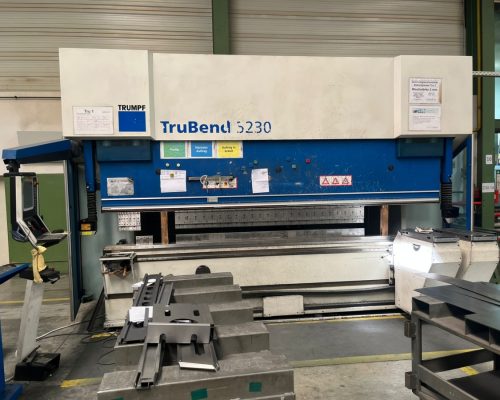

Metal Processing, Sheet metal working / shaeres / bending, Hydr. pressbrake
