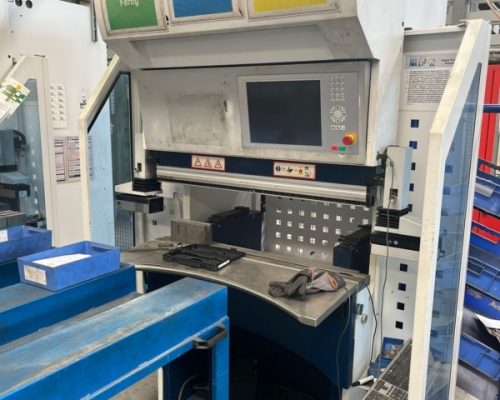

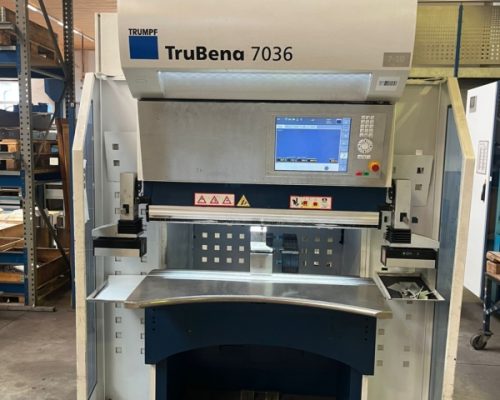

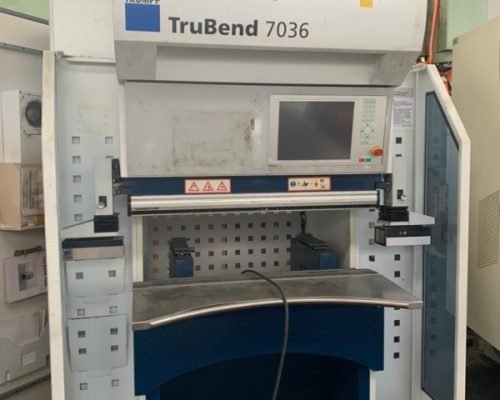

Standard equipment:
– Sturdy machine frame as a welded construction in all-steel design
– Pressure beam with high bending strength
– Spherical mounting of the pressure beam with pressure beam inclination
– Electro-hydraulic upper drive with 4-cylinder technology
– Proportional valve technology and switchable double pump
– Modern block hydraulics with control valves mounted on the cylinder
– Electronic pressure gauge
– Measuring system with centrally mounted glass scales and temperature
compensation
– Wedge crowning integrated in the table, manual
– Upper tool holder system New Standard Clamping manual, hardened,
self-centering, for vertical tool change
– Lower tool holder with hydraulic clamping, hardened
– Lower tool displacement programmable (pneumatic, 2 positions)

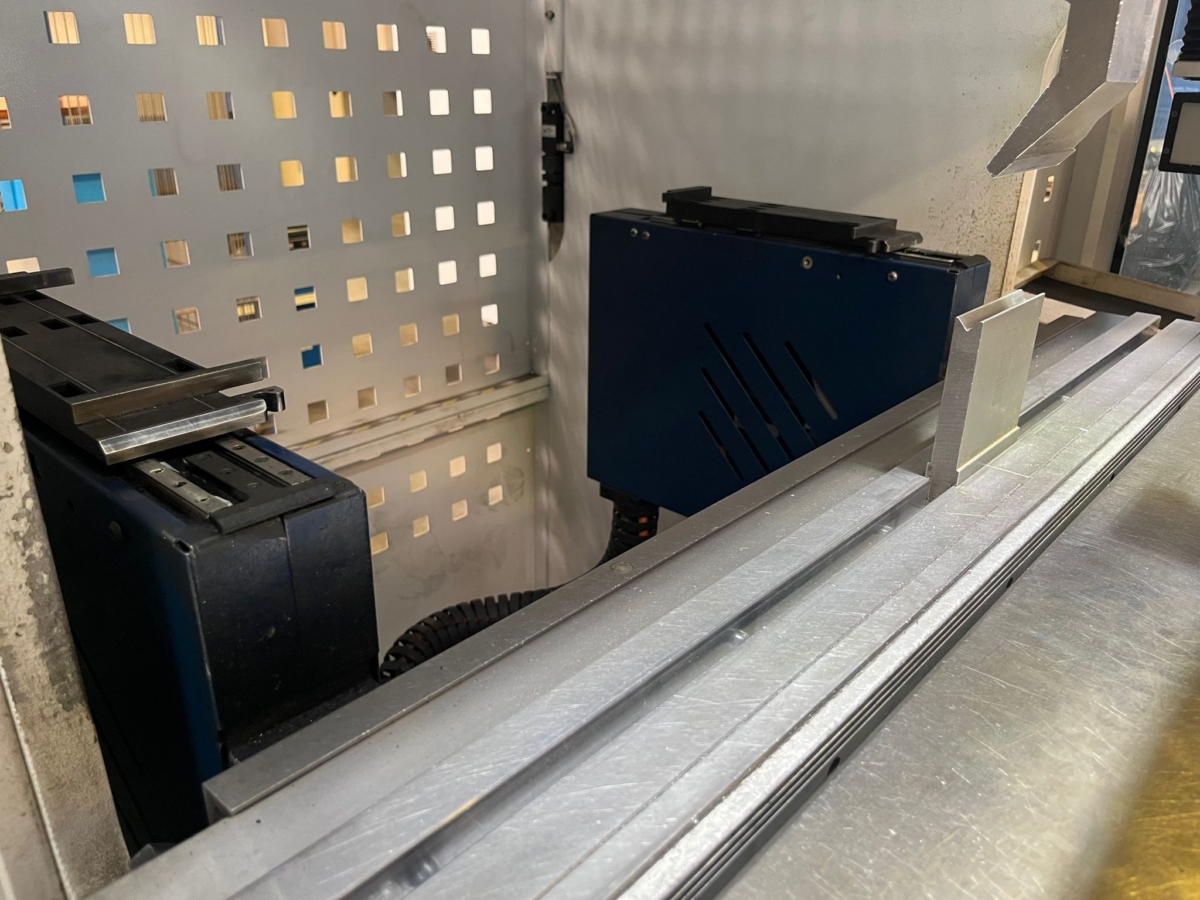

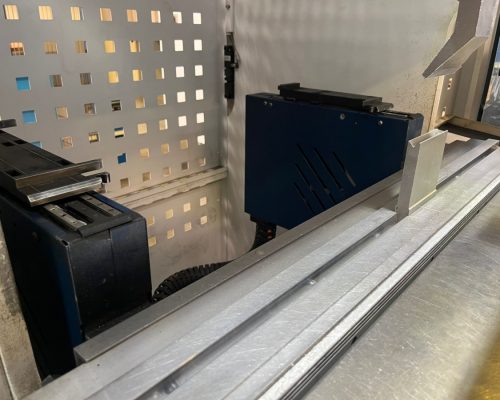

– 2-axis backgauge system with rack and pinion drive for X and R axes
– 2 stop fingers with secure adjustment from the front

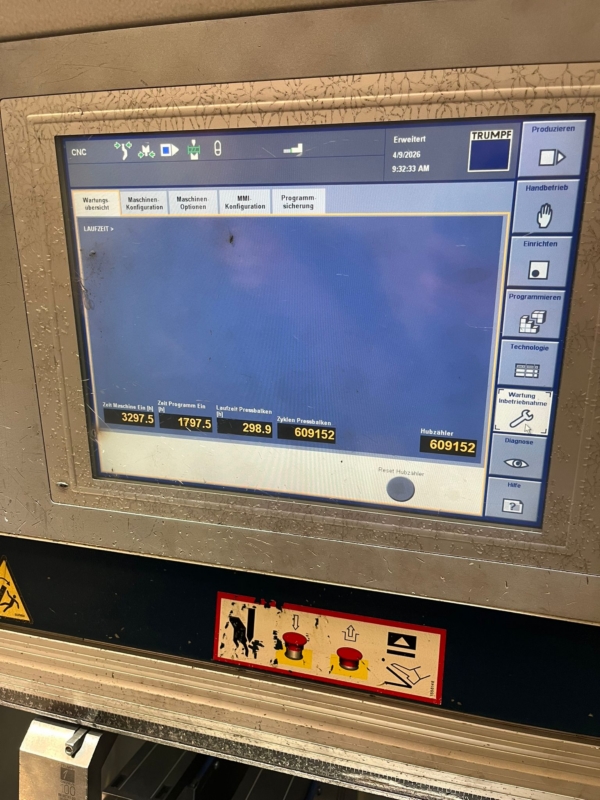

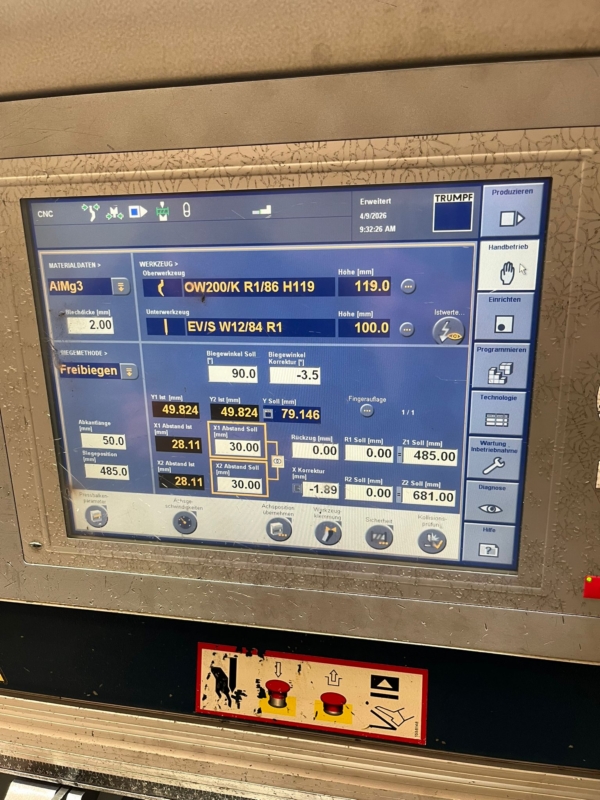

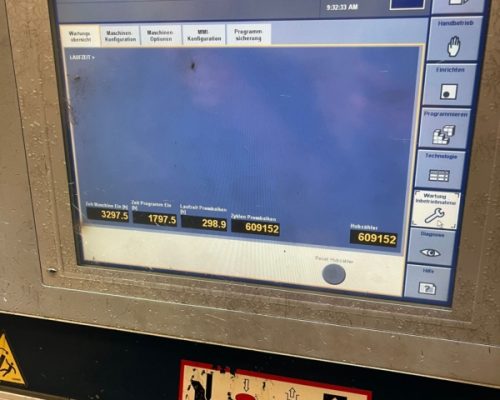

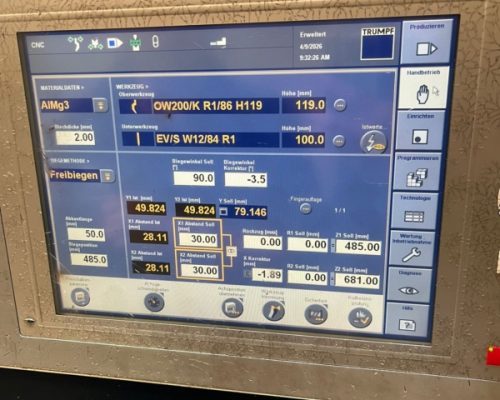

– TRUMPF TASC 6000 machine control
– Control panel with LCD keypad, foot switch, emergency start and emergency stop
– Safety device: integrated side doors and automatic
roller cover at the rear

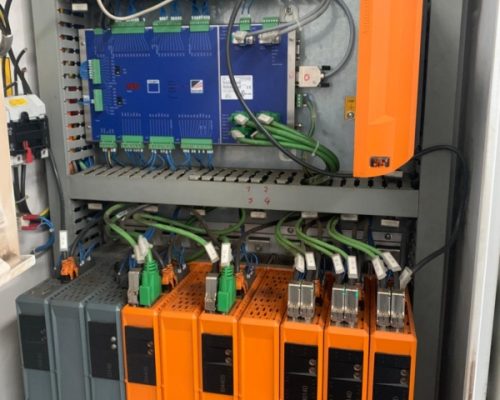

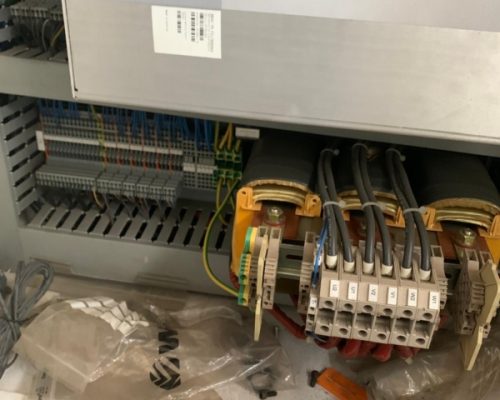

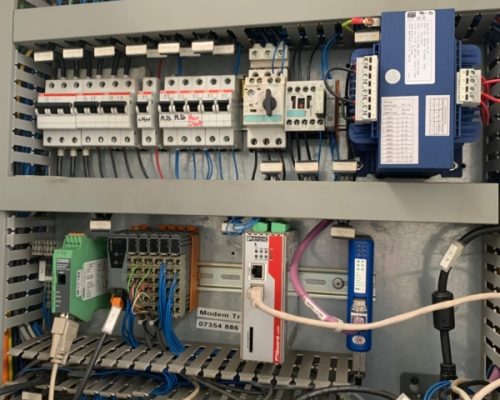

– Switch cabinet cooling (air-to-air heat exchanger)
– Oil cooler
– Network-compatible
Special equipment:
– 5-axis rear stop system
– Hydraulic upper tool clamping
– CNC crowning
– CNC lower tool displacement

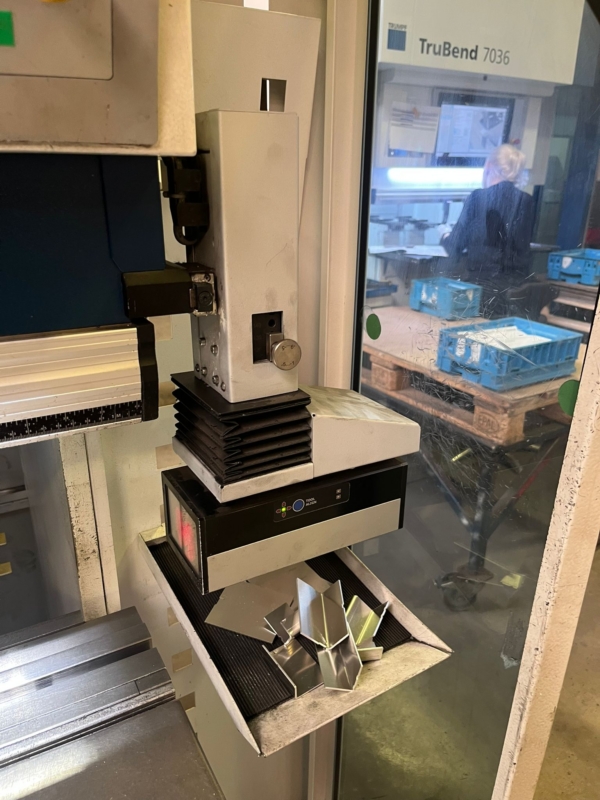

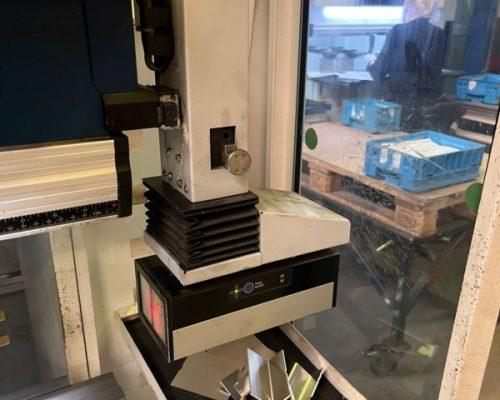

– BendGuard
– Foot switch
– Support console
– First arm bending aid
– Table extension
– Table widening
– Short parking position (190 mm)
– Preparation for AC
| pressure | 36 | t |
| chamfer lenght | 1020 | mm |
| distance between columns | 932 | mm |
| stroke | 120 | mm |
| dayligth | 295 | mm |
| throat | 150 | mm |
| weight of the machine ca. | 2.600 | kg |
4021323
Steuerung: CNC

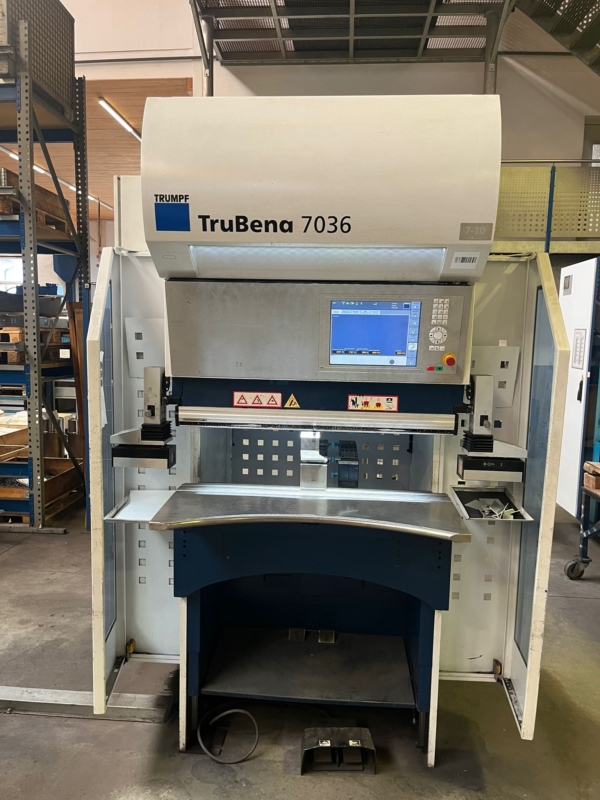

Metal Processing, Sheet metal working / shaeres / bending, Hydr. pressbrake
