Standard equipment:
– Sturdy machine frame as a welded construction in all-steel design
– Pressure beam with high bending strength
– Electro-hydraulic upper drive via proportional valves
– Modern block hydraulics

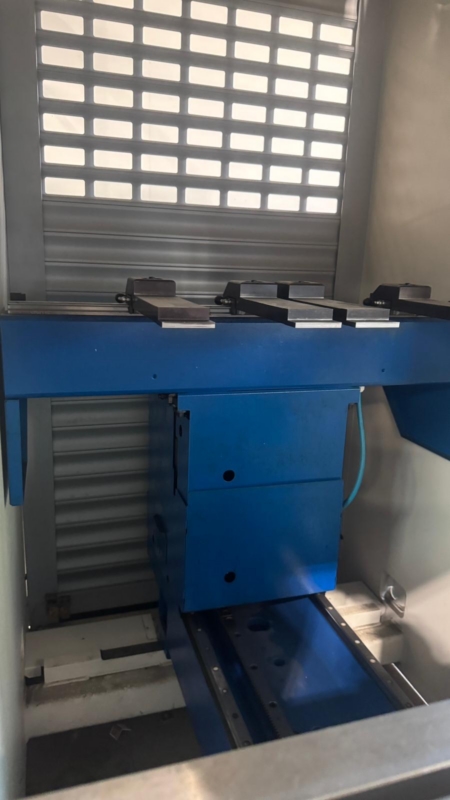

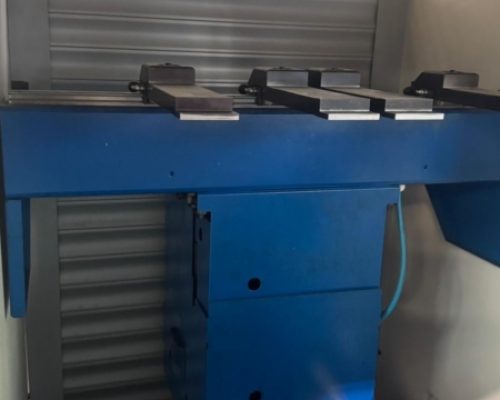

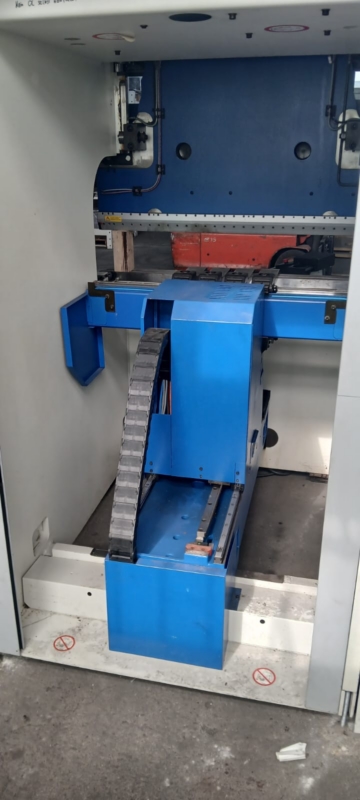

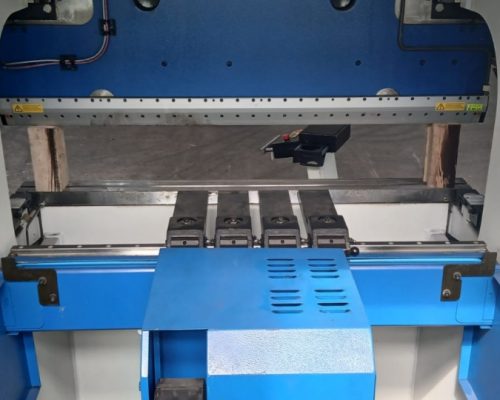

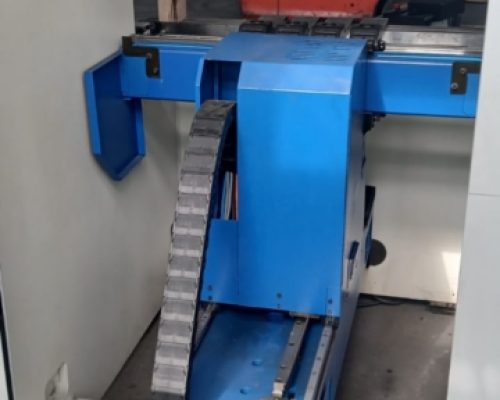

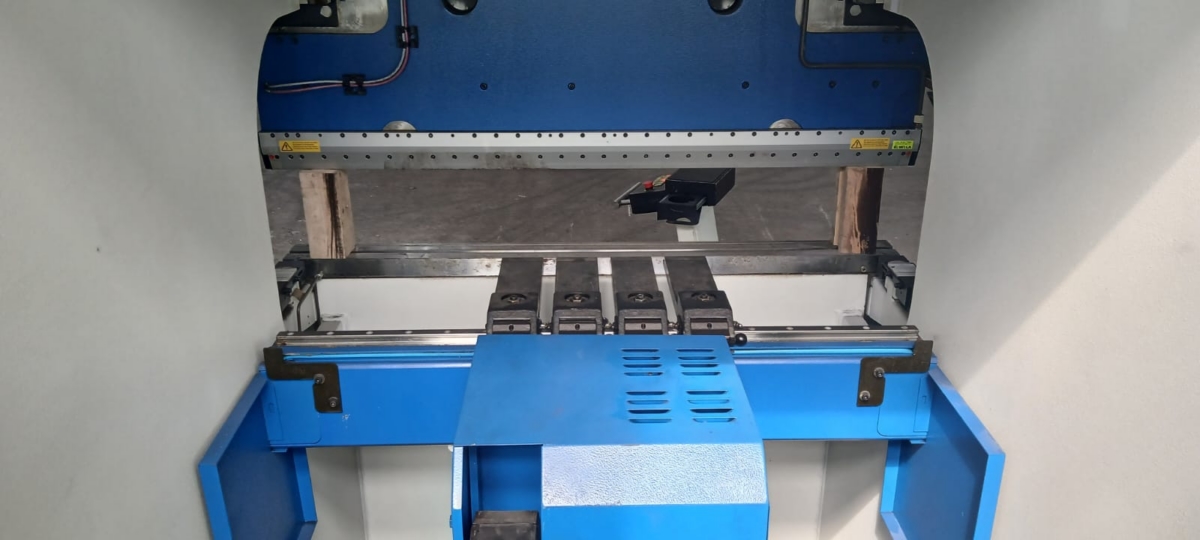

– CNC backgauge with rack and pinion drive for X and R axes
– Safe movement of the stop fingers from the front
– Manual New Standard Clamping II upper tool holder system
– Lower tool holder for EV dies, hydraulic clamping, programmable movement
(2 positions)

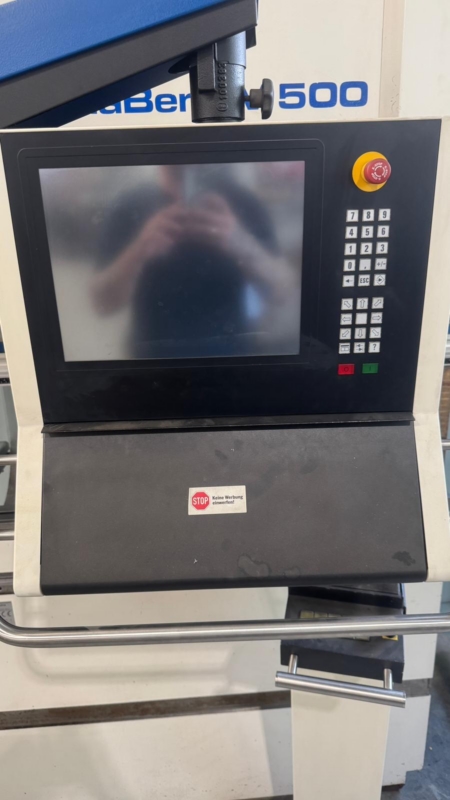

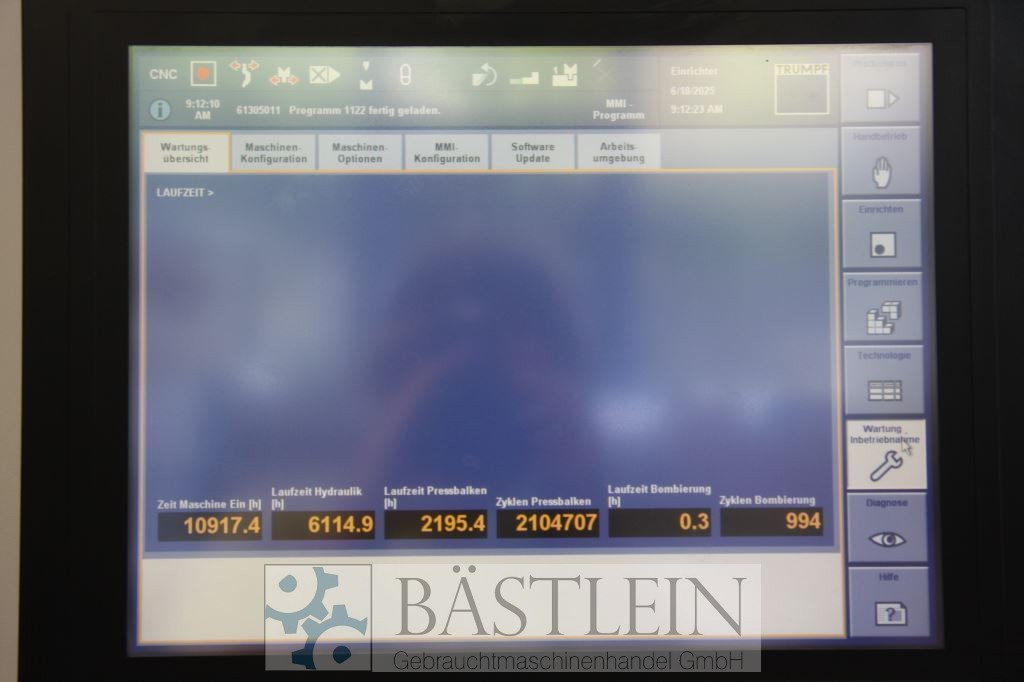

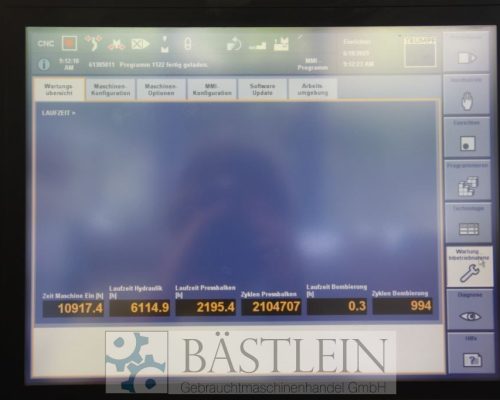

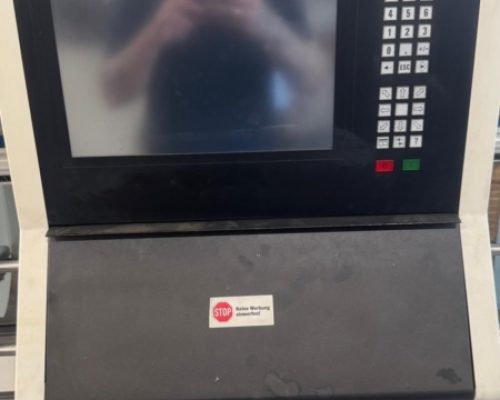

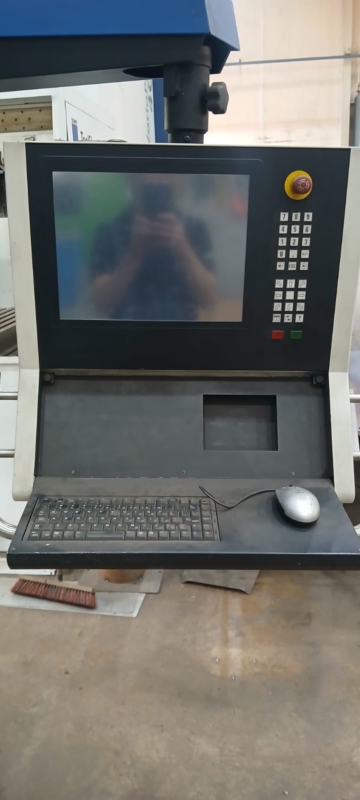

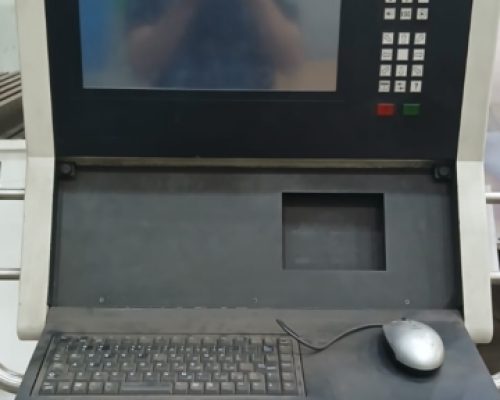

– TRUMPF TASC 6000 control

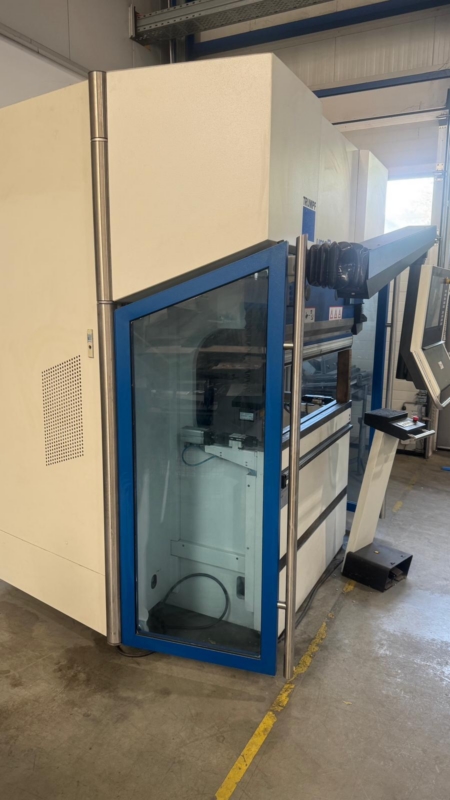

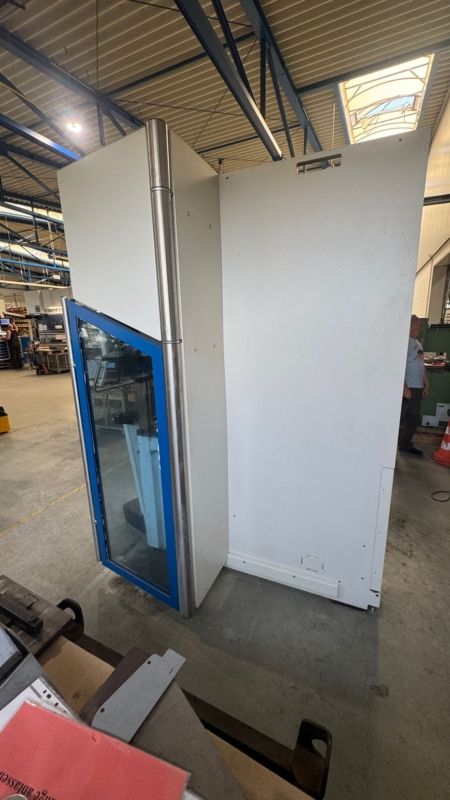

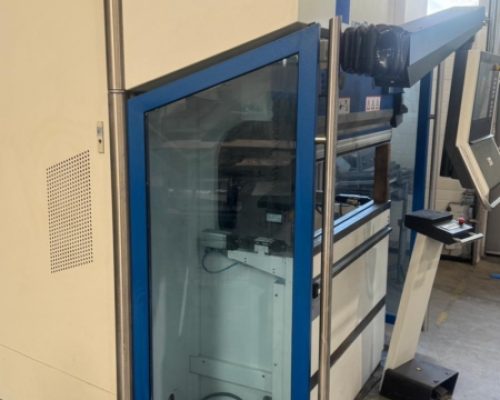

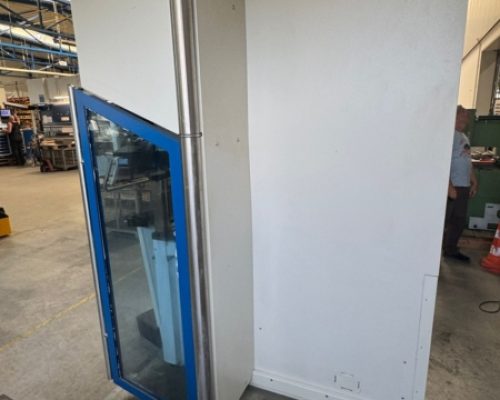

– Safety device consisting of side and rear safety doors
– Switch cabinet air conditioning
– Network-compatible
Special equipment:
– 2 additional stop fingers, attachable
– Upper tool clamping, hydraulic

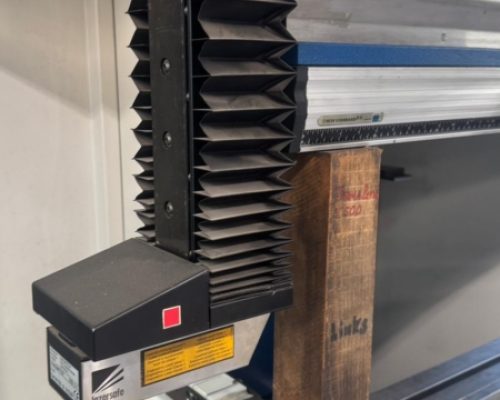

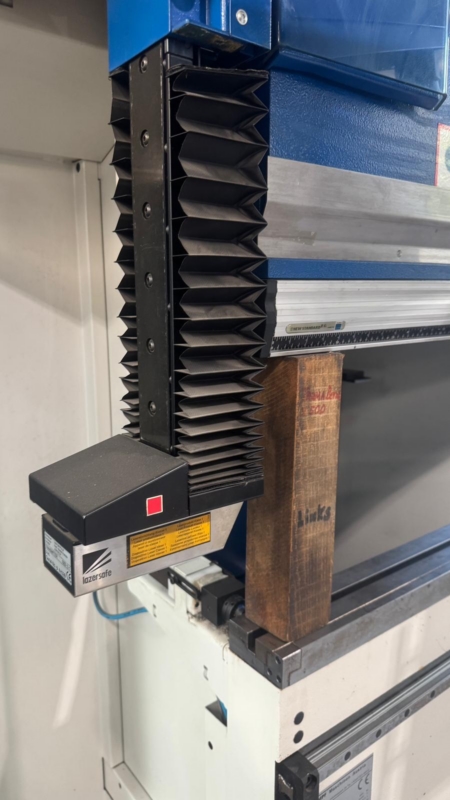

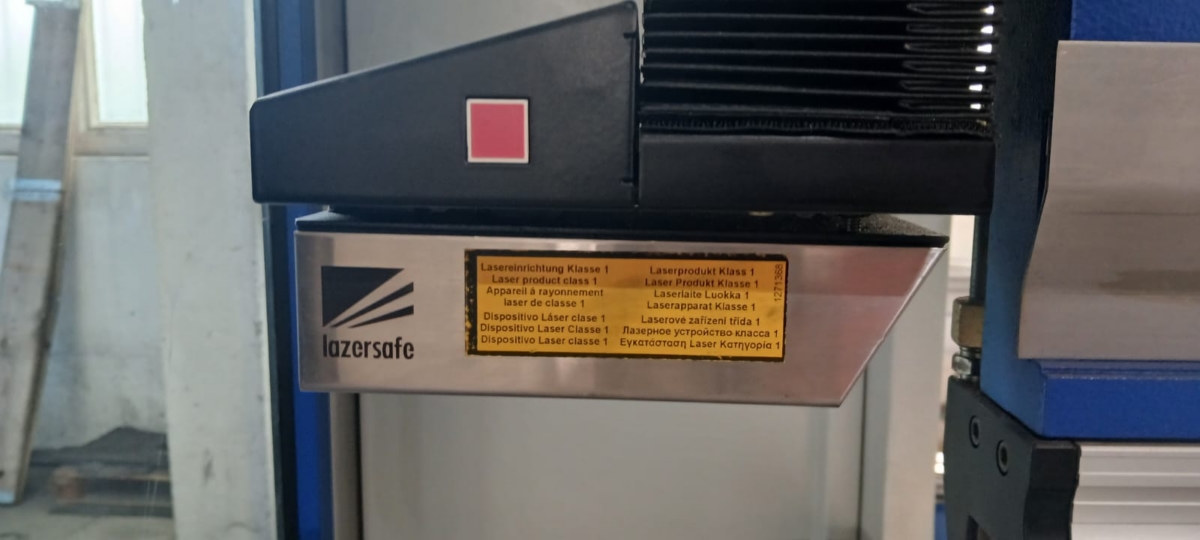

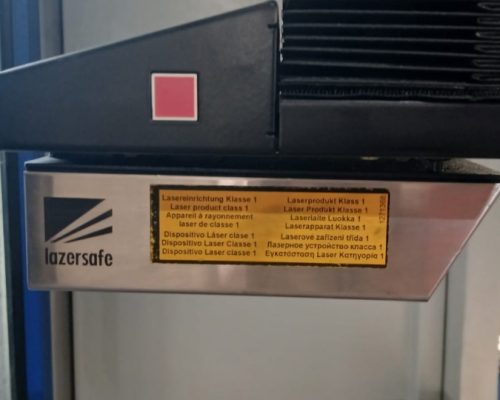

– Bendguard

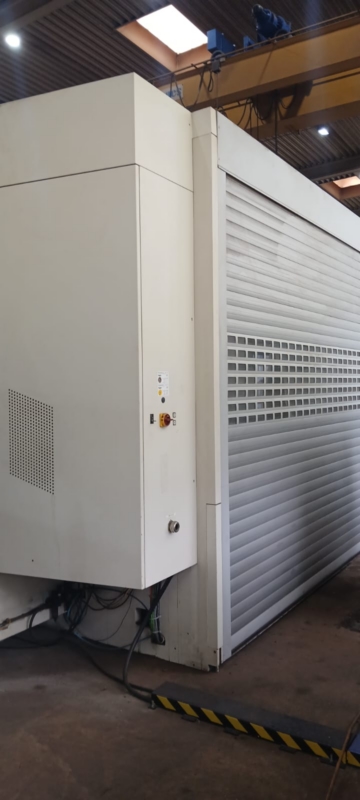

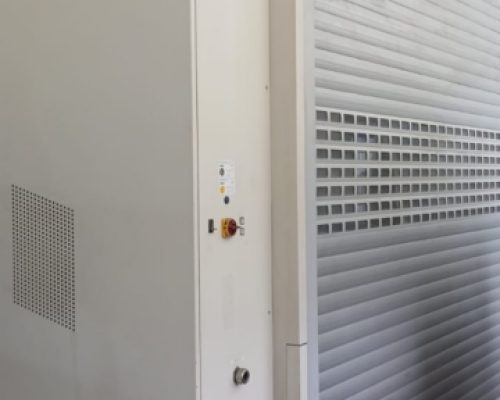

– Roll-up protective cover at rear
– Support console
– Preparation for ACB
| pressure | 50 | t |
| chamfer lenght | 1275 | mm |
| distance between columns | 1040 | mm |
| stroke | 215 | mm |
| useable dayligth | 385 | mm |
| throat | 420 | mm |
| total power requirement | 10 | kVA |
| weight of the machine ca. | 4.900 | kg |
| Overall size | 2200x2000x2400 | mm |
4021288
Steuerung: CNC

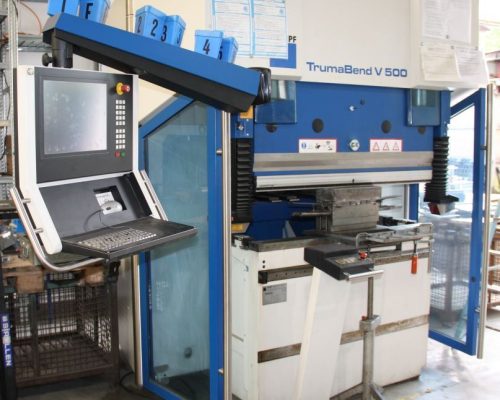

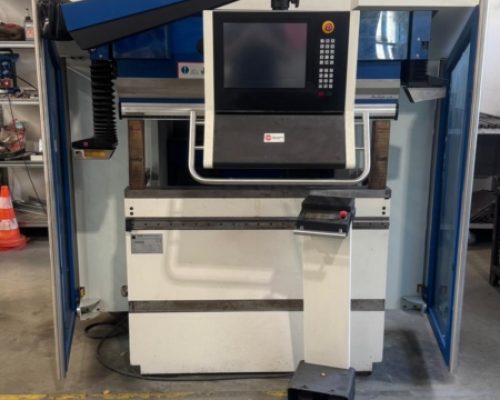

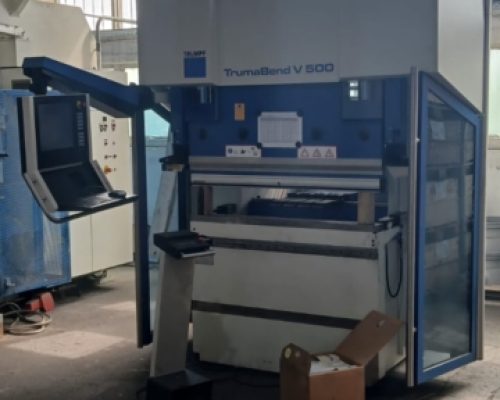

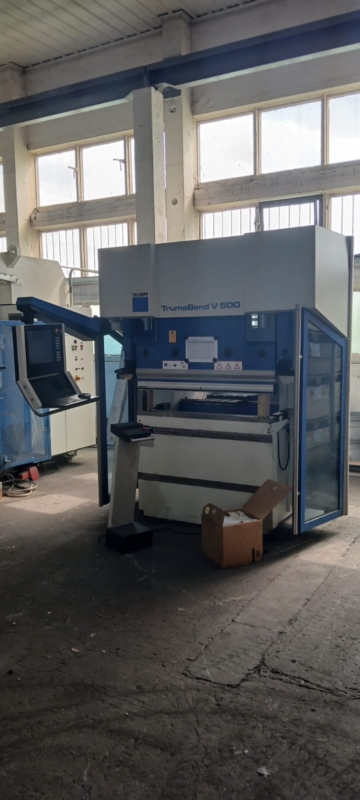

Metal Processing, Sheet metal working / shaeres / bending, Hydr. pressbrake
