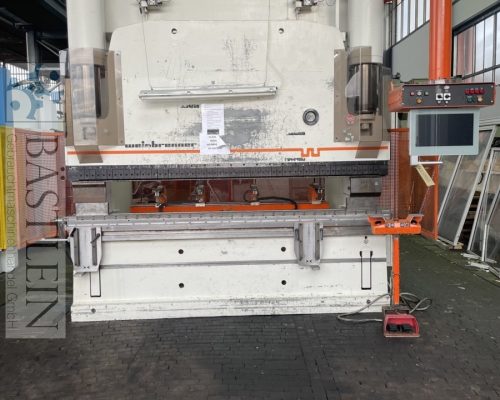

Hydr. pressbrake, WEINBRENNER GP 200/3050

// Zustand: used
// Metal Processing
// Hydr. pressbrake

General data


Stock no.	4020958
Make	WEINBRENNER
Type	GP 200/3050
Year	1992/2023

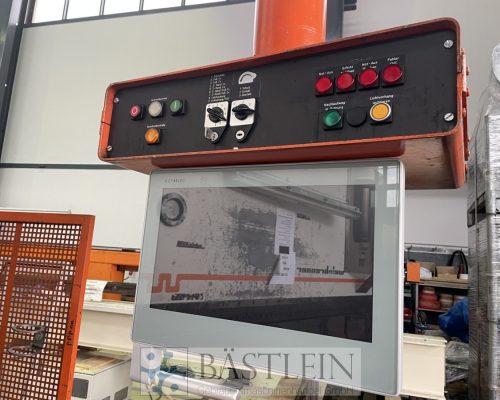

Control	CNC – CYBELEC VisiTouch Pac
Storage location	Günzburg
Country of origin	Germany
Delivery time	kurzfristig – nach Absprache.
Freight basis	Lieferung ab Lager Günzburg.

Technical Details

pressure	200	t
chamfer lenght	3050	mm
distance between columns	2550	mm
Control	CYBELEC VisiTouch Pac
stroke of ram	524	mm
range L-W-H	4200x2200x3700	mm
weight of the machine ca.	17.000	kg

Description

Equipment:
– Control conversion 2023 to CYBELEC VisiTouch Pac

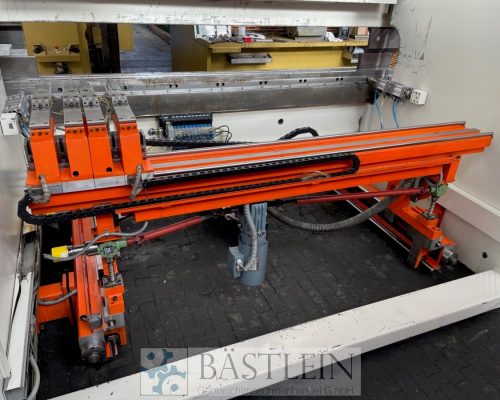

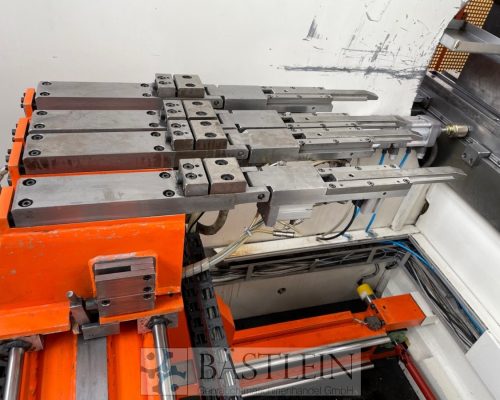

– controlled axes: Y1, Y2, X, R, crowning

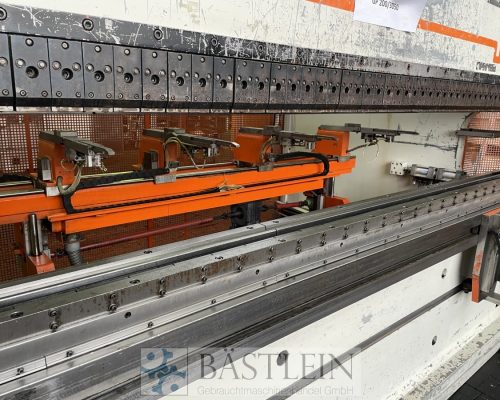

– Hydraulic punch clamping
– Hydraulic die clamping
– 4-stage pneumatic die displacement

pressure	200	t
chamfer lenght	3050	mm
distance between columns	2550	mm
Control	CYBELEC VisiTouch Pac
stroke of ram	524	mm
range L-W-H	4200x2200x3700	mm
weight of the machine ca.	17.000	kg

4020958
Steuerung: CNC CYBELEC VisiTouch Pac
Metal Processing, Sheet metal working / shaeres / bending, Hydr. pressbrake

Link to the machine: https://baestlein.com/en/maschine/hydr-pressbrake-weinbrenner-gp-200-3050/

Machine leasing

For you as a service: Up to 60 months without down payment, without residual value,
personal advice and individual leasing rate calculations are available upon request.
