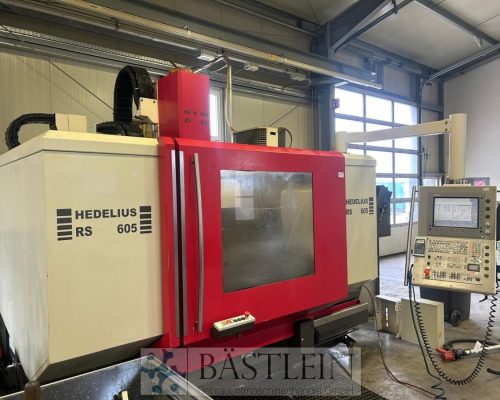

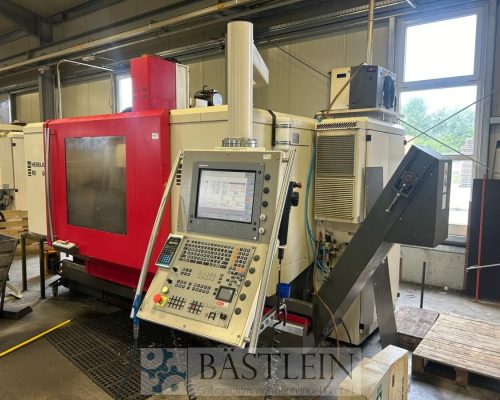

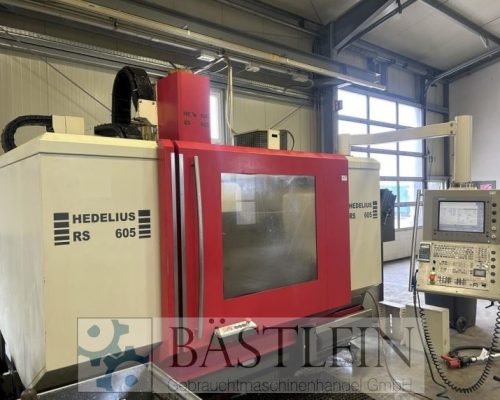

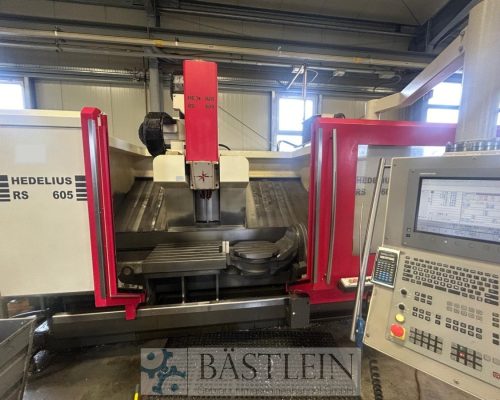

Machining centre, HEDELIUS RS605 K

// Zustand: used
// Metal Processing
// Machining centre

General data


Stock no.	1030293
Make	HEDELIUS
Type	RS605 K
Year	2011
Control	CNC –
Storage location	Location
Country of origin	Czech Republic
Delivery time	kurzfristig – nach Absprache.
Freight basis	Lieferung ab Standort.

Technical Details

x-travel	1200	mm
y-travel	650	mm
z-travel	520	mm
A-axis	+90 / -110	°
C-axis	360
spindle taper	SK 40
turning speeds	30-8000	U/min
power capacity	22	kW
TRAVEL SWIVEL RANGE IN X	500	mm
Fixed machine table travel range in X	570	mm
Swivel rotary table dimensions	520x420	mm
Interfering edge diameter	610	mm
Fixed table dimensions	700x600	mm
dimensions	3600x2650x2800	mm
weight of the machine ca.	8500	kg

Description

Ausstattung:
– 5-Achsen Bearbeitungszentrum Hedelius

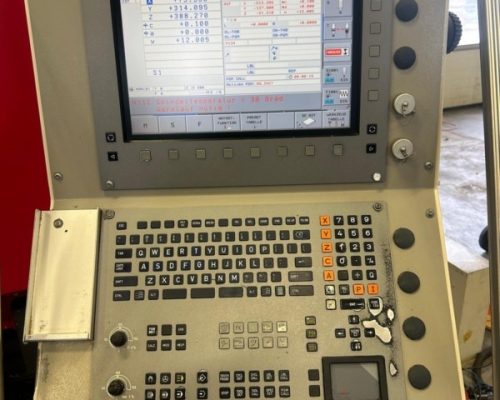

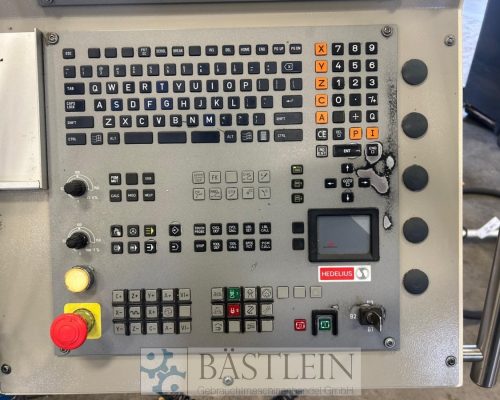

– CNC Steuerung Heidenhain iTNC 530

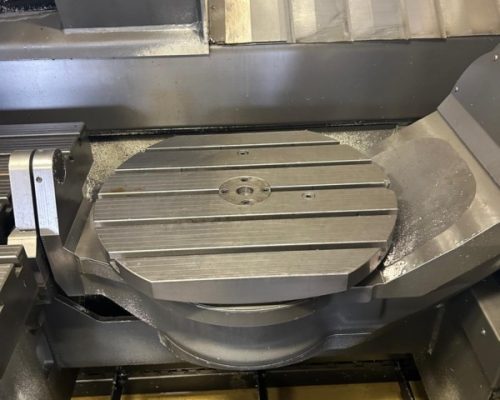

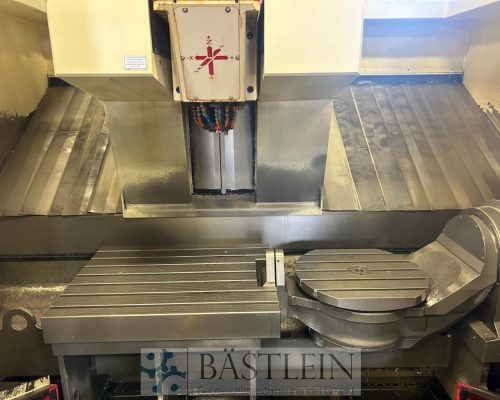

– NC-Dreh-Schwenktisch rechts

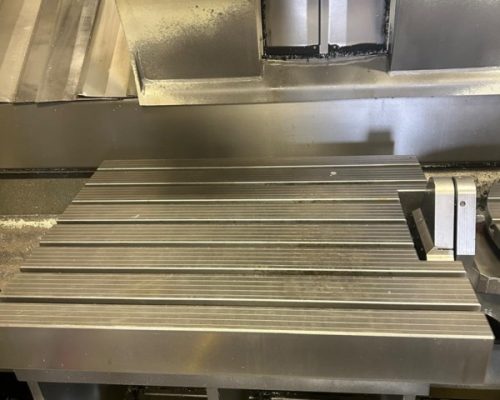

– fest eingebauter Tisch links
– 30-fach Werkzeugwechsler

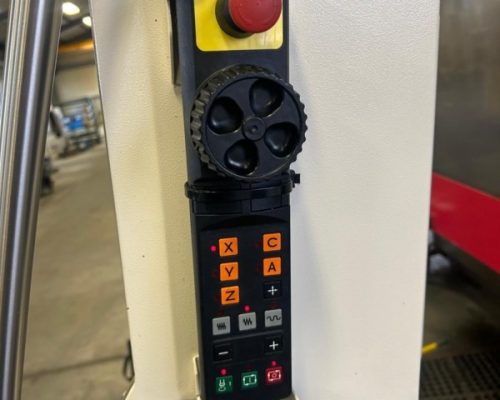

– elektrisches Handrad
– IKZ (20 bar)
– Späneförderer

Youtube-Video-Links:

x-travel	1200	mm
y-travel	650	mm
z-travel	520	mm
A-axis	+90 / -110	°
C-axis	360
spindle taper	SK 40
turning speeds	30-8000	U/min
power capacity	22	kW
TRAVEL SWIVEL RANGE IN X	500	mm
Fixed machine table travel range in X	570	mm
Swivel rotary table dimensions	520x420	mm
Interfering edge diameter	610	mm
Fixed table dimensions	700x600	mm
dimensions	3600x2650x2800	mm
weight of the machine ca.	8500	kg

1030293
Steuerung: CNC
Metal Processing, Machining centre, Machining centre

Link to the machine: https://baestlein.com/en/maschine/machining-centre-hedelius-rs605-k/

Machine leasing

For you as a service: Up to 60 months without down payment, without residual value,
personal advice and individual leasing rate calculations are available upon request.
