Equipment:

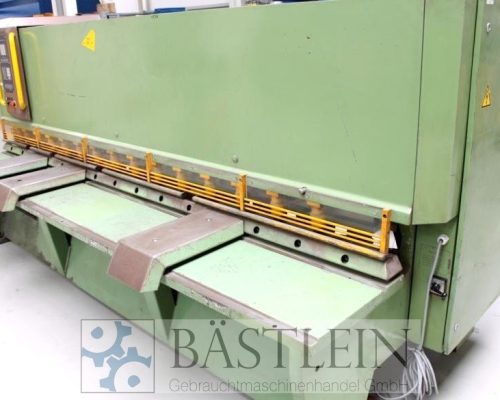

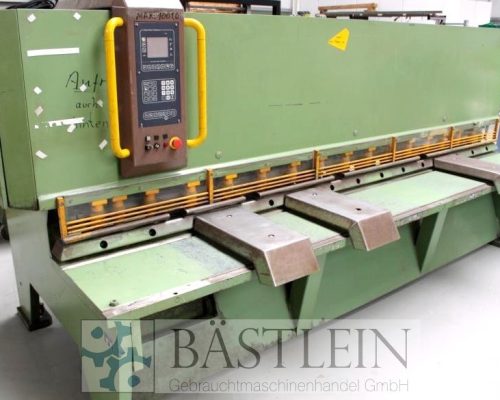

– electro-hydraulic guillotine shear type swing cut

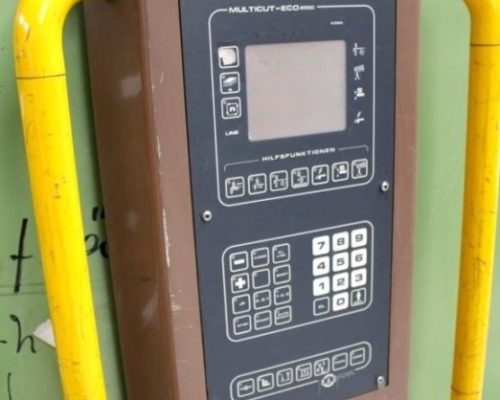

– RAS MULTICUT-ECO 2000 CNC control unit
* movable, from the front
* 3 axes control unit with up to 900 program lines
* Sheet holding device for thin sheet cutting can be switched on
* Including piece and cycle counter
* Operating modes selectable
– CNC electro-motorized back gauge … Travel range 5-1000 mm
* Traversing speed … 180 mm/sec.

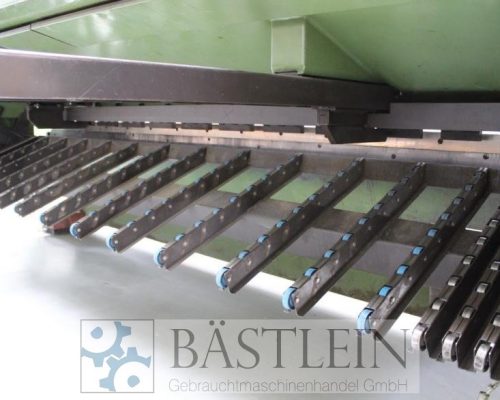

– Front support plates with ball rollers
– central motorized cutting gap quick adjustment
– 1x RAS extra long side stop
– 2x RAS extra long support arms
– 1x free-moving foot switch
– 1x RAS pneumatic sheet holding device for thin sheet cutting
– 1x RAS movable scrap diverter
– 1x RAS extra blade set for guillotine shears
| sheet width | 3190 | mm |
| plate thickness | 6 | mm |
| distance between columns | 3250 | mm |
| cutting angle | 1,2 | ° |
| no. of strokes | 32-75 | Hub/min |
| column arm | 100 | mm |
| back stop - adjustable | 5-1000 | mm |
| table height | 800 | mm |
| oil volume | 150 | l |
| total power requirement | 15 | kW |
| weight of the machine ca. | 6200 | kg |
4011198
Steuerung: konventionell
