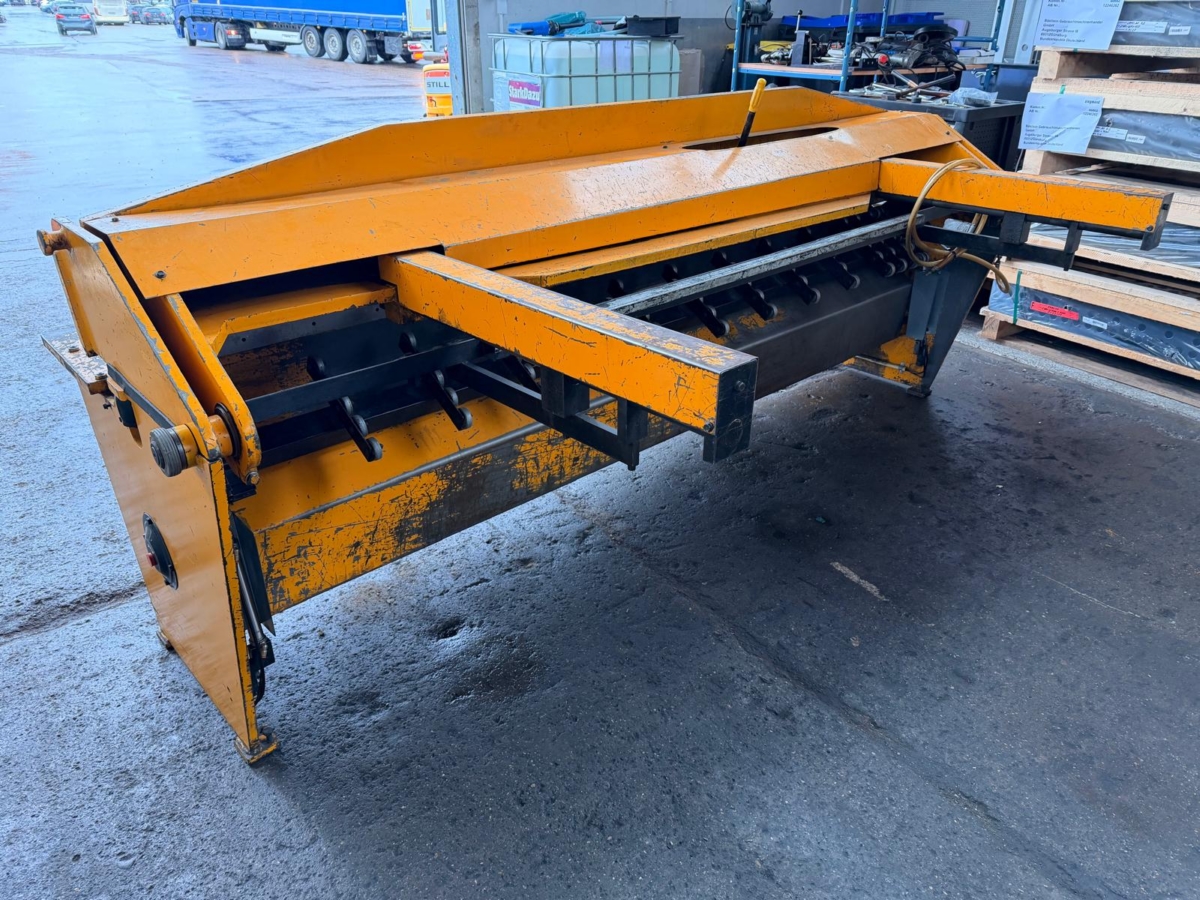

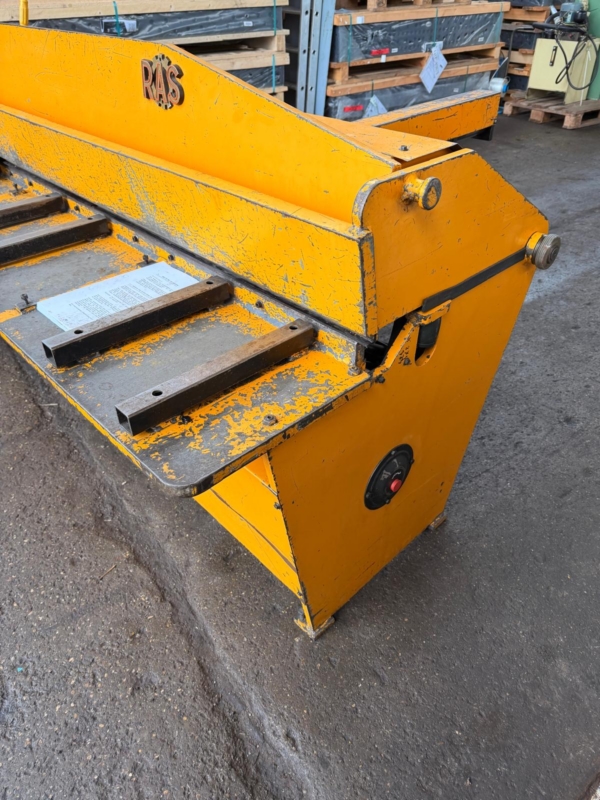

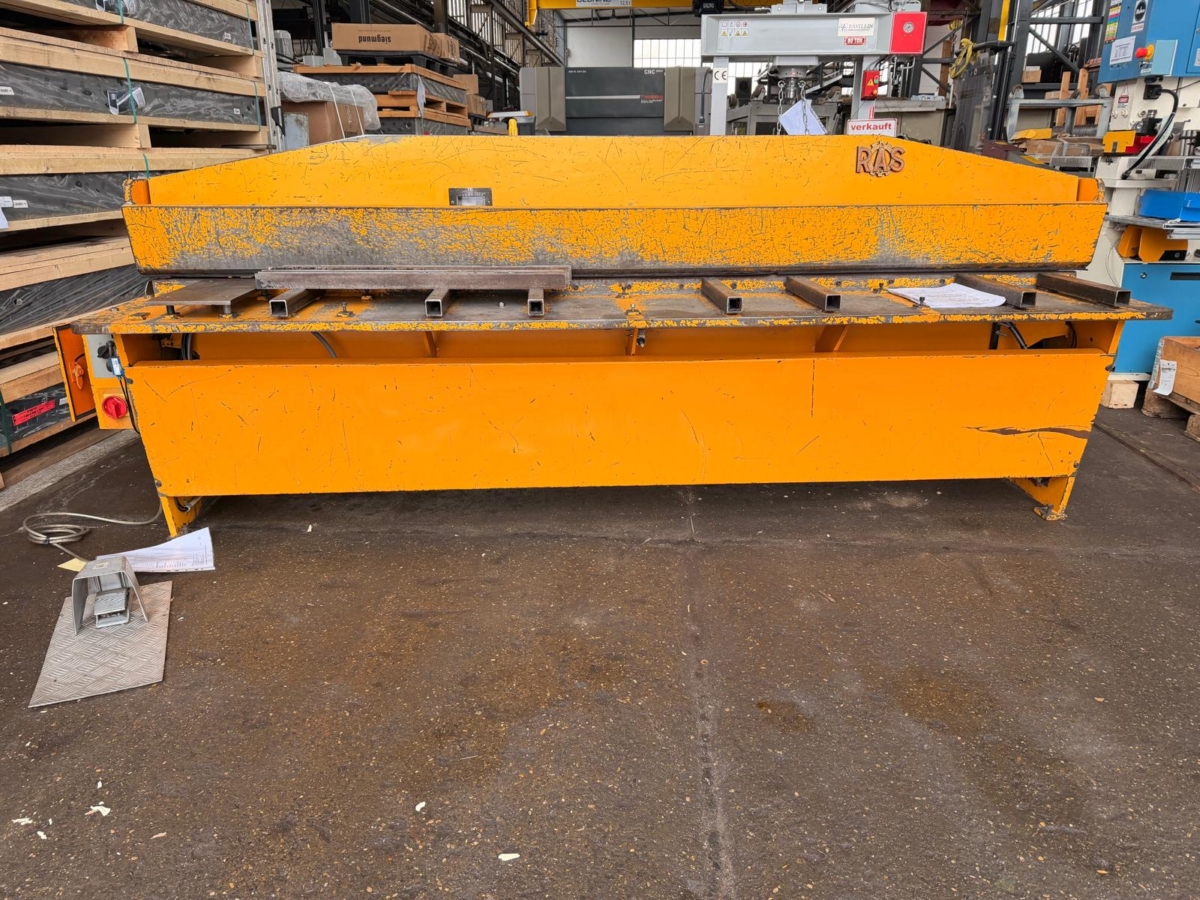

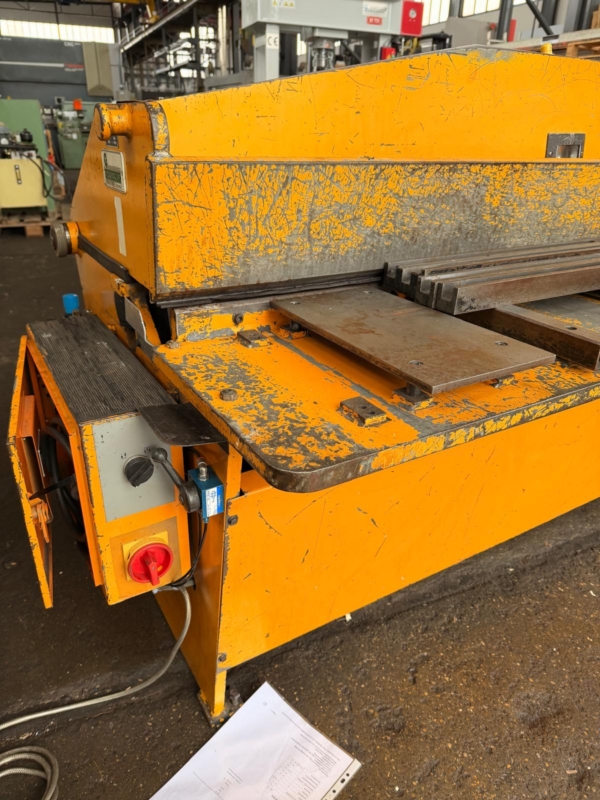

Plate Shear – Mechanical, RAS 82.25

// Zustand: used
// Metal Processing
// Plate Shear - Mechanical

General data


Stock no.	4011126
Make	RAS
Type	82.25
Year	1980
Control	konventionell –
Storage location
Country of origin	Czech Republic
Delivery time	kurzfristig – nach Absprache.
Freight basis	Lieferung ab Lager Günzburg.

Technical Details

sheet width	2540	mm
plate thickness	2	mm
thickness at "Niro-steel"	1,25	mm
no. of strokes	63	Hub/min
cutting angle	1,13	°
table height	750	mm
table width	320	mm
back stop - adjustable	5,0-550	mm
total power requirement	3	kW
weight of the machine ca.	1600	kg

Description

Equipment:
– manual backgauge, with analog display
* Adjustable from the front
* stepless adjustment over the entire travel range
– 1x long side stop
– 3x support arms
– Free-moving foot switch

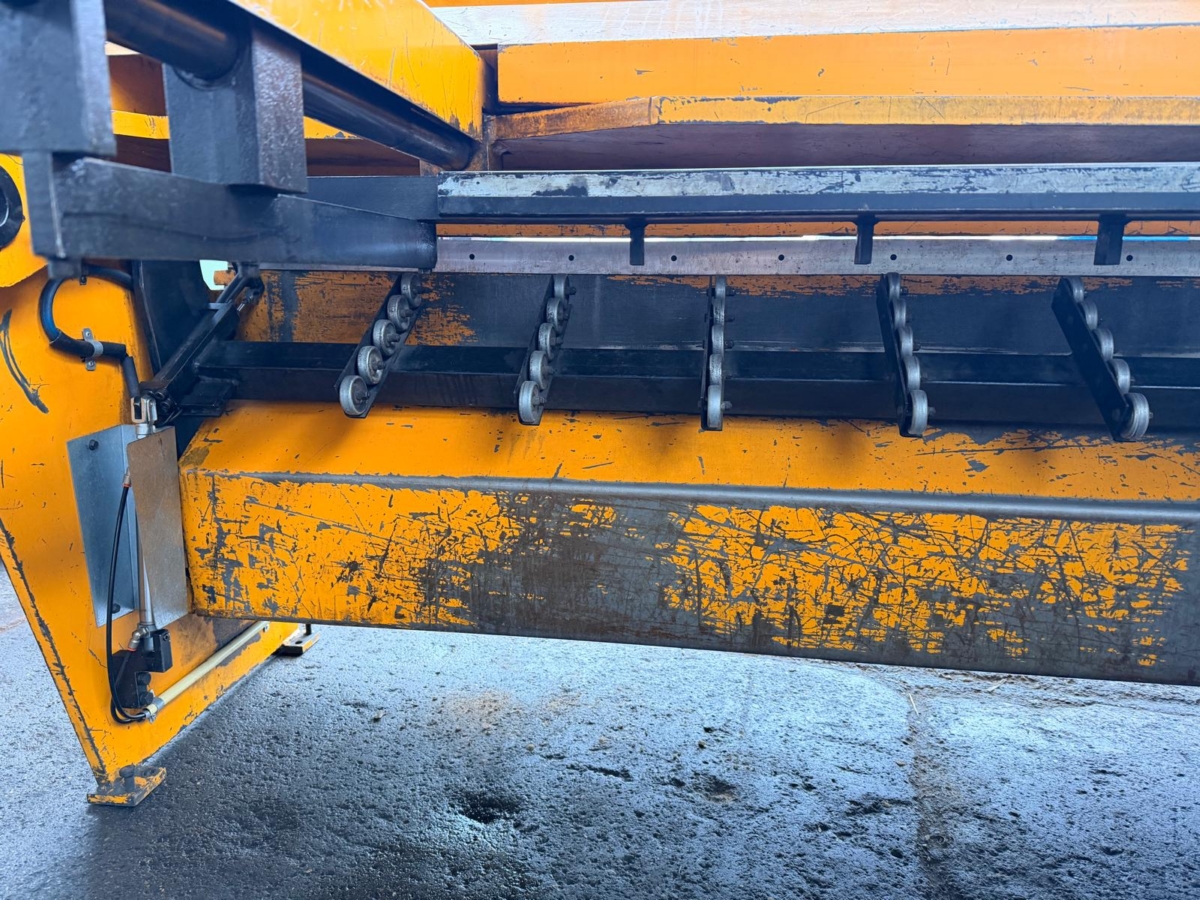

– Sheet holding device for thin sheet blanks

sheet width	2540	mm
plate thickness	2	mm
thickness at "Niro-steel"	1,25	mm
no. of strokes	63	Hub/min
cutting angle	1,13	°
table height	750	mm
table width	320	mm
back stop - adjustable	5,0-550	mm
total power requirement	3	kW
weight of the machine ca.	1600	kg

4011126
Steuerung: konventionell
Metal Processing, Sheet metal working / shaeres / bending, Plate Shear – Mechanical

Link to the machine: https://baestlein.com/en/maschine/plate-shear-mechanical-ras-82-25/
