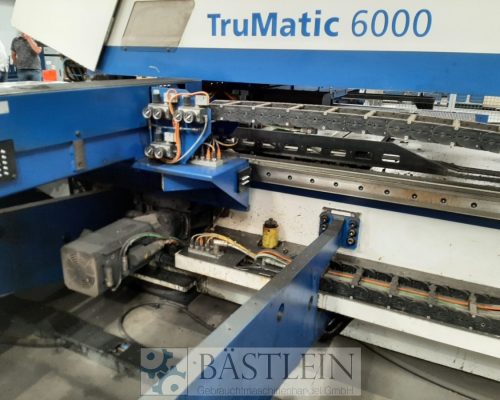

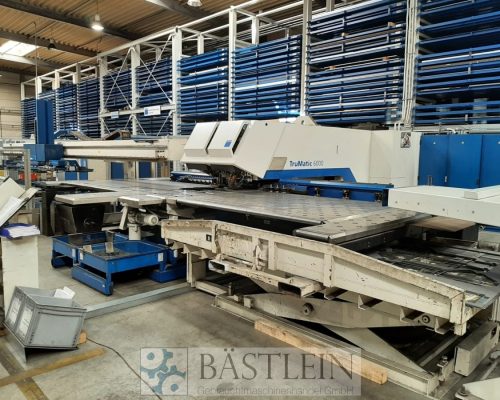

Stamping and Punching Machine, TRUMPF TRUMATIC 6000 L – 1600

Standard Equipment:
– Sturdy C-frame
– Coordinate guide with integrated linear magazine,
21 places for tools and clamping claws
– 2 x clamping claws
– Drives: Maintenance-free three-phase servomotors
– Programmable hold-down device for repositioning

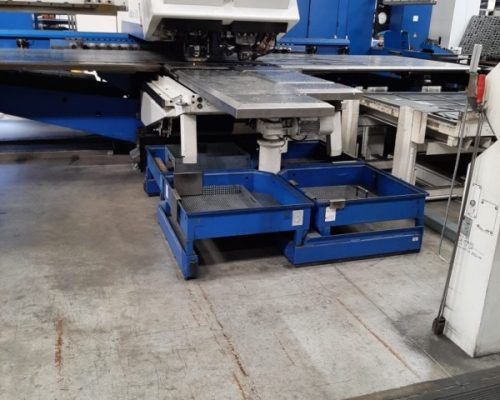

– Sensor-monitored parts chutes 500 x 500 mm for punching and laser station,
Ejection cylinder on laser chute
– 2 x good parts box

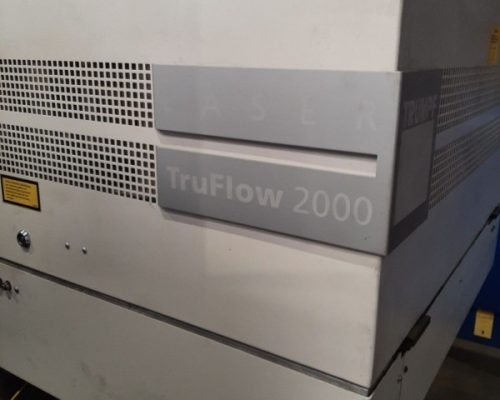

– Laser unit: High-frequency excited CO2 laser TLF 2000,
vibration-insulated, integrated in machine frame,
incl. cooling unit and laser control DIAS 3
– HI-LAS high-pressure cutting
– Fast processing with SprintLas
– ContourLas for producing small holes
– Cutting gas pressure setting programmable
– Laser cutting head: 5″ lens, quick-change device,
APC distance control
– Lens monitoring sensor system
– Additional cutting head with 7.5″ lens

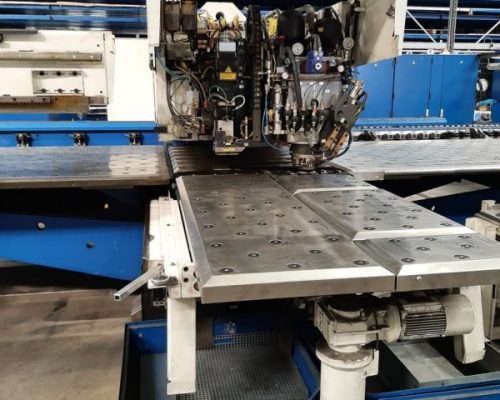

– Punching head: hydr. mono tool holder, 360° rotation for all tools,
automatic tool length compensation, tool spray lubrication,
2 x lubricant containers, punching slug extraction, chip bucket

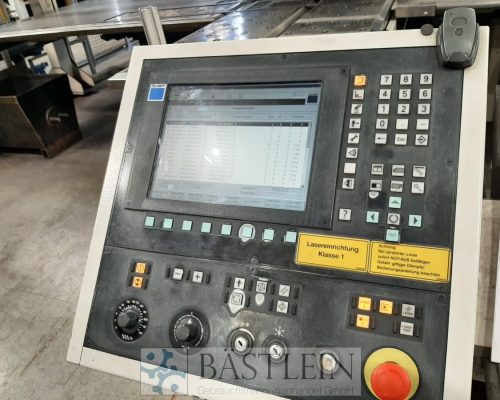

– Sinumerik 840D control, TFT color screen 10.4″, online help,
diagnostic function, 3.5″ floppy disk drive, RJ45 network connection
– Safety: multi-beam light barriers, quick shutdown hydraulics,
extraction and compact dust protection device against stray radiation
on the cutting head

Including:
– TLF 3200 laser incl. 9″ cutting head for stainless steel
– AutoLas Plus
– MultiTool function
– MultiBend function
– Thread forming function
– Sealing/quick beading function
– Rolling technology function
– Softpunch function
– 1 x additional clamping claw
– Chip conveyor with tilting container

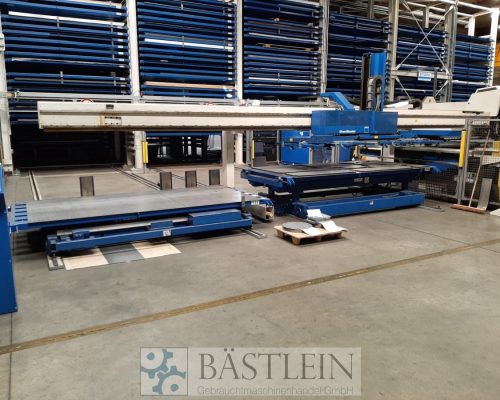

– Brush tables with loading and unloading aid
– Blow-out device for small parts
– BNC network connection instead of RJ45 connection

Operating hours:

Beam On: approx. 13549 h
Laser On: approx. 49949 h
