** Special item – The drill pattern on all side rails is offset downwards by approx. 1 mm. The clamping dimension for angle or table-to-table connection is not specified. **

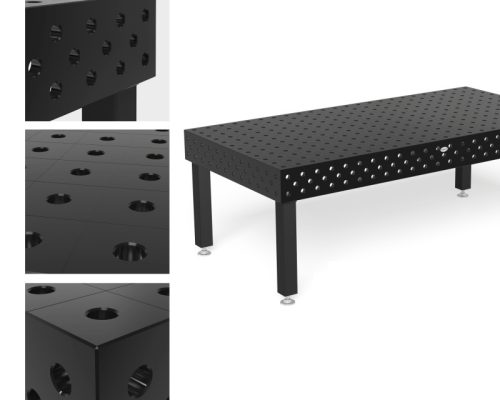

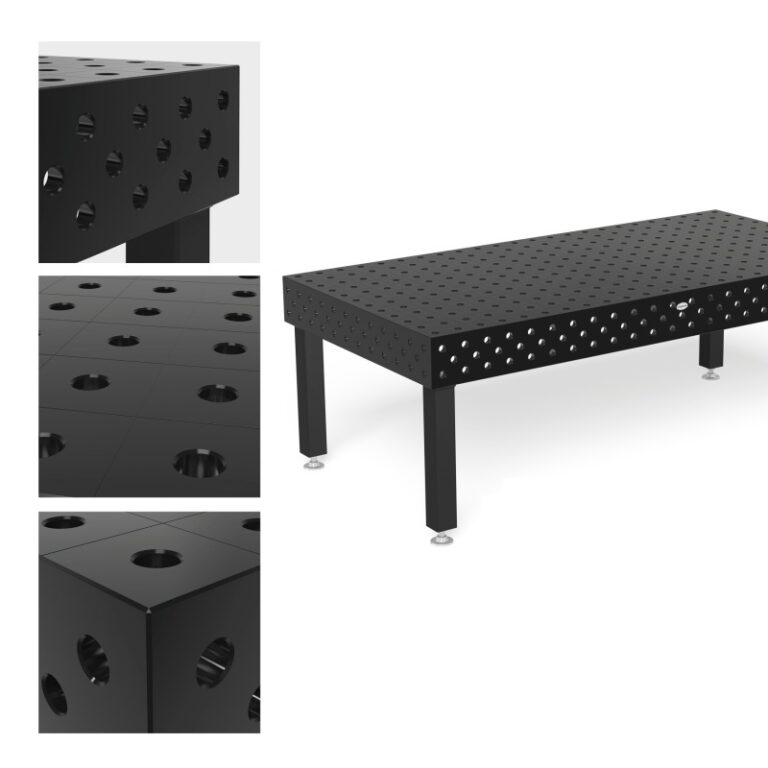

Welding table like 25 years ago, additionally with
plasma nitriding and current table feet .
– high-quality steel S355J2+N + plasma nitriding
– Drill holes in side panel in diagonal grid
– Corners, edges and drill holes bevelled 45
– Construction reinforced by ribs
– incl. base basic equipment 650 mm
| table length | 2400 | mm |
| table width | 1200 | mm |
| table height | 200 | mm |
| bore | 28 | mm |
| 100 x 100 | mm | |
| material thickness | ca. 24,5 - 27 | mm |
| 200 | mm | |
| work height max. | 850 | mm |
| Weight | 980 | kg |
4052036
Steuerung: konventionell
