Stock no. |
4021321 |
|
Make |
EHT |
|
Type |

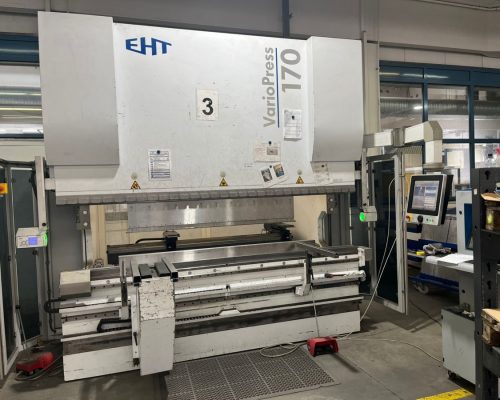

VarioPress 170-30 |
|
Year |
2014 |
|
Control |
CNC – |
|
Storage location |
|
|
Country of origin |
Germany |
|
Delivery time |
kurzfristig – nach Absprache. |
|
Freight basis |
Lieferung ab Standort. |
| pressure | 170 | t |
| chamfer lenght | 3050 | mm |
| distance between columns | 2550 | mm |
| column arm | 405 | mm |
| stroke of ram | 400 | mm |
| distance between table / ram | 320-720 | mm |
| feed down | max. 220 | mm/sec |
| feed bending | max. 10 | mm/sec |
| feed up | max. 220 | mm/sec |
| connected load | 27 | kVA |
| total power requirement | 18,5 | kW |
| weight of the machine ca. | 13.600 | kg |
| pressure | 170 | t |
| chamfer lenght | 3050 | mm |
| distance between columns | 2550 | mm |
| column arm | 405 | mm |
| stroke of ram | 400 | mm |
| distance between table / ram | 320-720 | mm |
| feed down | max. 220 | mm/sec |
| feed bending | max. 10 | mm/sec |
| feed up | max. 220 | mm/sec |
| connected load | 27 | kVA |
| total power requirement | 18,5 | kW |
| weight of the machine ca. | 13.600 | kg |
Link to the machine: https://baestlein.com/en/maschine/hydr-pressbrake-eht-variopress-170-30/
For you as a service: Up to 60 months without down payment, without residual value, personal advice and individual leasing rate calculations are available upon request.
