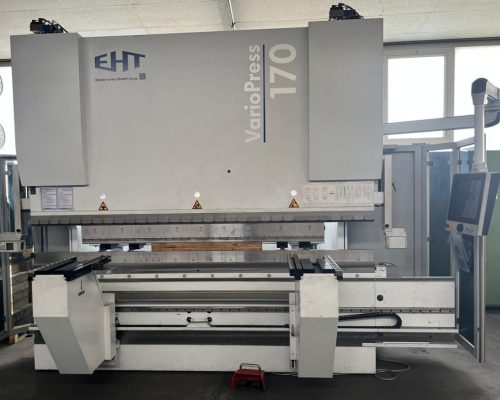

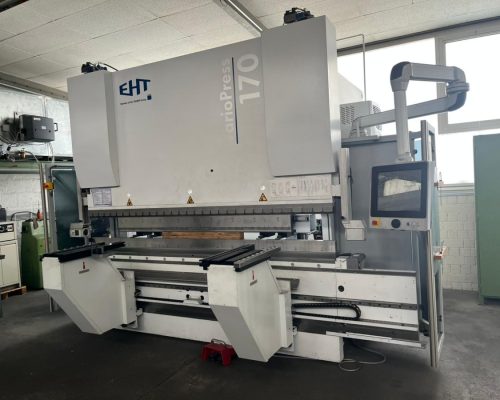

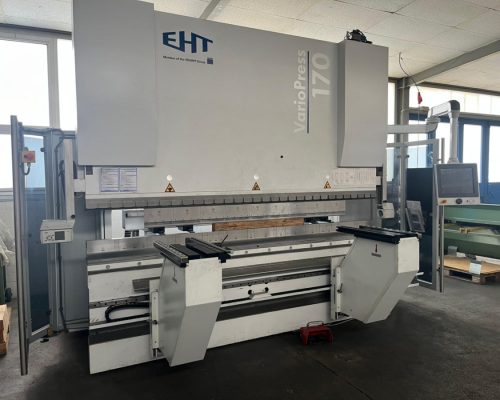

Machine:
– Sturdy machine frame
– Press beam
– Spherical bearing for the press beam with press beam tilt
– Electro-hydraulic top drive
– Block hydraulic system
– Length measuring system (Y-axis) with dynamic spring compensation
– Control cabinet air conditioning unit
– Adapter strip for tool mounting
– 2 stop fingers
Optional equipment:

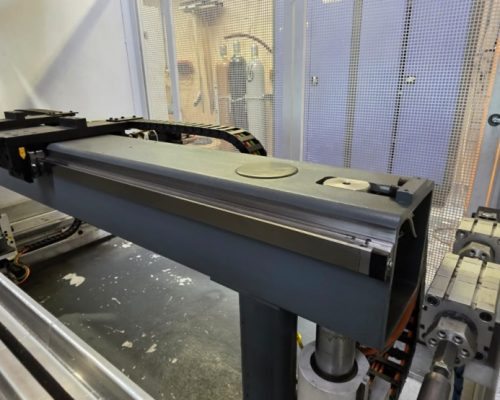

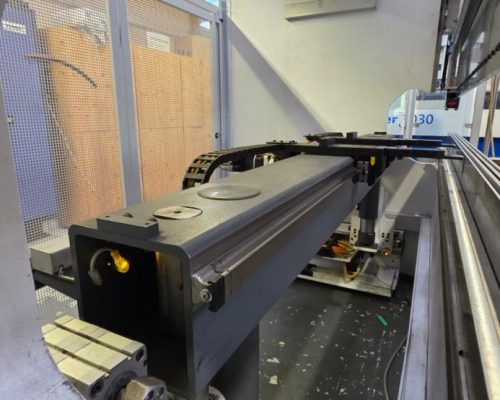

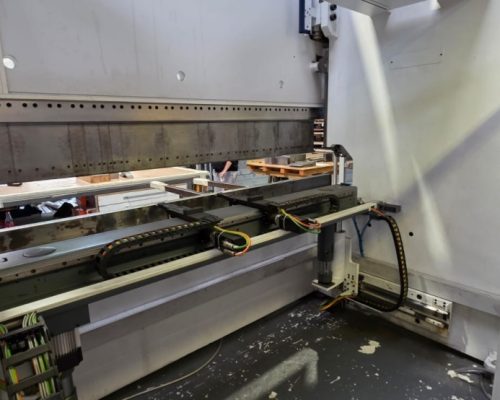

– 2-axis backgauge (XM/XS, R)
– 1 sheet metal holding device 200 daN CNC
– 2 x additional stop fingers 2/4-axis
– 1 x pneumatic upper tool clamping 26 mm

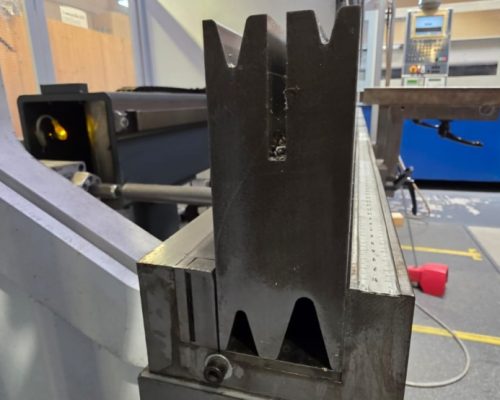

– 1 x pneumatic lower tool clamping 55 mm
– 1 x lower tool shift EHT pneumatic
– 1 x CNC crowning device 3000 kN/m

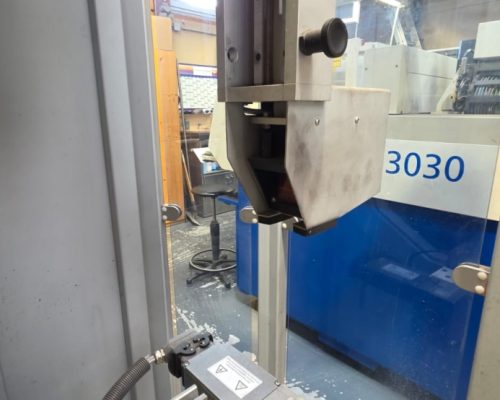

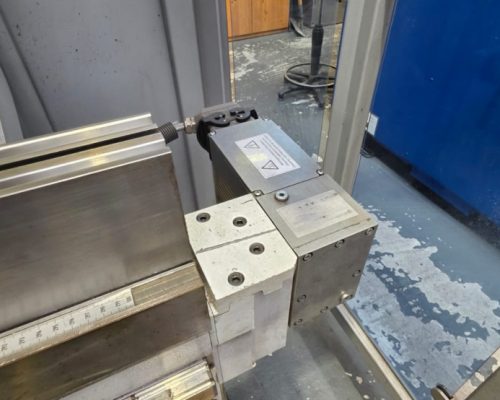

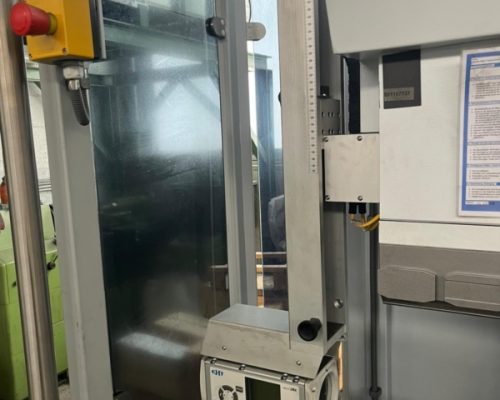

– 1 x Operator Safety Guard PILZ PSENvip Productive

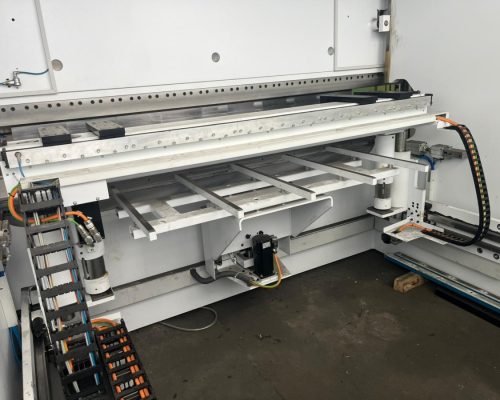

– 2 x Bending aid 1500 N
– 1 x Support strips for bending aid
– 1 x Parking position right, short
– 1 x Special function: fast folding
| pressure | 170 | t |
| chamfer lenght | 3050 | mm |
| distance between columns | 2550 | mm |
| stroke | 400 | mm |
| weight of the machine ca. | 15.300 | kg |
4021356

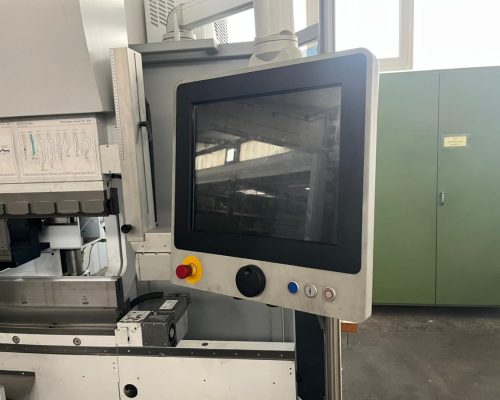

Steuerung: CNC

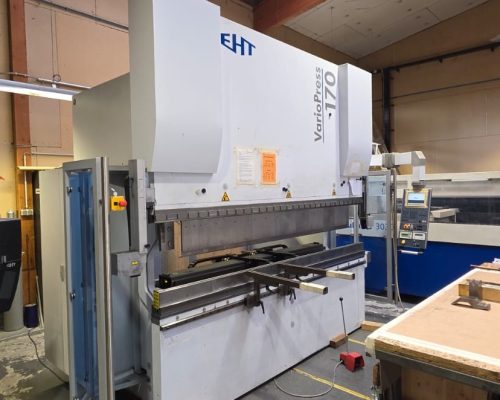

Metal Processing, Sheet metal working / shaeres / bending, Hydr. pressbrake
