Equipment / Accessories:

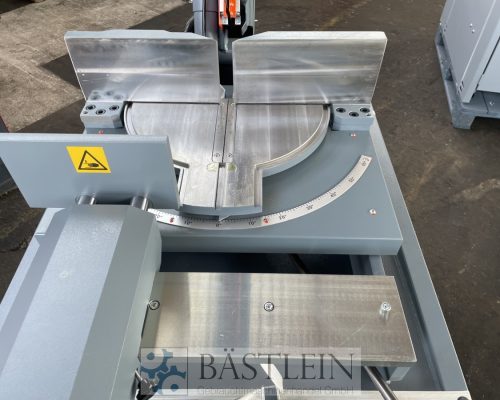

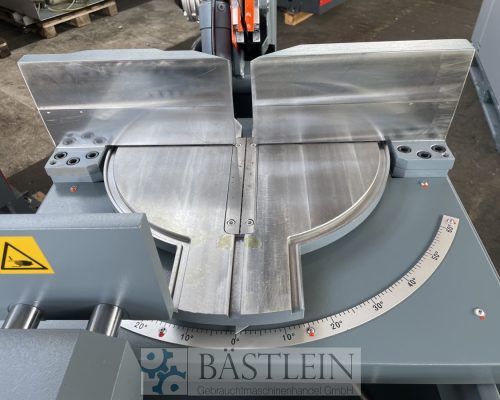

– Fast miter adjustment from 30° – 150° stepless to 0,5 ° accuracy
according to scale. The miter turning point is the point of intersection between saw band and
Material system, thereby no change in the length dimension.
– End stops at 30° + 45° left and 30°+45° right
– Manual material tension. At each angular position of the saw frame is the
Material stretched parallel in 90°
– Cutting pressure reduction by weight of the heavy, torsionally stiff
Sawing frame and fine adjustment depending on the material cross section via hydraulic
damping cylinder
– MEBA micro dosing system complete with spray head
– Machine stand with chip collecting tray
– saw blade drive with limit stop
– Precise saw band carbide roller guide
Additional equipment:
– Hydraulic lifting of the saw frame
| capacity 90 degrees: round | 260 | mm |
| capacity 90 degrees: flat | 300x260 | mm |
| capacity 45 degrees: round | 200 | mm |
| capacity 45 degrees: flat | 180x180 | mm |
| 130 | mm | |
| 120x120 | mm | |
| min. dia. | 5 | mm |
| work height max. | 900 | mm |
| total power requirement | 1,1/1,8 | kW |
| rest piece length | 25 | mm |
| 35/75 | m/min | |
| dimensions of saw-band | 3350x27x0,9 | mm |
| weight | 710 | kg |
5010932
Steuerung: konventionell
Metal Processing, Saws, Band Saw
