Standard equipment:

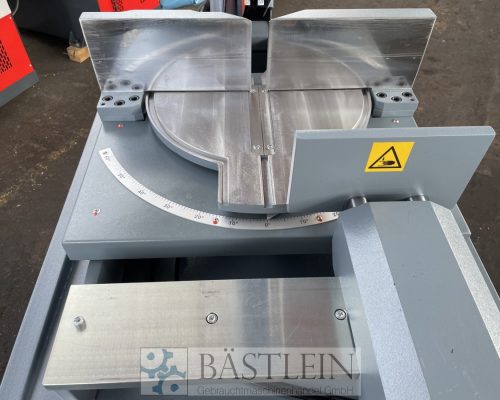

– Fast miter adjustment by scale
– miter turning point is the point of intersection between saw blade and material system,
no changes in the length measure
– Manual material tension – at each angular position of the saw frame is the
Material stretched parallel in 90 °
– Cutting pressure reduction by weight of the heavy, torsionally stiff
Sawing frame and fine adjustment depending on the material cross section via hydraulic
damping cylinder

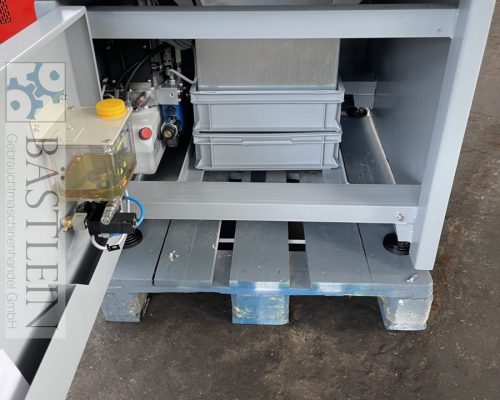

– Machine stand with chip collecting tray
– saw blade drive with limit stop
– Precise saw band carbide roller guide
Additional standard equipment 260 DG-HS:
– Hydraulic lifting of the saw frame
– Hydraulic clamping of the saw frame
– rapid traverse lowering to upper edge of material
| dimensions of saw-band | 3350x27x0,9 | mm |
| capacity 90 degrees: round | 260 | mm |
| capacity 90 degrees: flat | 300x260 | mm |
| capacity 45 degrees: round | 200 | mm |
| capacity 45 degrees: flat | 180x180 | mm |
| 130 | mm | |
| 120x120 | mm | |
| 25 | mm | |
| min. dia. | 5 | mm |
| work height max. | 900 | mm |
| 35/75 | m/min | |
| weight | 710 | kg |
5010933
Steuerung: konventionell
Metal Processing, Saws, Band Saw
