Equipment / Accessories:
– Fast miter adjustment from 30° – 150° stepless, digital Miter indication to 0.1°.
– Manual material tension. At each angular position of the saw frame is the
Material tightened parallel in 90°.

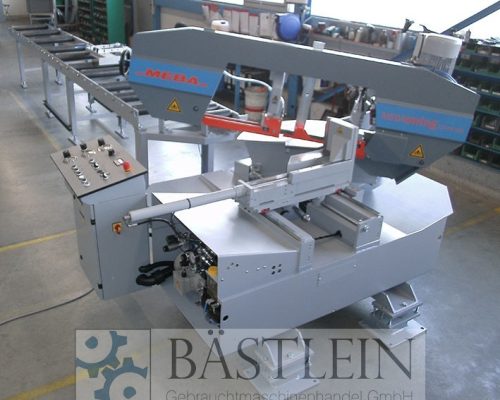

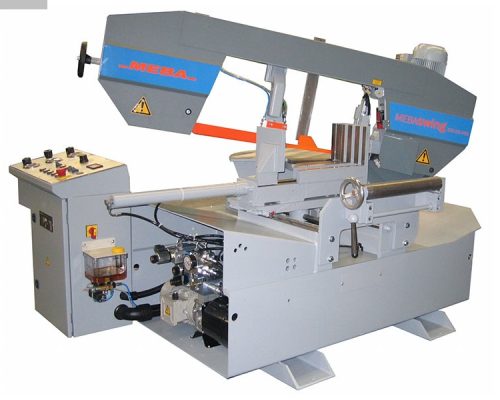

– MEBA – High performance package “HSS” version – Hydraulic lifting and lowering
the saw frame and hydraulic clamping of the sawing material
Stepless hydraulic cutting pressure and feed regulation
Display lowering speed over scale. Display section via pressure gauge.
Rapid traverse reduction of the saw frame via pushbutton to material edge
– Frequency controlled AC drive 15-150 m / min – 3 kW
– Hydraulic material full lift voltage
– Machine stand with chip collecting tray
– Sägebandantieb with limit switch
– Precise saw band carbide roller guide, saw blade brush
– Complete coolant device with electric submersible pump
| 35/75 | m/min | |
| sawband speed | 15-150 | m/min |
| dimensions of saw-band | 4200x34x1,1 | mm |
| capacity 90 degrees: round | 325 | mm |
| capacity 90 degrees: flat | 500x300 | mm |
| 300 | mm | |
| 300x300 | mm | |
| 200 | mm | |
| 200x200 | mm | |
| 300 | mm | |
| 300x300 | mm | |
| 85 | mm | |
| 260 | mm | |
| min. dia. | 5 | mm |
| work height max. | 750 | mm |
| total power requirement | 3,0 | kW |
| dimensions | 1450x2200x1400 | mm |
5010690
Steuerung: konventionell
Metal Processing, Saws, Band Saw
