Standard equipment:

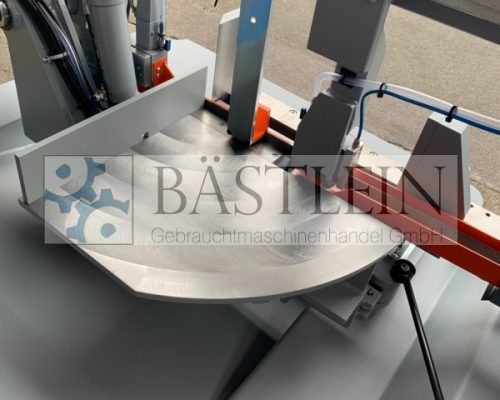

– Fast miter adjustment from 90° to 30° stepless to 0.5° accuracy
according to scale. The miter turning point is the point of intersection
between saw band and
Material system, thereby no change in the length dimension
– At each angular position of the saw frame, the material is parallel in 90°
tightened
– Complete coolant device with electric submersible pump
– Machine stand with chip collecting tray
– Precise saw band carbide roller guide, saw blade brush
– 1 saw blade on machine 4-6 ZpZ

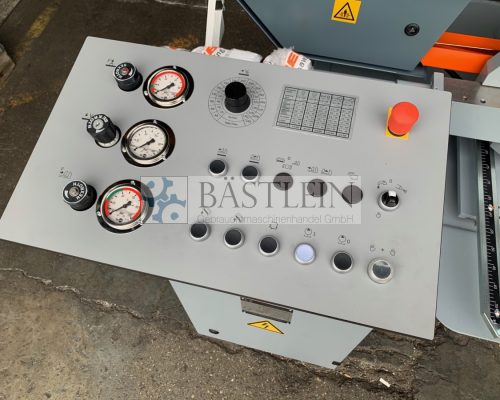

– MEBA high performance package version “HSS”: Hydraulic lifting and lowering
of the
Sawing frame and hydraulic clamping of the sawing material. stepless
hydraulic cutting and feed regulation. Display lowering speed
about scale. Display of cutting pressure via pressure gauge. Rapid traverse
reduction of the
Sawing frame via pushbutton to material edge
– Frequency-controlled AC drive 15-150 m / min, 3 kW
– Hydraulic material full lift voltage
– Hydraulic lifting and lowering of the saw frame

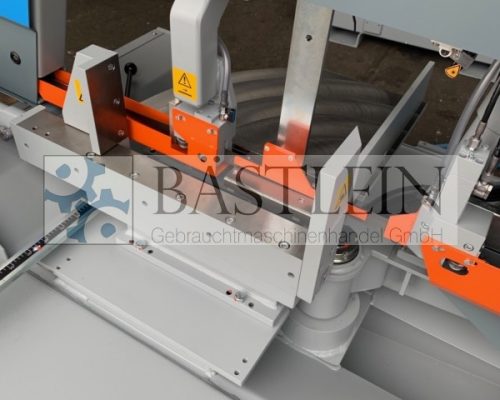

– Hydraulic clamping of the material
| capacity 90 degrees: round | 325 | mm |
| capacity 90 degrees: flat | 500 x 300 | mm |
| capacity 45 degrees: round | 300 | mm |
| capacity 45 degrees: flat | 300 x 300 | mm |
| 200 | mm | |
| 200 x 200 | mm | |
| dimensions of saw-band | 4200 x 34 x 1,1 | mm |
| 60 | mm | |
| 165 | mm | |
| min. dia. | 5 | mm |
| work height max. | 750 | mm |
| total power requirement | 3 | kW |
| 15-150 | m/min | |
| weight | 910 | kg |
| dimensions | 1300 x 2050 x 1400 | mm |
5010821
Steuerung: Sonstige
Metal Processing, Saws, Band Saw
