– with semi-automatic lowering

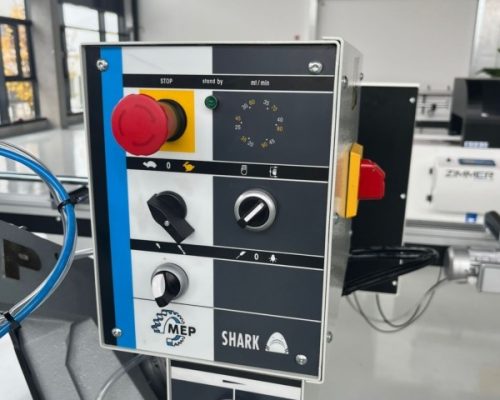

– The CUT CONTROL SYSTEM allows semi-automatic lowering of the
Saw bow by the weight of the saw head
– The lowering speed is infinitely regulated. Single cuts can do so
be carried out with uniform feed

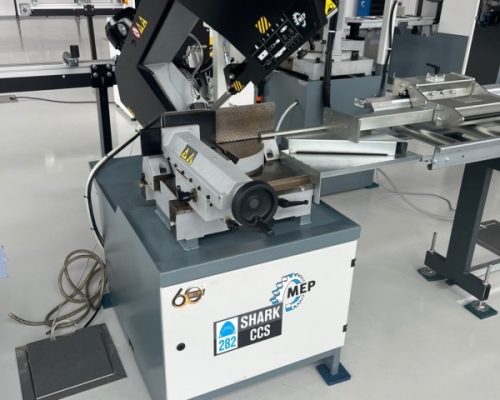

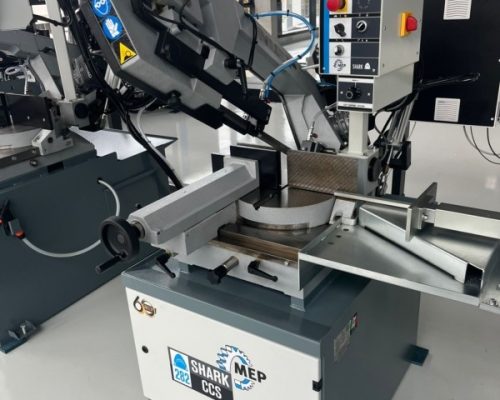

– The SHARK 282 CCS has a turntable for double-sided miter. The cut
always takes place in the same groove
| dimensions of saw-band | 2950x27x0,9 | mm |
| 2 speeds | 36/72 | m/min |
| Vice opening | 285 | mm |
| capacity 90 degrees: round | 250 | mm |
| capacity 90 degrees: square | 220 | mm |
| capacity 90 degrees: flat | 280x220 | mm |
| capacity 45 degrees: round | 230/200 | mm |
| capacity 45 degrees: square | 200/170 | mm |
| capacity 45 degrees: flat | 220x200/200x140 | mm |
| capacity 60 degrees: round | 120 | mm |
| capacity 60 degrees: square | 80 | mm |
| capacity 60 degrees: flat | 140x100 | mm |
| output | 1,5 / 1,8 | kW |
| Weight | 440 | kg |
| dimensions | 1700x1000x1650 | mm |
10049
Steuerung: Sonstige
Metal Processing, Saws, Band Saw
