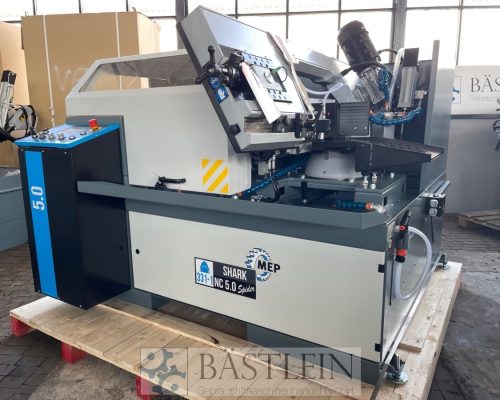

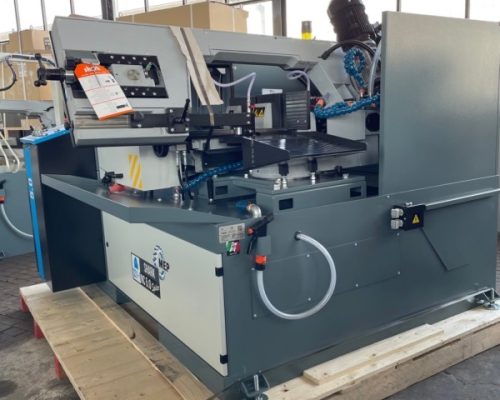

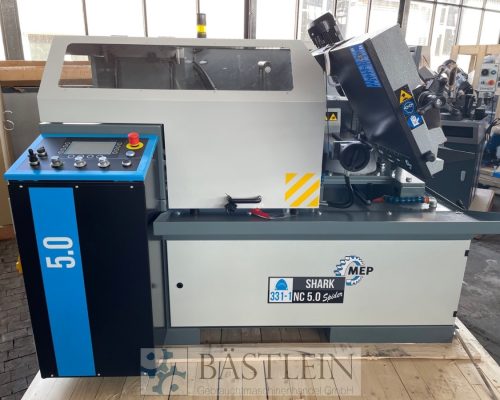

Electro-hydraulic fully automatic band saw with additional, semi-automatic
Function, for cuts from 0 ° to 60 ° left.

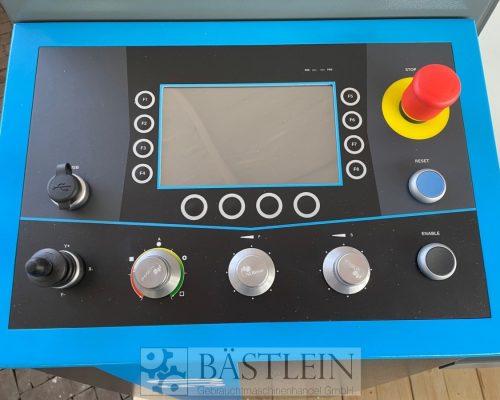

Compact machine with the new Windows “CE” based MEP-50 controller
and 7 “touch-screen display for managing all machine parameters.
Easy operation and control of all cutting parameters in real time.

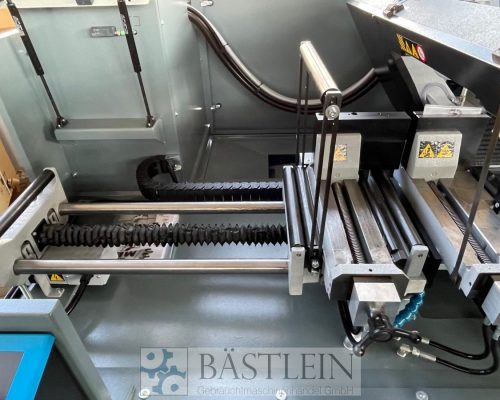

Material feed with stepper motor via ball screw, which are mounted on opposite ball bearings;
Single stroke 600 mm – repeatable to saw any length. Simple programming – Enter cutting length and quantity and press “START”.
– Electronic band tension control
– Automatic monitoring of the cutting load by a servo-valve mounted directly on the cylinder
– Rotation control of the belt with immediate stop in case of a blocked saw band

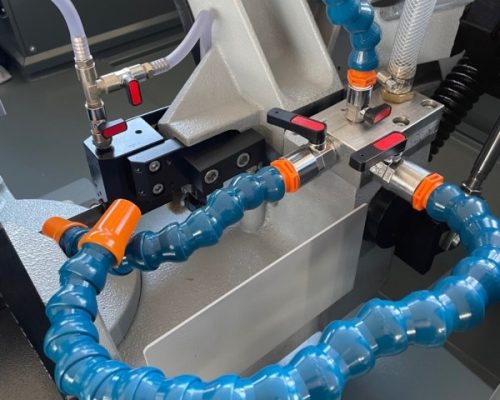

Späneräumbürste and emulsion coolant pump as standard.
| dimensions of saw-band | 3650x27x0,9 | mm |
| speed | 15/100 | m/min |
| capacity 90 degrees: round | 280 | mm |
| capacity 90 degrees: square | 260 | mm |
| capacity 90 degrees: flat | 330x260 | mm |
| capacity 45 degrees: round | 260 | mm |
| capacity 45 degrees: square | 250 | mm |
| capacity 45 degrees: flat | 270x200 | mm |
| capacity 60 degrees: round | 180 | mm |
| capacity 60 degrees: square | 170 | mm |
| capacity 60 degrees: flat | 170x170 | mm |
| total power requirement | 2,2 | kW |
| weight | 1240 | kg |
| vice | 340 | mm |
| dimensions | 2020x2040x1740 | mm |
5010819
Steuerung: NC
