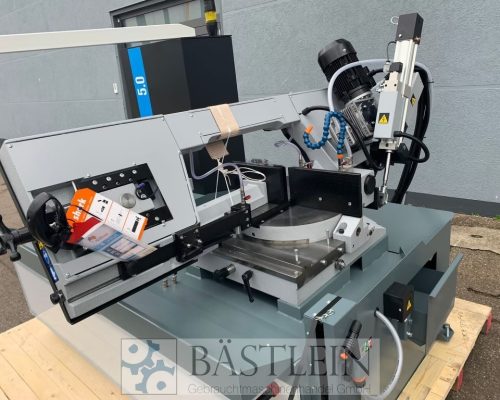

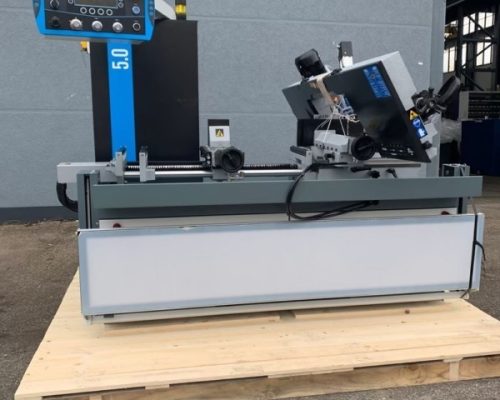

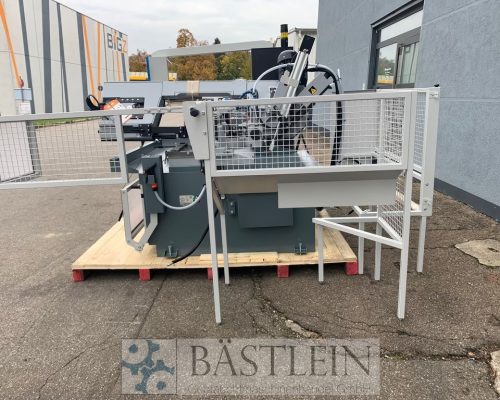

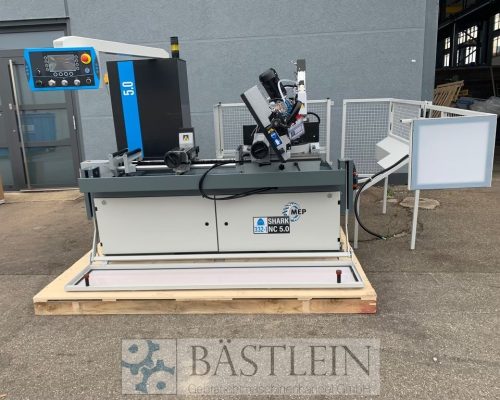

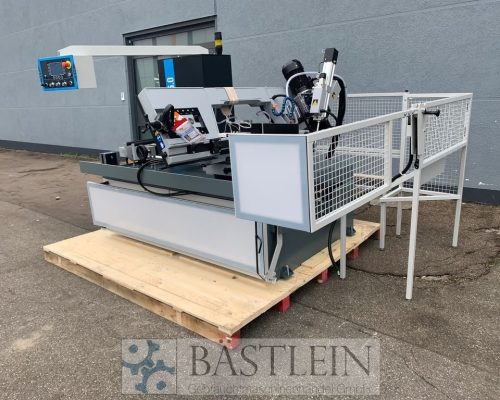

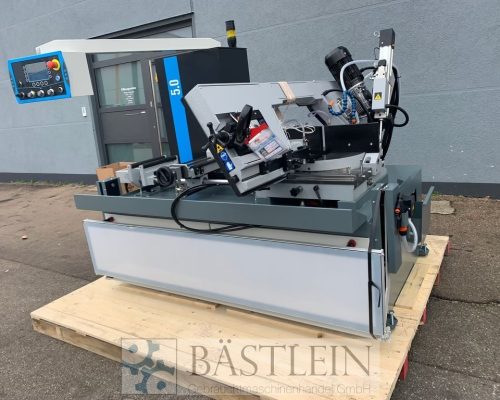

Fully automatic electro-hydraulic band saw with multi-micro processors and
additionally semi-automatic, semi-automatic-dynamic and manual
Function.
– Automatic cycle (cuts from 0 ° to 60 ° link). CNC machine with two
controlled axes that allow for the same material thickness 1000
various editing programs, each with a different cutting length and quantity, too
program.
– Semi-automatic, semi-automatic-dynamic and manual cycle (cuts
from 45 ° right to 60 ° left)
– Semiautomatic dynamic system (manual lowering of the saw band bow up to the
desired position and cycle start via the push button.)
– Manual or semi-automatic-dynamic cycle to cut directly without
Programming.
Some features:
– New fieldbus communication system (Modbus protocol)
– Display with 20 characters x 4 lines to display the technical parameters such as:
– Saw blade speed – Number of programmed and executed cuts
– saw blade thickness – feed length – cutting time – ammeter – belt tension –
Display of (about 100) diagnostic messages and warnings, everything in the
respective user language.
– Display and entry of the alarm and error messages with the possibility of
display incidents that have occurred.
– automatic parameter setting via control, if a new driver or
Inverter is mounted.
– Electronic inverter for continuous regulation of the belt speed of 15
up to 100 m / min.
– New hydraulic control unit of the latest generation, highly efficient
and with low energy consumption.
– New material supply of 600 mm with stepper motor and ball screw
mounted on opposite ball bearings.
– Hublauf the saw blade directly from the control panel programmable, for
Adaptation to the cutting material.
– Electronic band tension control.
– Automatic monitoring of the cutting load by a direct on the
Cylinder mounted servo valve.
– The coolant sump (equipped with 2 electric pumps for lubrication and
Cooling of the saw blade) is installed in the base.
– Swarf drawer (can be replaced by a chip conveyor – see
Optional)
– Preparation for the installation of the minimum lubrication set of the saw blade
(Optional), in addition to conventional standard lubrication with emulsion oil.
Chip removal brush.
– Machine is intended for lifting truck transport.
– Bi-metal saw band for solid and profile material.
| dimensions of saw-band | 3650 x 27 x 0,9 | mm |
| speed | 15 - 100 | m/min |
| vice | 335 | mm |
| capacity 90 degrees: round | 300 | mm |
| capacity 90 degrees: square | 260 | mm |
| capacity 90 degrees: flat | 330 x 260 | mm |
| capacity 45 degrees: round | 260 / 200 | mm |
| capacity 45 degrees: square | 250 / 180 | mm |
| capacity 45 degrees: flat | 270 x 200 / 200 x 160 | mm |
| capacity 60 degrees: round | 180 | mm |
| capacity 60 degrees: square | 170 | mm |
| capacity 60 degrees: flat | 170 x 170 | mm |
| total power requirement | 2,2 | kW |
| weight | 1.105 | kg |
| dimensions | 2700 x 2300 x 1800 | mm |
5010716
Steuerung: NC
