Domestic equipments:

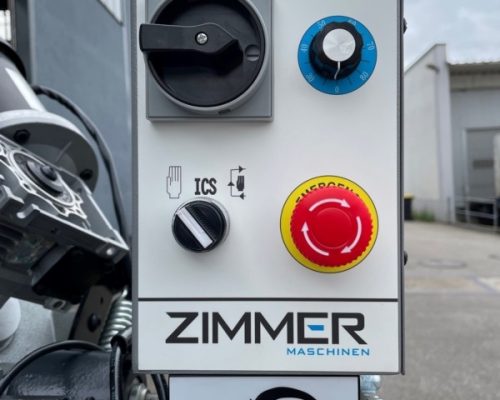

– stepless, electronic speed control
– Optional hydraulically controlled or manual belt arm lowering
– Saw arm can be swiveled up to 60 ° right

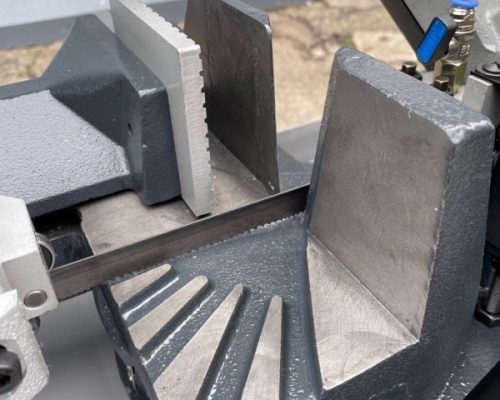

– quick release vice
– Band guide with 8 ball bearings
– Hydraulic saw blade clamping with clamping pressure display and strip break-off

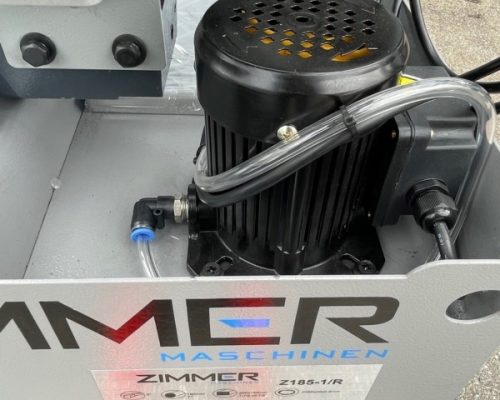

– Including coolant device
– incl. machine cabinet
| dimensions of saw-band | 2085x20x0,9 | mm |
| capacity 90 degrees: round | 185 | mm |
| capacity 90 degrees: square | 150x150 | mm |
| capacity 90 degrees: flat | 220x150 | mm |
| Cutting area at 45 degrees right: round | 110 | mm |
| Cutting range at 45 degrees right: square | 100x100 | mm |
| Cutting range at 45 degrees right: flat | 110x90 | mm |
| capacity 60 degrees: round | 70 | mm |
| capacity 60 degrees: square | 70x70 | mm |
| capacity 60 degrees: flat | 70x70 | mm |
| voltage | 230 | V |
| sawband speed | 30-75 | m/min. |
| Vice opening | 230 | mm |
| total power requirement | 2,35 | kW |
| weight of the machine ca. | 200 | kg |
| dimensions of the machine ca. | 1280x550x1480 | mm |
5010838
Steuerung: Sonstige
Metal Processing, Saws, Band Saw
