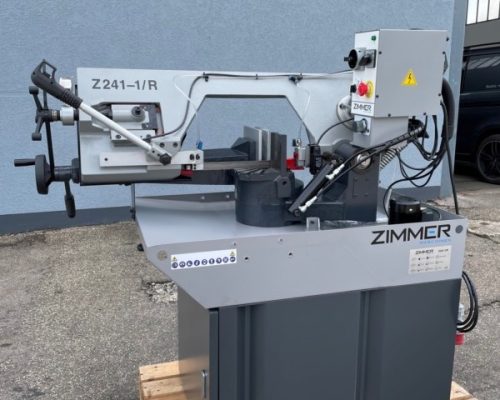

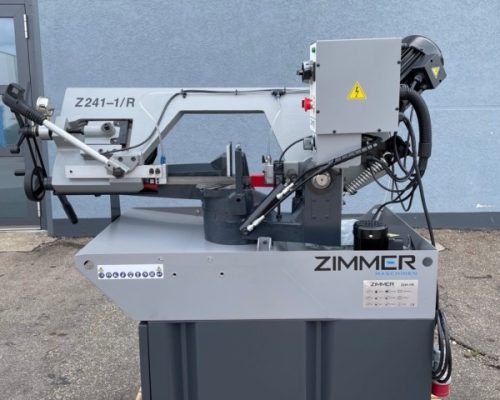

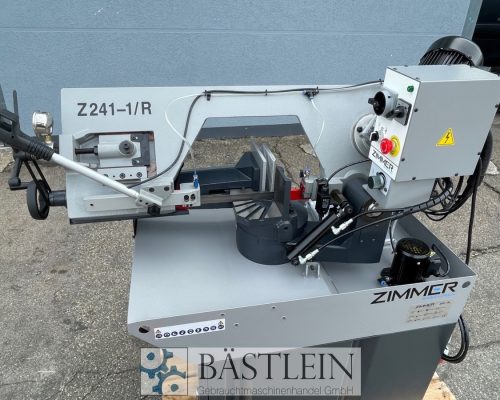

Zimmer Z241 / R is a self-lowering saw for miter cuts from 0 ° – 60 ° left. After cutting, the machine stops by a safety limit switch. The lowering is infinitely adjustable via a hydraulic system. Lifting the saw arm after cutting can be done in any position. The saw arm stops at the desired position.
Standard features:
– Hydraulic cylinder

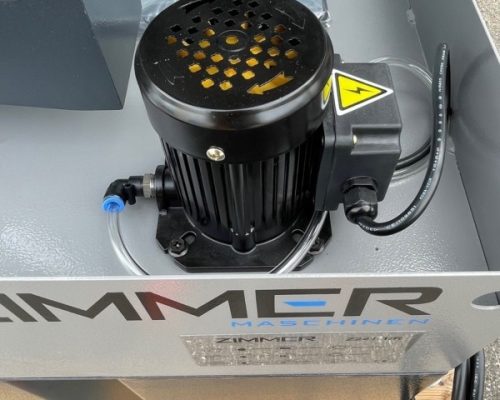

– emulsion pump
– Eccentric tensioner
– Underframe
– saw blade
– 400V plug 16A
| capacity 90 degrees: round | 220 | mm |
| capacity 90 degrees: square | 210x210 | mm |
| capacity 90 degrees: flat | 230x185 | mm |
| Cutting area at 45 degrees left: round | 150 | mm |
| Cutting range at 45 degrees: square | 150x150 | mm |
| Cutting range at 45 degrees : flat | 150x210 | mm |
| Cutting area at 60 degrees left: round | 90 | mm |
| Cutting range at 60 degrees left: square | 90x90 | mm |
| Cutting area at 60 degrees left: flat | 90x100 | mm |
| dimensions of saw-band | 2450x27x0,9 | mm |
| cutting speed | 35/70 | m/min |
| work height max. | 915 | mm |
| Vice opening | 265 | mm |
| total power requirement | 1,2 | kW |
| weight of the machine ca. | 240 | kg |
| dimensions of the machine ca. | 1550x870x1740 | mm |
