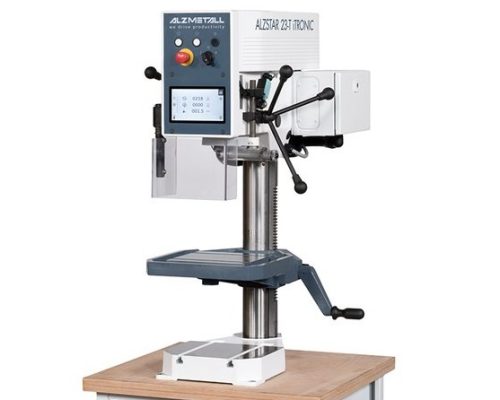

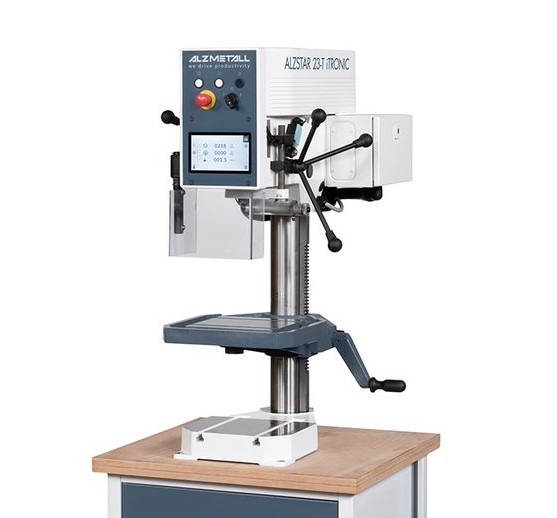

Bench Drilling Machine, ALZMETALL Alzstar 23-T iTRONIC

// Zustand: new
// Metal Processing
// Bench Drilling Machine

General data


Stock no.	2010552
Make	ALZMETALL
Type	Alzstar 23-T iTRONIC
Year	Neu
Control	Sonstige –
Storage location
Country of origin	Germany
Delivery time
Freight basis

Technical Details

	23	mm
	M 14
	M 16
	MK 2
	225-4.300	U/min.
spindle stroke	100	mm
throat	250	mm
column diameter	90	mm
	370x300	mm
	2 x 14 x 160	mm
	125/455	mm
	320x250	mm
	2 x 14 x 160	mm
	625/625	mm
feed	von Hand
	Handkurbel
total power requirement	0,6/0,95	kW
Machine height	1095	mm
weight	155	kg

Description

Standard equipment:
– Motor protection switch
– Reversing switch for clockwise and anti-clockwise rotation
– Speed adjustment stepless
– Protection IP 54
– Mushroom pushbutton (latching) for EMERGENCY STOP
– Spindle protection with electrical protection
– Speed display digital
– Connector (fully assembled, cable length 2 m)

	23	mm
	M 14
	M 16
	MK 2
	225-4.300	U/min.
spindle stroke	100	mm
throat	250	mm
column diameter	90	mm
	370x300	mm
	2 x 14 x 160	mm
	125/455	mm
	320x250	mm
	2 x 14 x 160	mm
	625/625	mm
feed	von Hand
	Handkurbel
total power requirement	0,6/0,95	kW
Machine height	1095	mm
weight	155	kg

2010552
Steuerung: Sonstige
Metal Processing, Boring mills / Machining Centers / Drilling machines, Bench Drilling Machine
