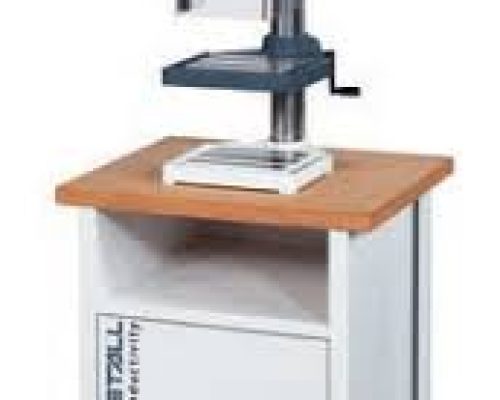

Bench Drilling Machine, ALZMETALL AX 2-T iTRONIC

Standard equipment:
7″ TFT LCD display with touch function: Manual input of spindle speed setpoint,
speed display actual value, integrated drilling depth display with touch
function.
setpoint, actual speed display, integrated drilling depth display with touch
zero point transfer, virtual drilling depth scale in the display, machine status
status indicators and warnings on the display, Service information, Selectable
operator language
operator language: DE/EN/FR/ES/IT/NL/RU

– Thread cutting device, for thread cutting with stop, max. 12
threads/min (thread cutting capacity depends on spindle speed), thread depth
adjustable via depth stop and on the TFT LCD display (4 tools).
Attention: Spindle stroke is reduced by 15 mm.
– Infinitely variable speed adjustment by means of adjustment lever
– Spindle protection with electrical fuse
– Three separate buttons for clockwise rotation – anticlockwise rotation – stop
– Mushroom pushbutton (latching) for EMERGENCY STOP
– Main switch, lockable
– Clockwise and counter-clockwise rotation via contactor control
– Control voltage 24 Volt
– Protection class IP 54
– Paint finish: DD textured paint signal white RAL 9003, PANTONE 7545c, black

Item 20.5
Foot switch, in addition to the thread cutting device for switching the spindle
direction of rotation during the process

Item 37.5
Technology calculator in the display. The technology computer guides you
through the
machining task. Determination of the cutting data using the following
parameters:
Production process, tool diameter, cutting speed,
material table, transfer function of the spindle speed as set value
