Standard equipment:
5″ TFT LCD display with touch function: Manual input of spindle speed setpoint,
speed display actual value, integrated drilling depth display with touch
function.
setpoint, actual speed display, integrated drilling depth display with touch
zero point transfer, virtual drilling depth scale in the display, machine status
status indicators and warnings on the display, Service information, Selectable
operator language
operator language: DE/EN/FR/ES/IT/NL/RU.
– AC motor 230 Volt, 50 Hz
– Connection plug ready fitted, cable length 3 m
– Infinitely variable speed adjustment via potentiometer
– Three separate buttons for clockwise rotation – anticlockwise rotation – stop
(spindle stop due to brake function)
– Spindle protection with electrical fuse
– Mushroom pushbutton (latching) for EMERGENCY STOP
– Main switch, lockable
– Control voltage 24 Volt
– Protection class IP 54
– Paint finish: DD textured paint signal white RAL 9003, PANTONE 7545c, black
Item 37.6
MAXIMUM DRILLING DEPTH DISPLAY
as a measuring function for the current drilling depth
| 6 | mm | |
| bore stroke | 55 | mm |
| 900 - 10.000 | U/min. | |
| throat | 180 | mm |

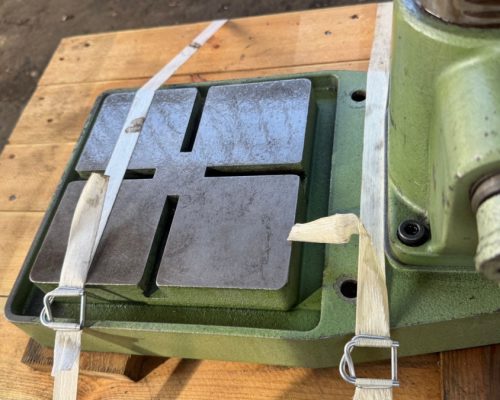

| table surface area | 290 x 350 | mm |
| machine weight ab. | 90 | kg |
2010769
Steuerung: konventionell
