Stock no. |
9030006 |
|
Make |
ZOPF |
|
Type |
T 100 digital |
|
Year |
NEU |
|
Control |
Sonstige – |
|
Storage location |
Factory |
|
Country of origin |
Deutschland |
|
Delivery time |
nach Absprache. |
|
Freight basis |
Lieferung ab Werk. |
| pressure | 100 | kN |
| stroke | 0-200 | mm |
| table-size | 450 x 1000 | mm |
| working speed: | 6-10 | mm/ sec. |
| return speed | 20 | mm/sec |
| work height max. | 900 | mm |
| toolpiece height max. | 200 | mm |
| total power requirement | 1,5 | kW |
| bending capacity max. - round | 42x3,2 | mm |
| 150x10 | mm | |
| weight | 320 | kg |
| dimensions | 1010x480x1120 | mm |
| pressure | 100 | kN |
| stroke | 0-200 | mm |
| table-size | 450 x 1000 | mm |
| working speed: | 6-10 | mm/ sec. |
| return speed | 20 | mm/sec |
| work height max. | 900 | mm |
| toolpiece height max. | 200 | mm |
| total power requirement | 1,5 | kW |
| bending capacity max. - round | 42x3,2 | mm |
| 150x10 | mm | |
| weight | 320 | kg |
| dimensions | 1010x480x1120 | mm |

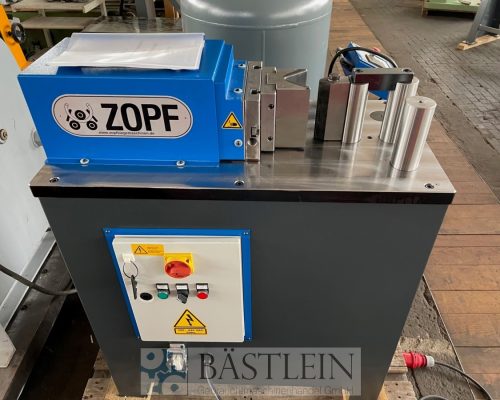

Link to the machine: https://baestlein.com/en/maschine/bending-machine-horizontal-zopf-t-100-digital/
For you as a service: Up to 60 months without down payment, without residual value, personal advice and individual leasing rate calculations are available upon request.
