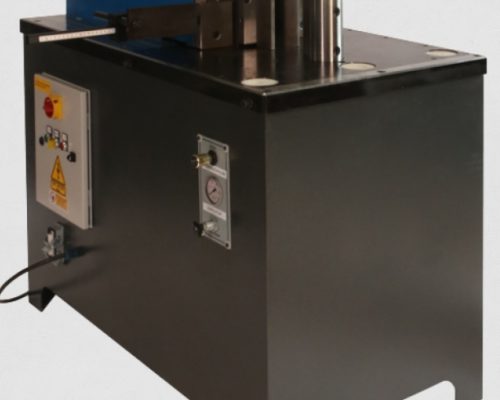

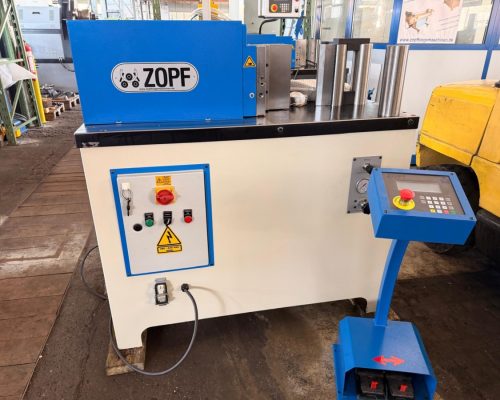

bending machine horizontal, ZOPF T 400 Multiprogramm

// Zustand: new
// Metal Processing
// bending machine horizontal

General data


Stock no.	4040228
Make	ZOPF
Type	T 400 Multiprogramm
Year	Neu
Control	NC –
Storage location	Factory
Country of origin	Germany
Delivery time	kurzfristig – nach Absprache.
Freight basis	Lieferung ab Werk.

Technical Details

	400	kN
stroke length max.	285	mm
working feed	9	mm/sec
return speed	20	mm/sec
	660x1250	mm
work height max.	930	mm
toolpiece height max.	250	mm
total power requirement	4	kW
	200x26	mm
bending capacity max. - round	60x5,0	mm
weight	1050	kg

Description

Domestic equipments:

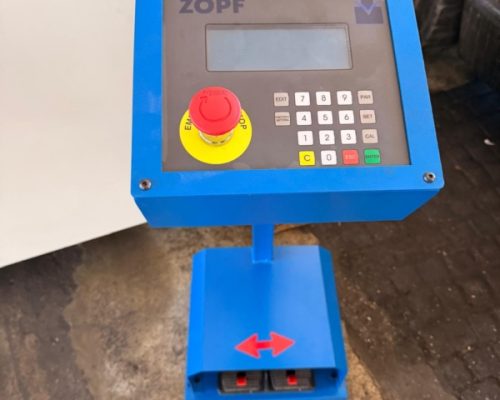

– semi-automatic NC control (99 programs with 16 steps each)

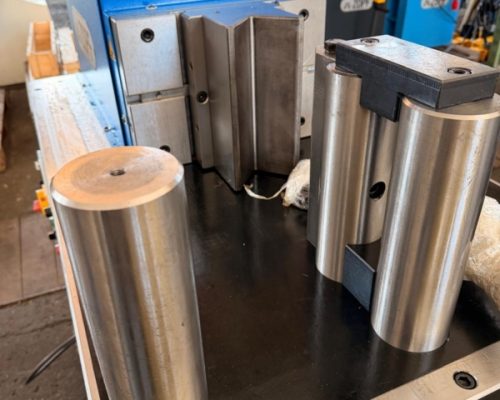

– incl. bending bolt (without punch)
– Incl. tool holder for dies
– incl. foot pedal

	400	kN
stroke length max.	285	mm
working feed	9	mm/sec
return speed	20	mm/sec
	660x1250	mm
work height max.	930	mm
toolpiece height max.	250	mm
total power requirement	4	kW
	200x26	mm
bending capacity max. - round	60x5,0	mm
weight	1050	kg

4040228
Steuerung: NC
Metal Processing, Sheet metal working / shaeres / bending, bending machine horizontal

Link to the machine: https://baestlein.com/en/maschine/bending-machine-horizontal-zopf-t-400-multiprogramm/
