Stock no. |
3020287 |
|
Make |
WEILER |
|
Type |

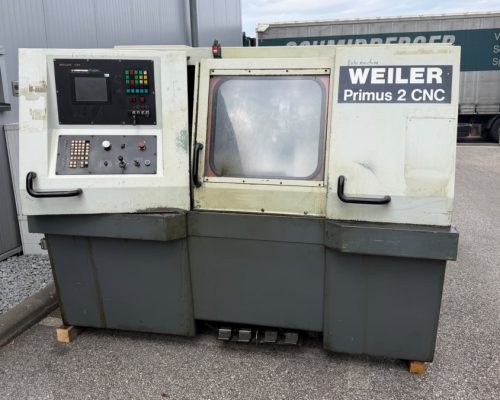

Primus 2 CNC |
|
Year |
|
|

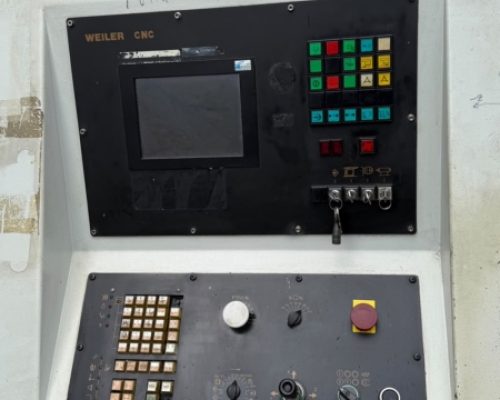

Control |
CNC – |
|
Storage location |
Günzburg |
|
Country of origin |
Germany |
|
Delivery time |
kurzfristig – nach Absprache. |
|
Freight basis |
Lieferung ab Lager Günzburg |
| turning diameter | 160 | mm |
| turning length | 500 | mm |
| greates pass round over bed | 400 | mm |
| 220 | mm | |
| Main spindle | ||
| main spindle bore | 51 | mm |
| turning speeds | 5.000 | U/min |
| bar material dia. | 42 | mm |

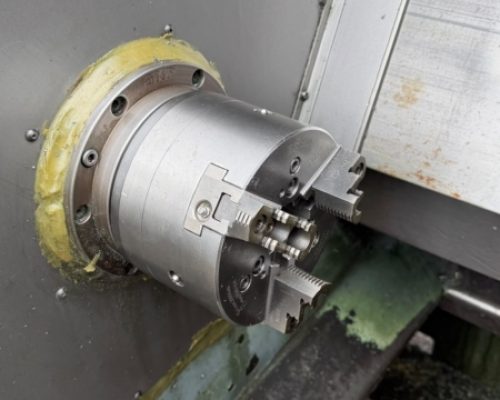

| chucking diameter | 160 | mm |

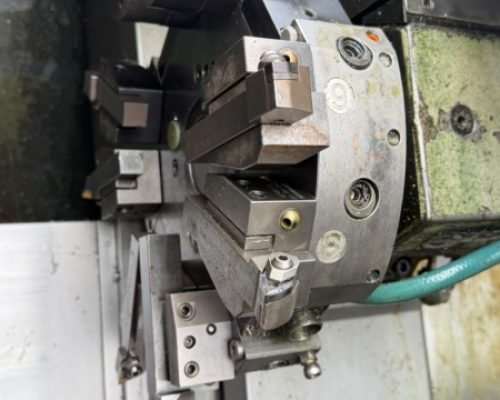

| Number of Tool Places | 12 | Stück |
| quill stroke | 50 | mm |
| tailstock taper MT | 3 | |
| travel -x axis | 250 | mm |
| travel -z axis | 550 | mm |
| total power requirement | 30 | kW |
| weight of the machine ca. | 4.000 | kg |
| turning diameter | 160 | mm |
| turning length | 500 | mm |
| greates pass round over bed | 400 | mm |
| 220 | mm | |
| Main spindle | ||
| main spindle bore | 51 | mm |
| turning speeds | 5.000 | U/min |
| bar material dia. | 42 | mm |
| chucking diameter | 160 | mm |
| Number of Tool Places | 12 | Stück |
| quill stroke | 50 | mm |
| tailstock taper MT | 3 | |
| travel -x axis | 250 | mm |
| travel -z axis | 550 | mm |
| total power requirement | 30 | kW |
| weight of the machine ca. | 4.000 | kg |
Link to the machine: https://baestlein.com/en/maschine/cnc-lathe-weiler-primus-2-cnc/
For you as a service: Up to 60 months without down payment, without residual value, personal advice and individual leasing rate calculations are available upon request.
