Stock no. |
4021259 |
|
Make |
BAYKAL |
|
Type |
APHS PRO 31160 |
|
Year |
Neu |
|
Control |

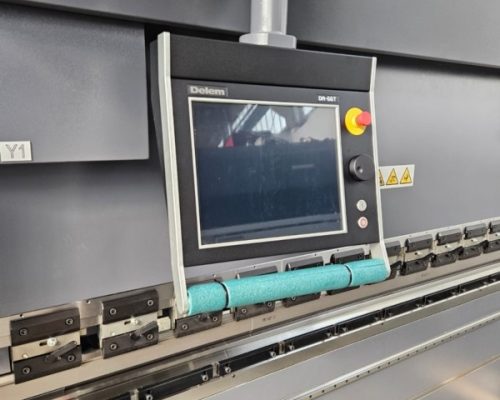

CNC – DELEM DA 66 T |
|
Storage location |
|
|
Country of origin |
Turkey |
|
Delivery time |
nach Absprache. |
|
Freight basis |
Lieferung ab Standort. |
| pressure | 160 | t |
| chamfer lenght | 3100 | mm |
| distance between columns | 2550 | mm |
| control | DELEM DA 66 T | |
| oil volume | 210 | l |
| throat | 410 | mm/sec |
| stroke | 260 | mm |
| table surface area | 60 x 870 | mm |
| 200 | ||
| return speed | 160 | mm/sec |
| X-axis travel | 1000 | mm |
| R-axis travel | 160 | mm |
| dimensions | 4100 x 1800 x 2700 | mm |
| total power requirement | 15 | kW |
| weight of the machine ca. | 9.700 | kg |
| pressure | 160 | t |
| chamfer lenght | 3100 | mm |
| distance between columns | 2550 | mm |
| control | DELEM DA 66 T | |
| oil volume | 210 | l |
| throat | 410 | mm/sec |
| stroke | 260 | mm |
| table surface area | 60 x 870 | mm |
| 200 | ||
| return speed | 160 | mm/sec |
| X-axis travel | 1000 | mm |
| R-axis travel | 160 | mm |
| dimensions | 4100 x 1800 x 2700 | mm |
| total power requirement | 15 | kW |
| weight of the machine ca. | 9.700 | kg |
Link to the machine: https://baestlein.com/en/maschine/hydr-pressbrake-baykal-aphs-pro-31160/
For you as a service: Up to 60 months without down payment, without residual value, personal advice and individual leasing rate calculations are available upon request.
