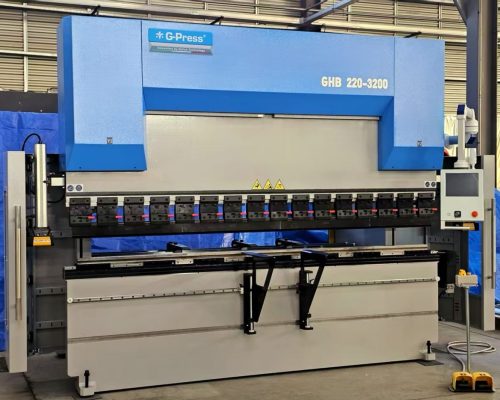

Stock no. |
4021342 |
|
Make |
GPRESS |
|
Type |
GHB-X 220-3000 |
|
Year |
NEU |
|
Control |
CNC – Cybelec CybTouch 12 |
|
Storage location |
Factory |
|
Country of origin |
China |
|
Delivery time |
nach Absprache. |
|
Freight basis |
Lieferung ab Werk. |
| pressure | 220 | t |
| chamfer lenght | 3200 | mm |
| distance between columns | 2700 | mm |
| Control | Cybelec CybTouch 12 | |
| throat | 400 | mm |
| stroke | 220 | mm |
| dayligth | 480 | mm |
| 140 | mm/s | |
| bending speed | 0-10 | mm/s |
| 110 | mm/s | |
| total power requirement | 18,5 | kW |
| dimensions | 3600 x 2000 x 2900 | mm |
| weight | 11.500 | kg |
| pressure | 220 | t |
| chamfer lenght | 3200 | mm |
| distance between columns | 2700 | mm |
| Control | Cybelec CybTouch 12 | |
| throat | 400 | mm |
| stroke | 220 | mm |
| dayligth | 480 | mm |
| 140 | mm/s | |
| bending speed | 0-10 | mm/s |
| 110 | mm/s | |
| total power requirement | 18,5 | kW |
| dimensions | 3600 x 2000 x 2900 | mm |
| weight | 11.500 | kg |
Link to the machine: https://baestlein.com/en/maschine/hydr-pressbrake-gpress-ghb-x-220-3000/
For you as a service: Up to 60 months without down payment, without residual value, personal advice and individual leasing rate calculations are available upon request.
