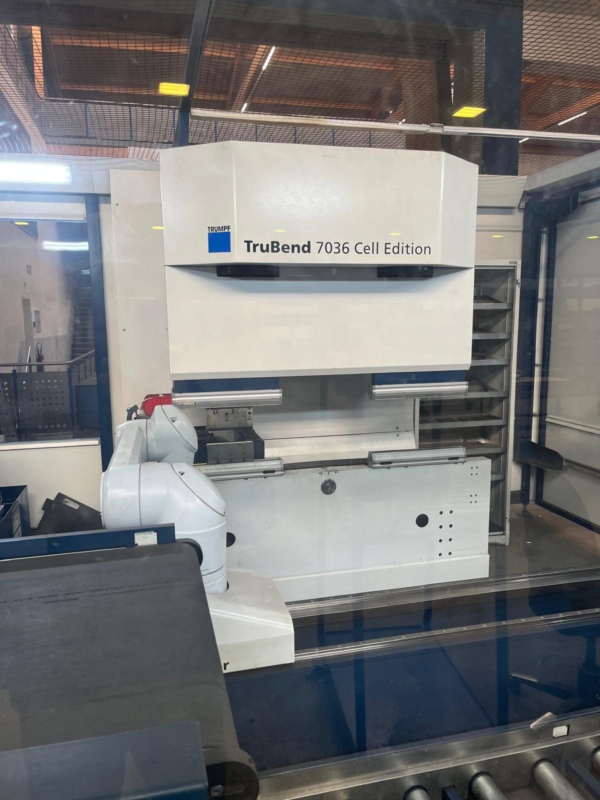

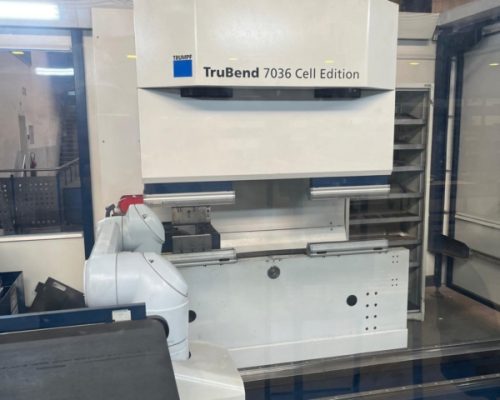

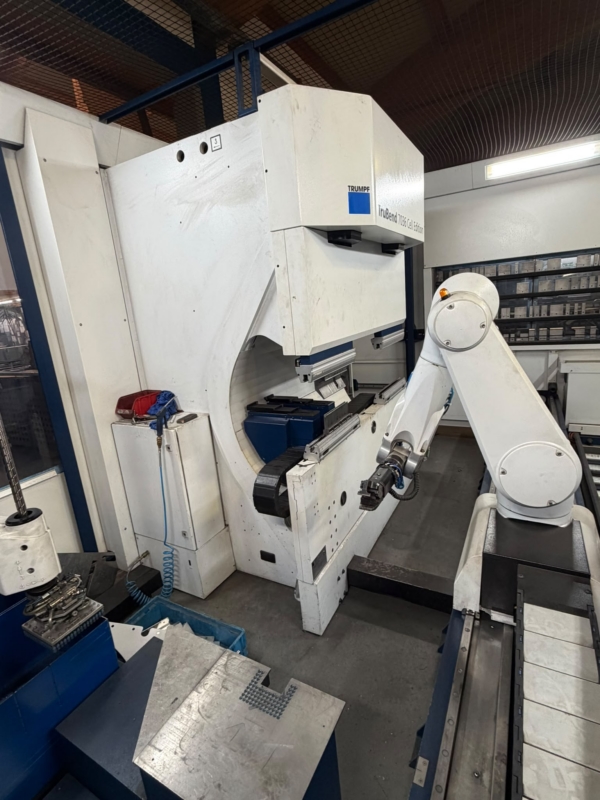

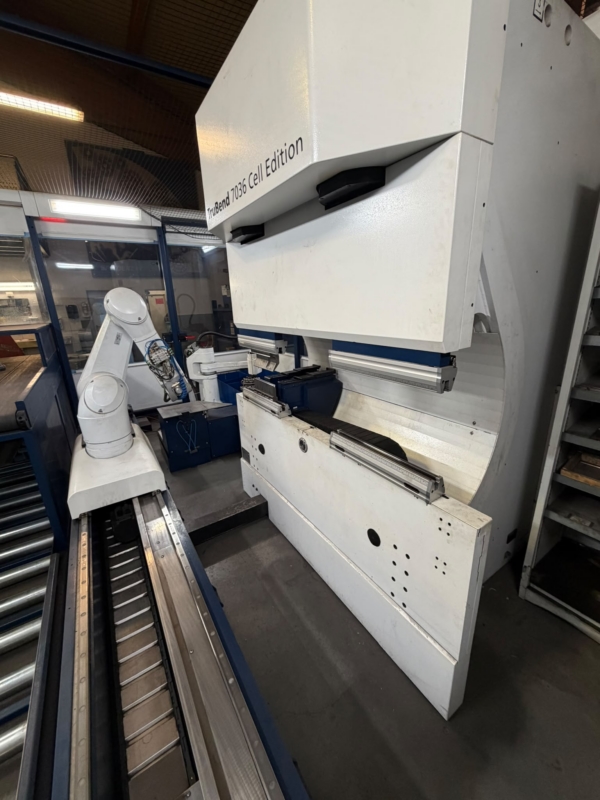

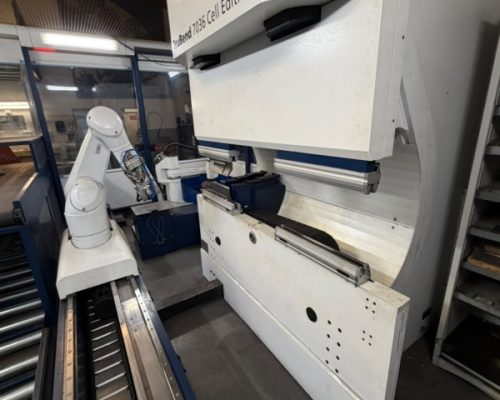

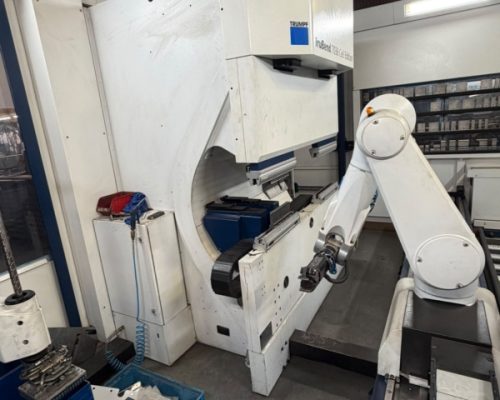

TruBend 7036 Cell Edition
Standard Features:
TruBend 7036 Cell Edition:
– Electromechanical direct drive (torque motor)
– 6-axis backgauge system with position sensors
– Positionable Wila tool clamps
– Control cabinet climate control

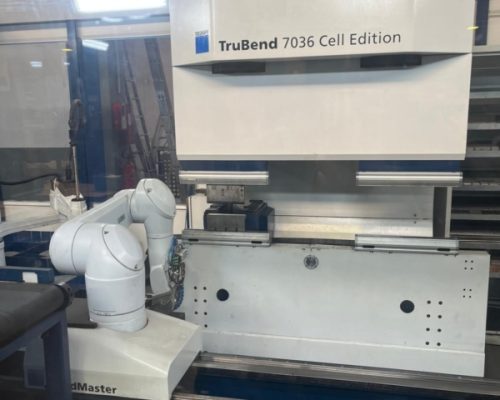

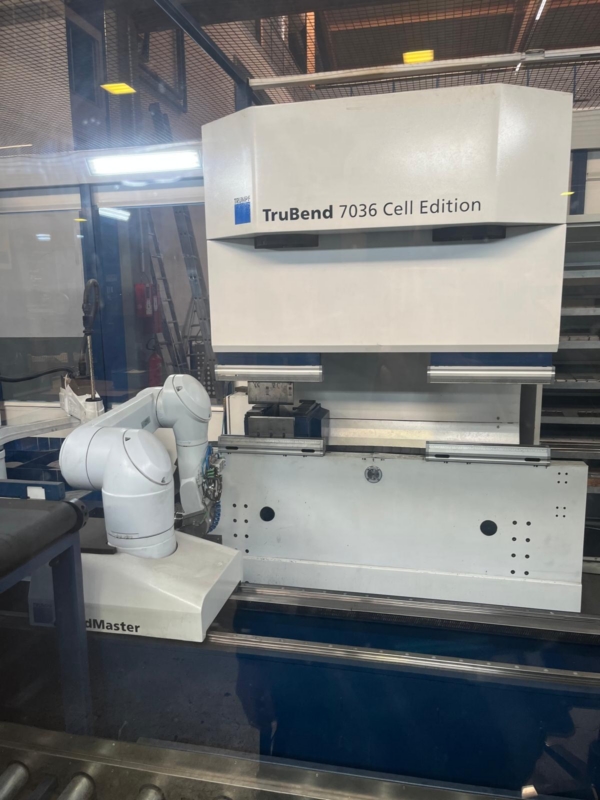

BendMaster:
– Sturdy base frame and manipulator
– Load capacity 15 kg, max. sheet weight 3 kg
– Floor-mounted track, welded construction with sturdy guide rail
Travel distance 3215 mm
– Gripper coupling on the BendMaster
– Electric drives
– Pincer gripper with jaws

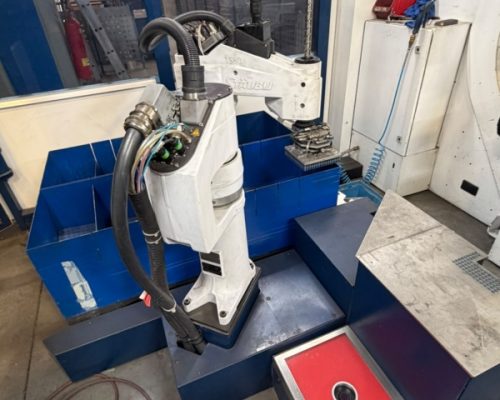

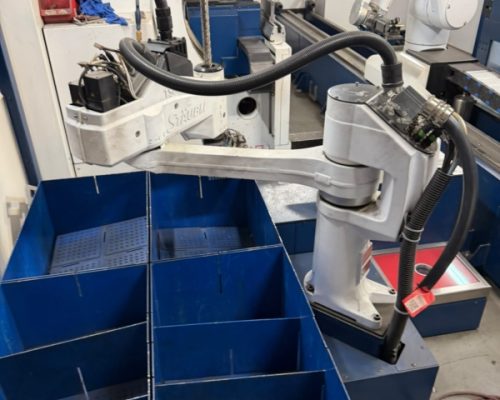

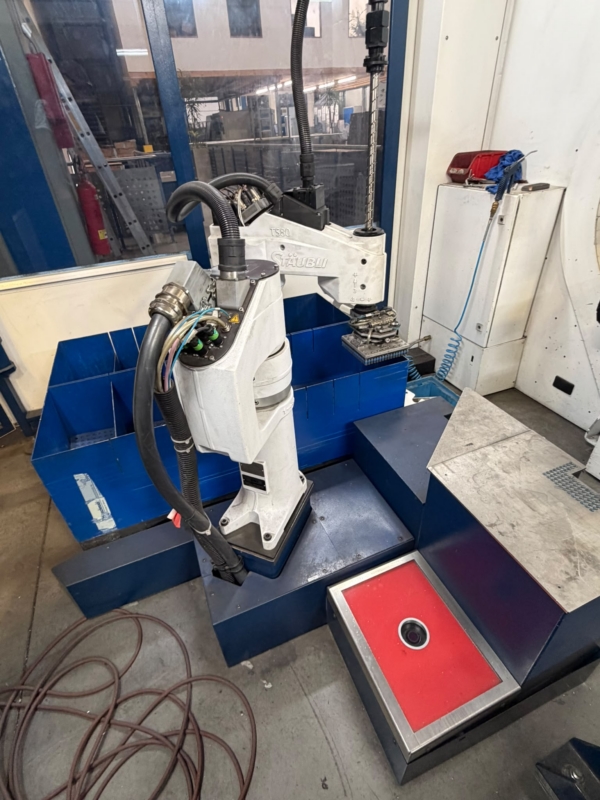

LoadMaster Bend:
– Handling system
– Multi-suction cup
– Double-sheet detection and separation
– Transfer system
– System pallet
Safety:
– Safety cell with swing-slide doors

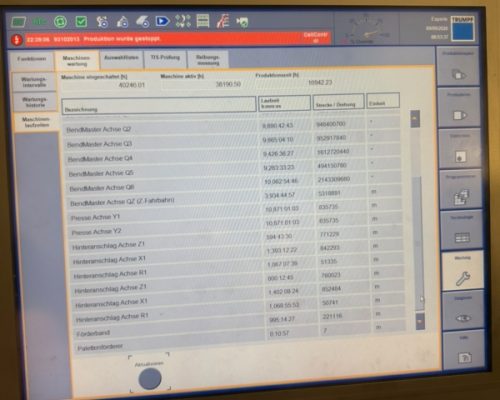

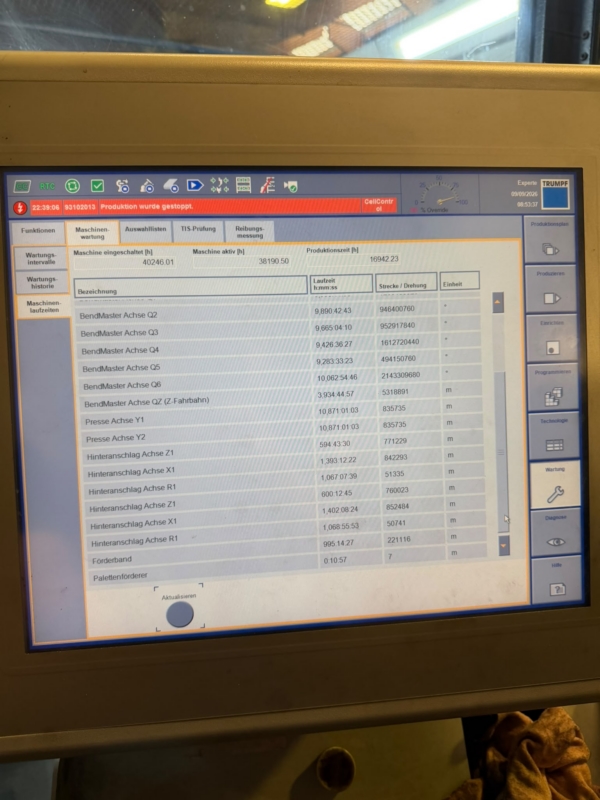

Control:

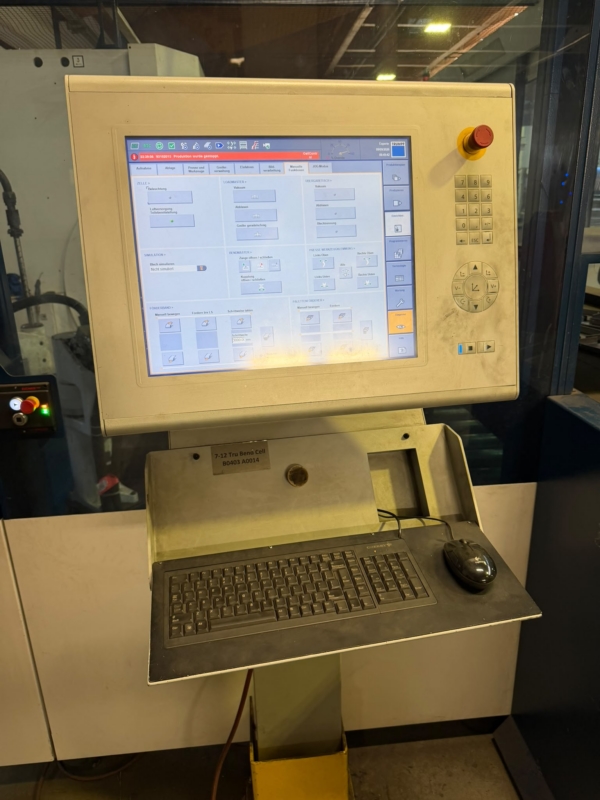

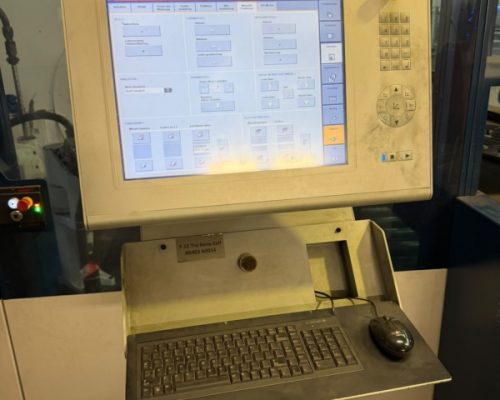

– PC control with 19″ touchscreen
– Mobile operator terminal
– Network connection
– Teleservice via the Internet
Youtube-Video-Link:
| pressure | 36 | t |
| chamfer lenght | 1020 | mm |
| distance between columns | 932 | mm |
| throat | 150 | mm |
| stroke | 120 | mm |
| useable dayligth | 295 | mm |
| Y-working travel | 10/25 | mm/sec |
| Y-rapid travel | 220 | mm/sec |
| work height max. | 1150 | mm |
| weight of the machine ca. | 2.600 | kg |
| dimensions of the machine ca. | 1805 x 1330 x 2380 | mm |
4021386
Steuerung: NC
Metal Processing, Sheet metal working / shaeres / bending, Hydr. pressbrake
