Stock no. |
4021366 |
|
Make |
TRUMPF |
|
Type |

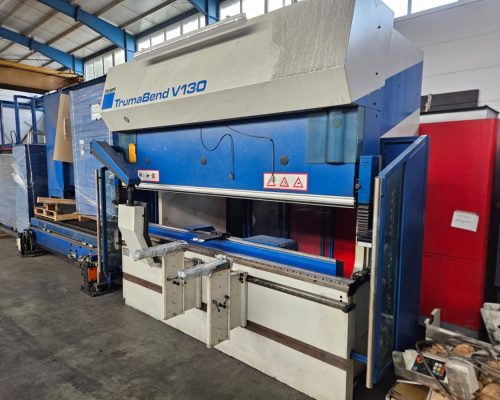

Trumabend V 130 X |
|
Year |
2005 |
|
Control |
CNC – DELEM DA-69TW |
|
Storage location |
Günzburg |
|
Country of origin |
Austria |
|
Delivery time |
kurzfristig – nach Absprache. |
|
Freight basis |
Lieferung ab Lager Günzburg |
| pressure | 130 | t |
| chamfer lenght | 3100 | mm |
| distance between columns | mm | |
| control | DELEM DA-69TW | |
| stroke | 365 | mm |
| machine weight ab. | 12.950 | kg |
Accessories:
– 2 support arms in front of the machine
– Delem CNC control
– Curvature
– Die shift
– Wila tool holder
– Side safety doors
– Light barrier
– Controlled axes: y1, y2, x, r
– 2 adjustable support fingers
| pressure | 130 | t |
| chamfer lenght | 3100 | mm |
| distance between columns | mm | |
| control | DELEM DA-69TW | |
| stroke | 365 | mm |
| machine weight ab. | 12.950 | kg |
Link to the machine: https://baestlein.com/en/maschine/hydr-pressbrake-trumpf-trumabend-v-130-x/
For you as a service: Up to 60 months without down payment, without residual value, personal advice and individual leasing rate calculations are available upon request.
