Standard equipment:
– Electromagnetic feed clutch with overload protection and electrical
Cross Handle Switches
– Main switch lockable
– Motor protection switch

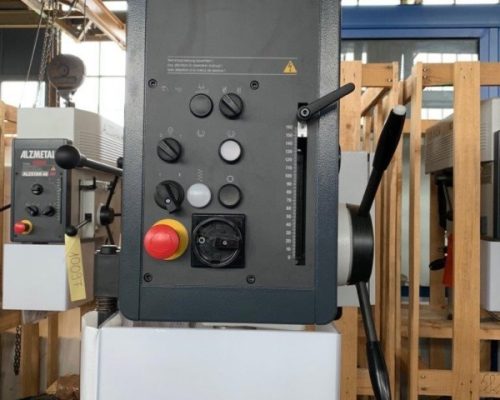

– Mushroom pushbutton (latching) for EMERGENCY STOP in the front panel
– Speed adjustment stepless

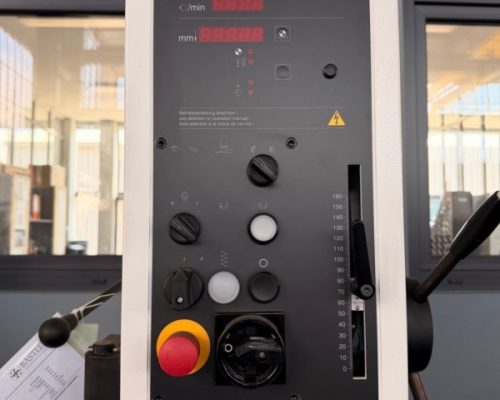

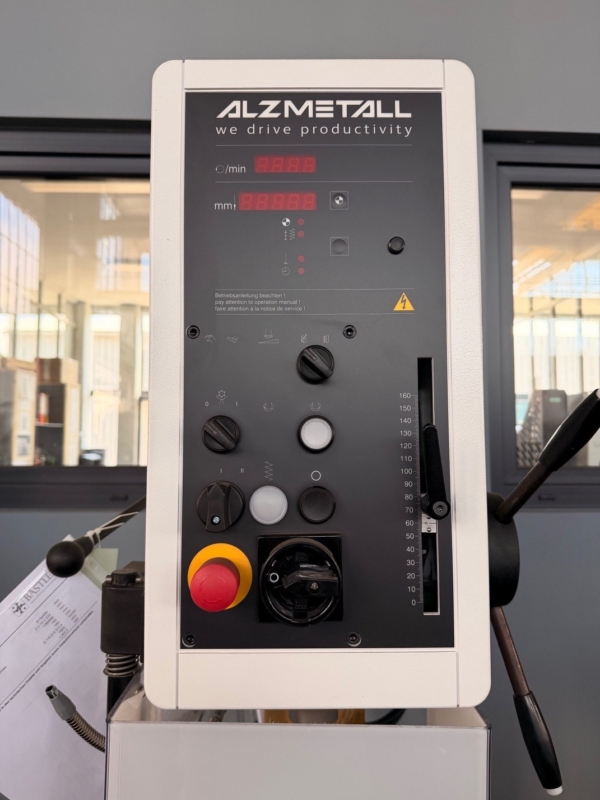

– Speed display digital
– Protection class IP 54
– Motor insulation class “F”
– Spindle protection with electrical protection
Pos. 20.1
Tapping device with foot switch, for thread cutting with
Stop, max. 6 threads/min., (Tapping power dependent on spindle speed)
Pos. 25.

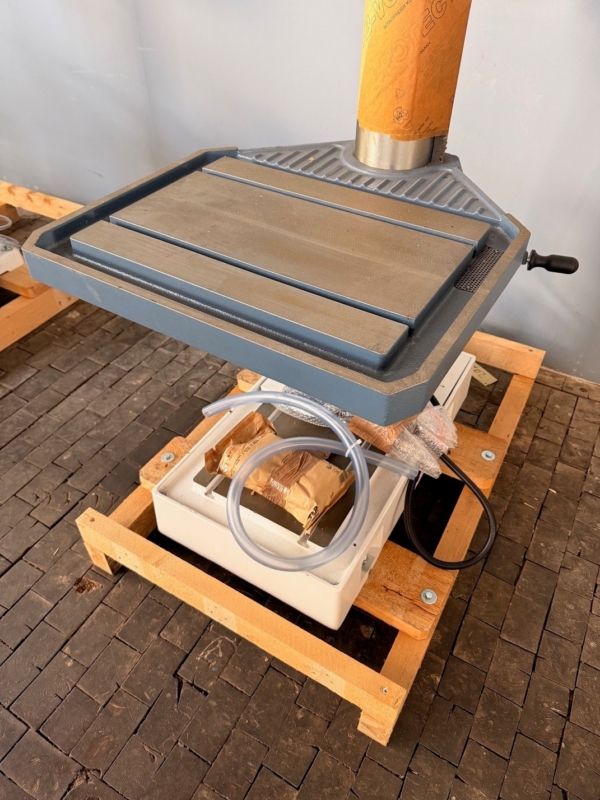

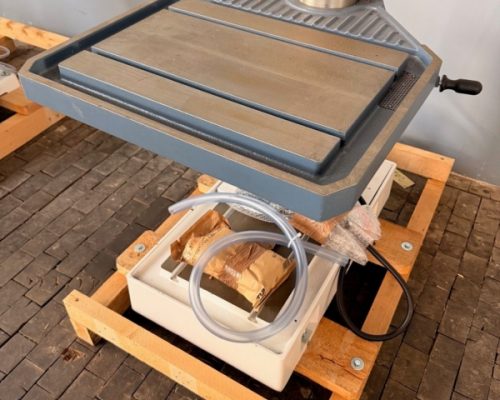

Coolant device B, consisting of: separate container (33 l), pump with
Motor protection switch, complete fitting
| 34 | mm | |
| 40 | mm | |
| 40 | mm | |
| MK 4 | ||
| 100-1.800 | U/min. | |
| throat | 300 | mm |
| 615x430 | mm | |
| 2 x 14 x 224 | mm | |
| 138/688 | mm | |
| column diameter | 145 | mm |
| spindle stroke | 160 | mm |
| feeds | 0,1-0,2-0,3-0,4 | mm/U |
| Machine height | 1865 | mm |
| total power requirement | 1,4/2,2 | kW |
2010652
Steuerung: Sonstige
Metal Processing, Boring mills / Machining Centers / Drilling machines, Pillar Drilling Machine
