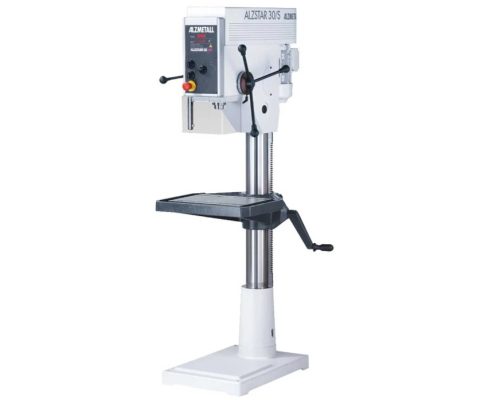

Pillar Drilling Machine, ALZMETALL Alzstar 30/S

// Zustand: new
// Metal Processing
// Pillar Drilling Machine

General data


Stock no.	2010706
Make	ALZMETALL
Type	Alzstar 30/S
Year	Neu
Control	konventionell –
Storage location	Factory
Country of origin	Czech Republic
Delivery time	nach Absprache.
Freight basis	Lieferung ab Werk.

Technical Details

bore capacity in steel St 60	25	mm
bore capacity in cast iron GG 20	30	mm
Drilling capacity in St 60	30	mm
threading in St 60	M 16
threading in GG 20	M 20
Short spindle	MK 3
spindle stroke	140	mm
throat	293	mm
column diameter	115	mm
Machine table - usable table surface	514 x 360	mm
T-Slots Amount - Width - Distance	2 x 14 x 224	mm
Distance spindle-table min.	132 / 724	mm
feed	von Hand
spindle turning speed - stepless	225 - 4300	U/min
total power requirement	1,0/1,6	kW
weight of the machine ca.	260	kg

Description

bore capacity in steel St 60	25	mm
bore capacity in cast iron GG 20	30	mm
Drilling capacity in St 60	30	mm
threading in St 60	M 16
threading in GG 20	M 20
Short spindle	MK 3
spindle stroke	140	mm
throat	293	mm
column diameter	115	mm
Machine table - usable table surface	514 x 360	mm
T-Slots Amount - Width - Distance	2 x 14 x 224	mm
Distance spindle-table min.	132 / 724	mm
feed	von Hand
spindle turning speed - stepless	225 - 4300	U/min
total power requirement	1,0/1,6	kW
weight of the machine ca.	260	kg

2010706
Steuerung: konventionell
Metal Processing, Drilling maschines, Pillar Drilling Machine
