Standard equipment:

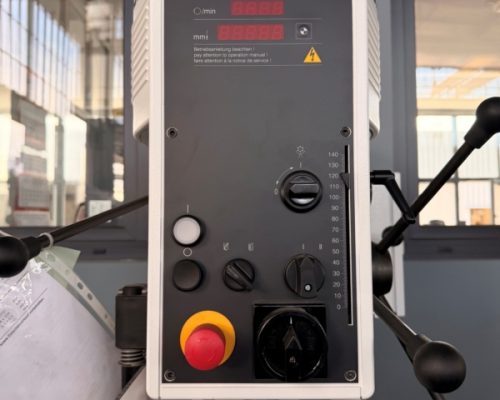

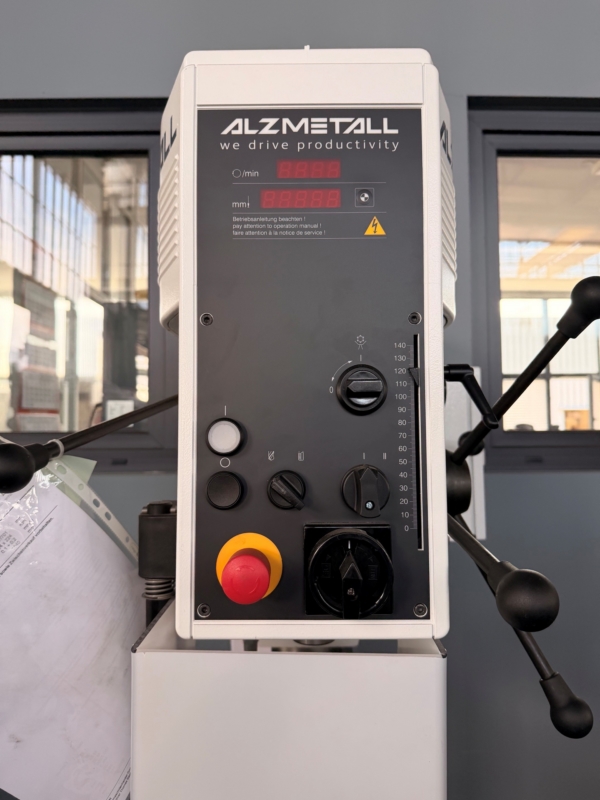

– Main switch with motor protection switch lockable
– Mushroom pushbutton (latching) for EMERGENCY STOP
– Speed adjustment stepless
– Speed display digital
– Feed overload protection
– Protection IP 54
– Spindle protection with electrical protection
Pos. 20.1
Tapping device with foot switch, for thread cutting with
Stop, max. 6 threads / min., (Tapping power dependent on spindle speed)
Pos. 24
Coolant device A, consisting of: Coolant base plate with machined
Workpiece support surface 320×320 mm and 2 T-slots, pump with
Motor protection switch, complete fitting
| 40 | mm | |
| M 24 | ||
| M 30 | ||
| spindle turning speed - stepless | 160-2250 | U/min |
| MK 3 | ||
| spindle stroke | 120 | mm |
| throat | 293 | mm |
| column diameter | 115 | mm |
| 515x360 | mm | |
| distance spindle /table | min./max. 117/701 | mm |
| 2 x 14 x 224 | mm | |
| feed | 0,1 + 0,2 | mm/U |
| Machine height | 1840 | mm |
2010567
Steuerung: Sonstige

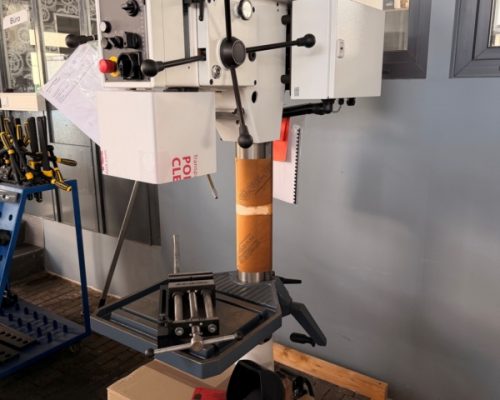

Metal Processing, Boring mills / Machining Centers / Drilling machines, Pillar Drilling Machine
