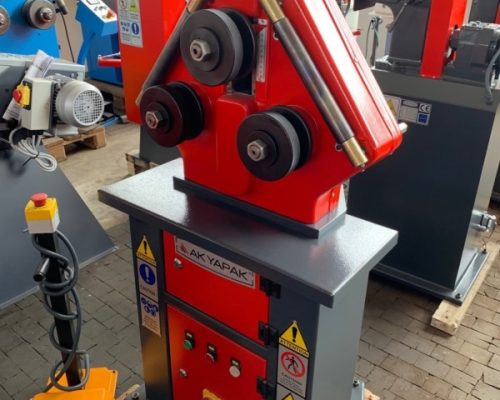

Pipe-Bending Machine, AK-BEND APK 30

// Zustand: new
// Metal Processing
// Pipe-Bending Machine

General data


Stock no.	10040
Make	AK-BEND
Type	APK 30
Year	Neu
Control	Sonstige –
Storage location	Factory
Country of origin	Turkey
Delivery time	nach Absprache.
Freight basis	Lieferung ab Werk.

Technical Details

bending speed	2.1	m/min
Bending capacity - square	30x30	mm
bending capacity - flat iron	80x15	mm
Bending capacity - flat iron on edge	50x10	mm
tube diameter	1" oder 60x2	mm
Shaft diameter - upper	35	mm
Shaft diameter - lower	30	mm
total power requirement	0,75	kw
range L-W-H	650 x 500 x 1300	mm
weight	170	kg

Description

Standard features:

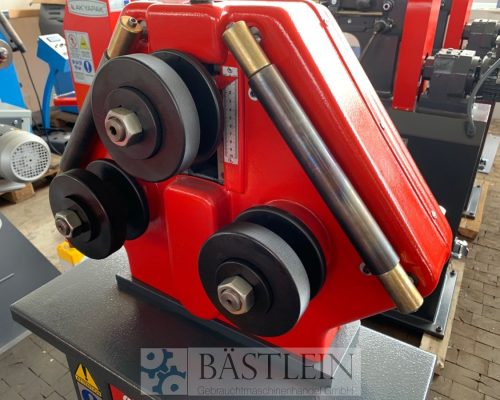

– hardened special steel shafts
– a set of hardened rollers
– Bottom rollers are driven
– lateral straightening rollers
– Foot pedal
– horizontal and vertical working

bending speed	2.1	m/min
Bending capacity - square	30x30	mm
bending capacity - flat iron	80x15	mm
Bending capacity - flat iron on edge	50x10	mm
tube diameter	1" oder 60x2	mm
Shaft diameter - upper	35	mm
Shaft diameter - lower	30	mm
total power requirement	0,75	kw
range L-W-H	650 x 500 x 1300	mm
weight	170	kg

10040
Steuerung: Sonstige
Metal Processing, Sheet metal working / shaeres / bending, Pipe-Bending Machine
