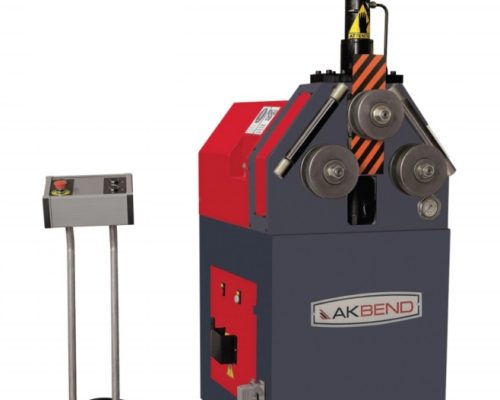

Pipe-Bending Machine, AK-BEND APK 45

// Zustand: new
// Metal Processing
// Pipe-Bending Machine

General data


Stock no.	4040173
Make	AK-BEND
Type	APK 45
Year	NEU
Control	Sonstige –
Storage location
Country of origin	Turkey
Delivery time	nach Absprache.
Freight basis	Lieferung ab Werk.

Technical Details

bar material - diameter	Ø 35	mm
I-beam section - flat steel	60x10	mm
L-beam	50	mm
tube diameter max.	Ø 60x2	mm
square material	45x45x3	mm
roll diam. toproll	162	mm
roll diam. bottom roll	152	mm
Shaft diameter	50/40	mm
turning speeds	3,3	m/min
total power requirement	1,5 + 0,75	kW
weight	450	kg
range L-W-H	1050x950x1450	mm

Description

Domestic equipments:
– hydr. Delivery of the top roller
– standard roller set
– side straightening rollers
– Upper roll holder: 50.0 mm
– Under roller diameter: 40.0 mm
– Control panel

bar material - diameter	Ø 35	mm
I-beam section - flat steel	60x10	mm
L-beam	50	mm
tube diameter max.	Ø 60x2	mm
square material	45x45x3	mm
roll diam. toproll	162	mm
roll diam. bottom roll	152	mm
Shaft diameter	50/40	mm
turning speeds	3,3	m/min
total power requirement	1,5 + 0,75	kW
weight	450	kg
range L-W-H	1050x950x1450	mm
