Domestic equipments:
– Special steel shafts (42CrMo4) hardened and ground

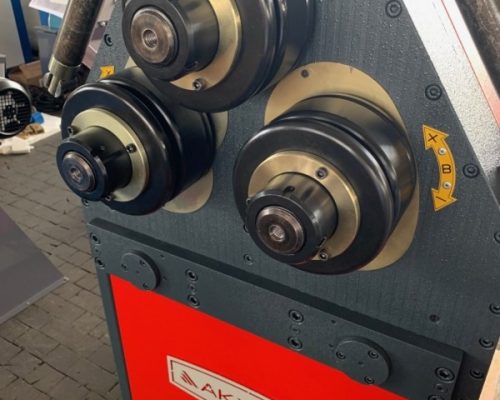

– a set of standard rollers
– lower rollers up and down hydraulically deliverable
– digital display for lower rollers

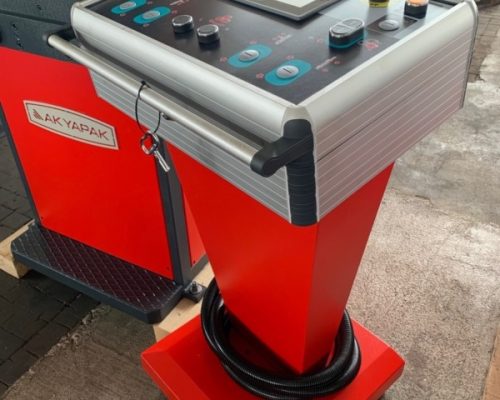

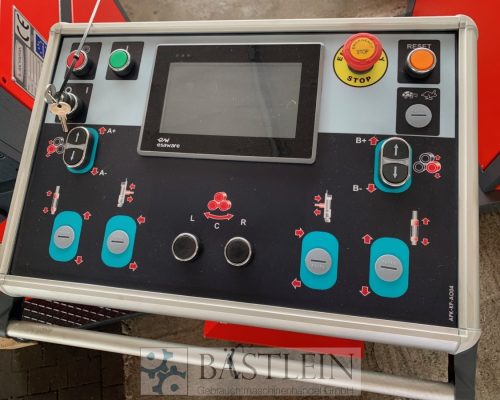

– separate control panel
– in one direction manually adjustable lateral straightening rollers
– manual lubrication
– horizontal and vertical operation
– CE mark / Declaration of Conformity
– Operating instructions in German
| round material | 40 | mm |
| tube diameter | 70x2 | mm |
| square material | 80x30x3 | mm |
| L-beam | 50 x 5 | mm |
| I - beam section - flat steel | 80 x 16 | mm |
| I-beam section - upend | 50 x 15 | mm |
| roll diameter | 157 | mm |
| Shaft diameter | 50 | mm |
| bending speed | 2,95 | m/min |
| total power requirement | 1,1 | kW |
| weight of the machine ca. | 500 | kg |
| dimensions of the machine ca. | 1000x950x1450 | mm |
9010071
Steuerung: Sonstige
Metal Processing, Sheet metal working / shaeres / bending, Pipe-Bending Machine
