Domestic equipments:
– hydr. roller drive
– Planetary gearbox delivery of the 2 lower rollers
– for extra small bending radii
– hardened tool holder (42CrMo4)
– Standard roller set, hardened
– lateral straightening rollers

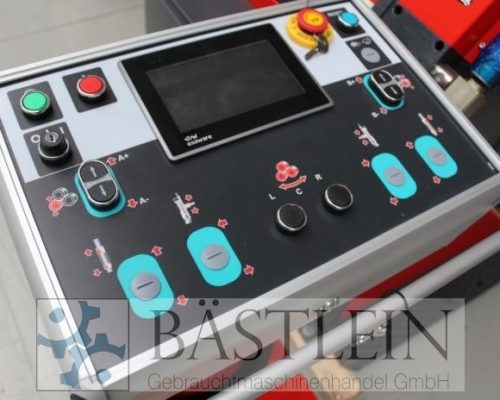

– mobile control panel

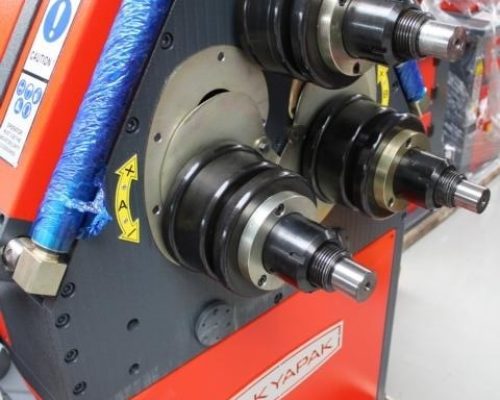

– 3 driven rollers
– Digital display
– Machine horizontal u. vertically usable
– CE mark / Declaration of Conformity
– Operating instructions in German
| I-beam section - flat steel | 80x20 (d1200) | mm |
| I-beam section - upend | 80x25 (d2100) | mm |
| L-beam | 50x50x6 (d1000) | mm |
| bar material - diameter | 40 (d800) | mm |
| square material | 60x60x3 (d4000) | mm |
| rectangle | 80x30x3 (d6000) | mm |
| tube diameter max. | 70x2 (d1600) | mm |
| tool adaptor | 60 | mm |
| roll diameter | 177 | mm |
| bending speed | 6,4 | m/min |
| total power requirement | 4 | kW |
| machine weight ab. | 970 | kg |
| Overall size | 1400x950x1450 | mm |
4040174
Steuerung: Sonstige
Metal Processing, Sheet metal working / shaeres / bending, Pipe-Bending Machine
