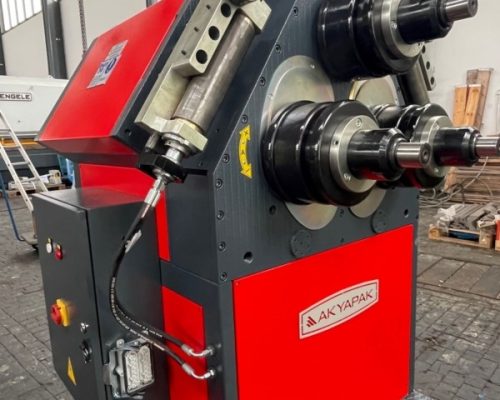

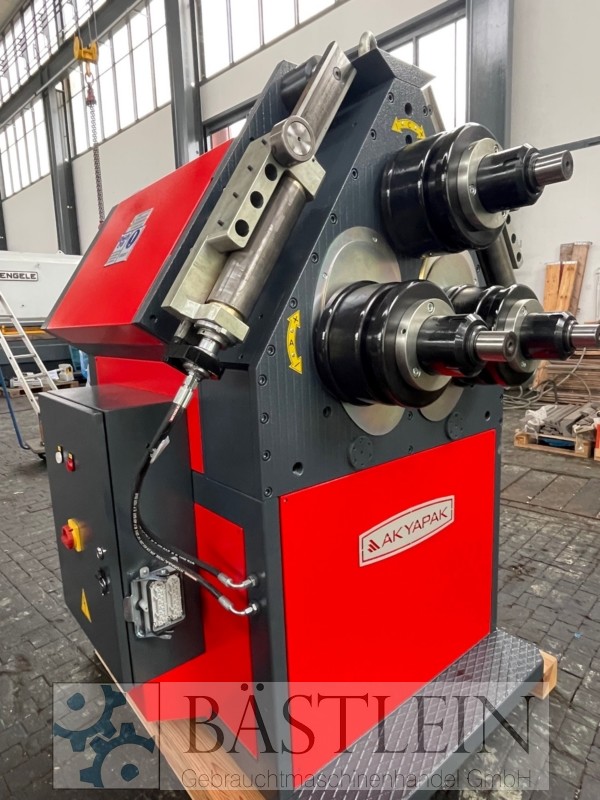

Domestic equipments:
– Welded steel structure (St-52)

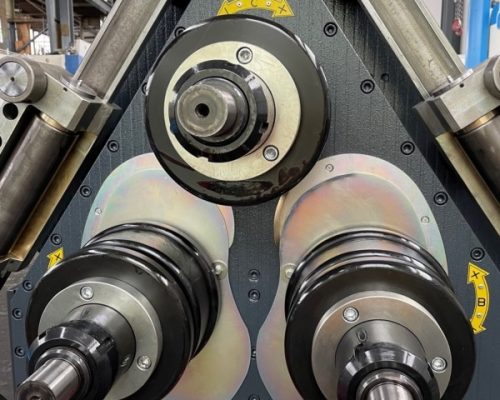

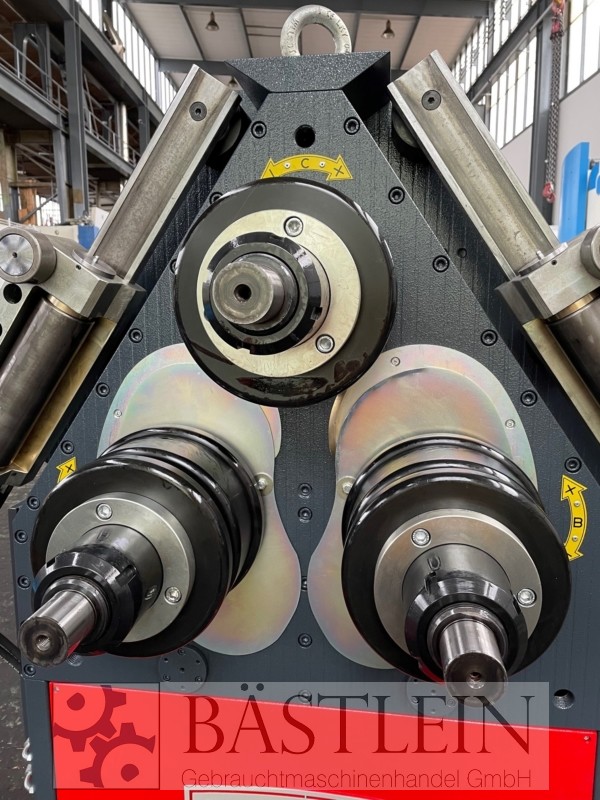

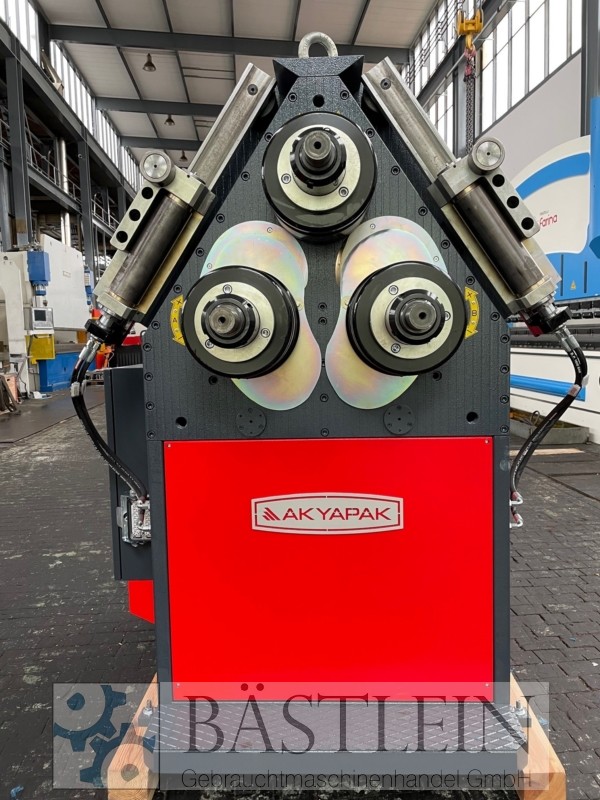

– Rollers are driven by 3 separate hydraulic motors
– Stepless speed
– Special steel gears
– Shafts are made of special steel, hardened and ground
– Manual lubrication

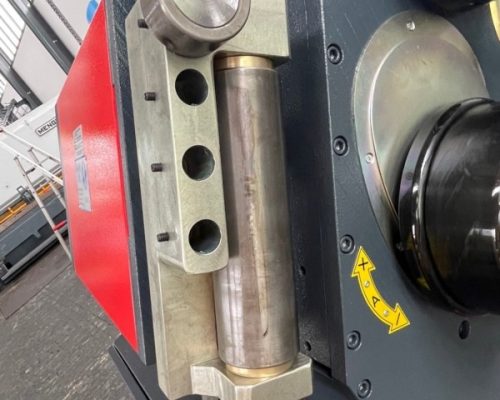

– Guide rollers are hydraulically adjustable
– Lower rollers are hydraulically movable up and down
– Infinitely adjustable speed of the lower rollers, move after
below and above
– Digital display for lower rollers

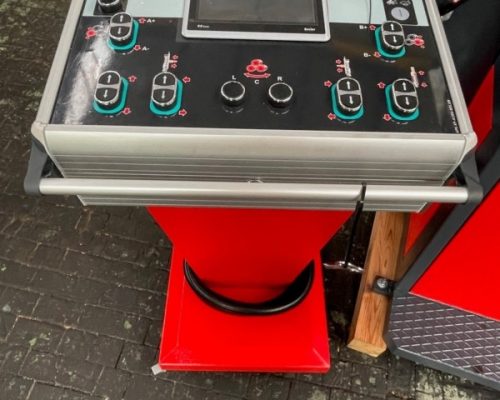

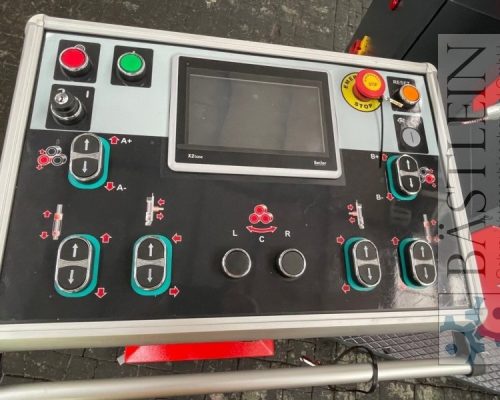

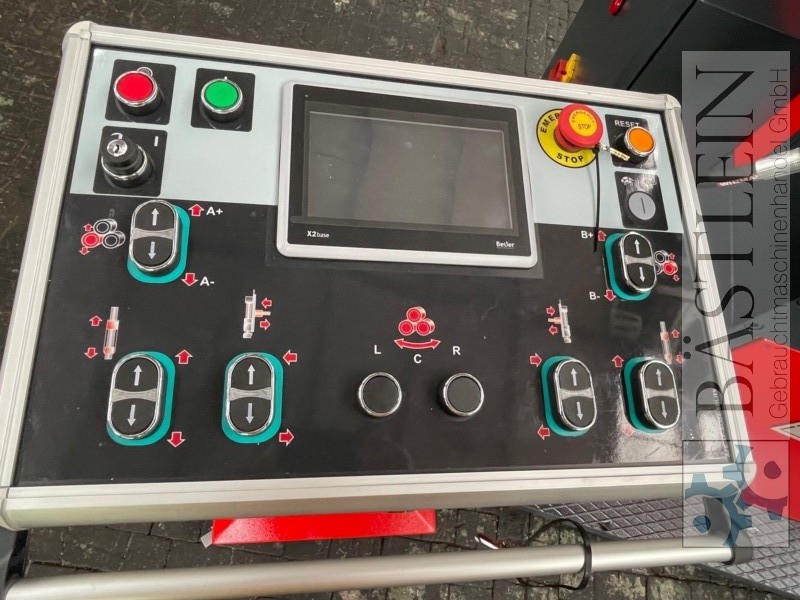

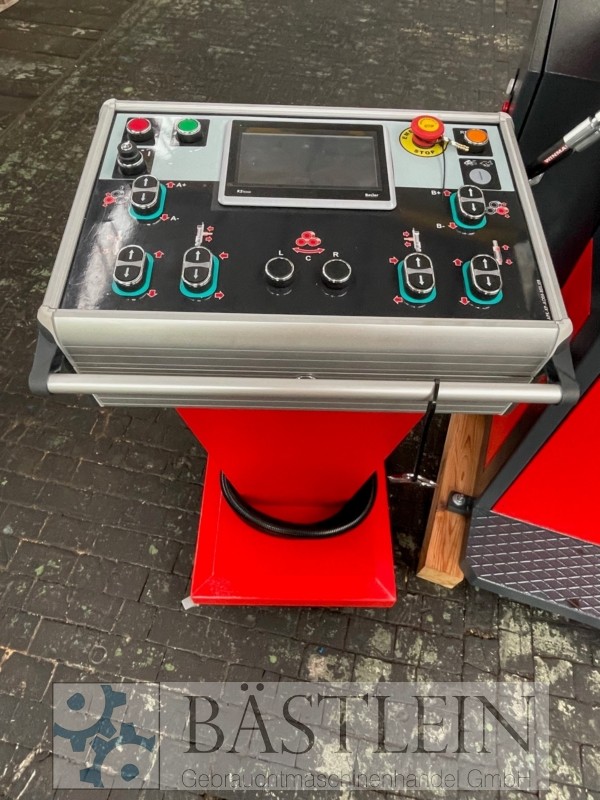

– Separate and movable control panel
– Horizontal and vertical operation
– Production quality certified according to CE, ISO 9001 – 2015, TSEK and TURQUM
Additional equipment:
– hydraulically adjustable straightening rollers
| I-beam section - upend | 100 x 20 (d 2100) | mm |
| tube diameter max. | 100 x 3 (d 3000) | mm |
| L-beam | 80 x 80 x 8 (d 2000) | mm |
| square material | 50 x 25 x 2 (d 600) | mm |
| bar material - diameter | 60,0 (d 1000) | mm |
| I-beam section - flat steel | 120 x 30 (d 600) max. 140 | mm |
| tool taper | 80,0 | |
| turning speeds | 4,2 | U/min |
| weight | 1600 | kg |
| dimensions | 1240 x 1375 x 1540 | mm |
4040171
Steuerung: Sonstige
Metal Processing, Sheet metal working / shaeres / bending, Pipe-Bending Machine
