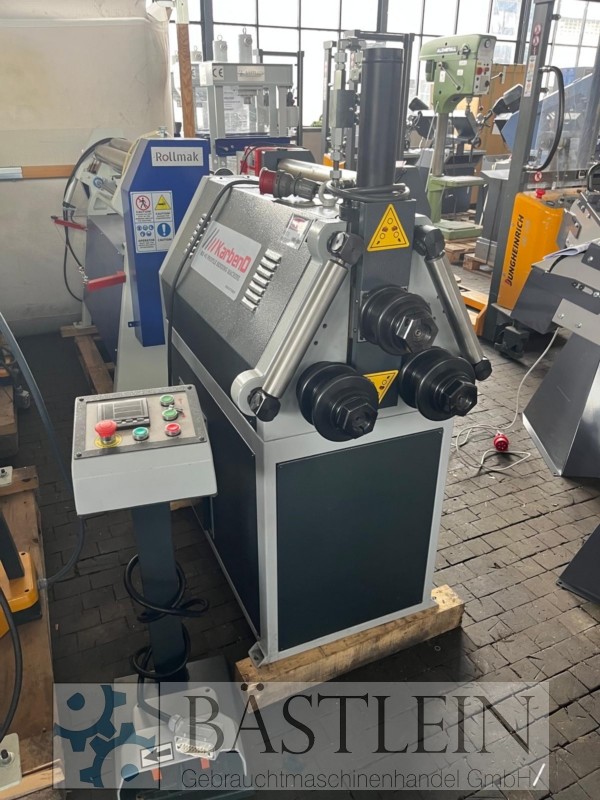

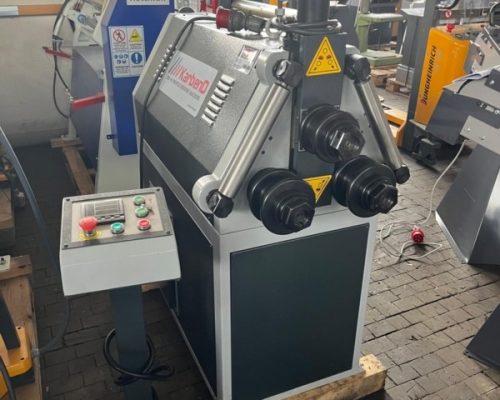

Pipe-Bending Machine, KARBEND RH 45

// Zustand: new
// Metal Processing
// Pipe-Bending Machine

General data


Stock no.	4040398
Make	KARBEND
Type	RH 45
Year	NEU
Control	Sonstige –
Storage location	Günzburg
Country of origin	Turkey
Delivery time	kurzfristig – nach Absprache.
Freight basis	Lieferung ab Lager Günzburg

Technical Details

Shaft diameter	45	mm
roll diameter	160	mm
Bending capacity - flat iron on edge	60 x 10	mm
	60 x 2	mm
Bending capacity - square	50 x 40 x 3	mm
Angle iron	50 x 50 x 6	mm
total power requirement	2,2	kW
weight of the machine ca.	600	kg

Description

Domestic equipments:
– Asymmetrical 3-roll round bending machine with motor drive
– Upper roller swung out
– Conical bending device
– Main engine with brake device

Additional equipment:
– motorized rear roller adjustment
– Digital display for back roller
– induction hardened rolls

Shaft diameter	45	mm
roll diameter	160	mm
Bending capacity - flat iron on edge	60 x 10	mm
	60 x 2	mm
Bending capacity - square	50 x 40 x 3	mm
Angle iron	50 x 50 x 6	mm
total power requirement	2,2	kW
weight of the machine ca.	600	kg

4040398
Steuerung: Sonstige
Metal Processing, Sheet metal working / shaeres / bending, Pipe-Bending Machine

Link to the machine: https://baestlein.com/en/maschine/pipe-bending-machine-karbend-rh-45/

Machine leasing

For you as a service: Up to 60 months without down payment, without residual value,
personal advice and individual leasing rate calculations are available upon request.
