Accessories / Equipment:

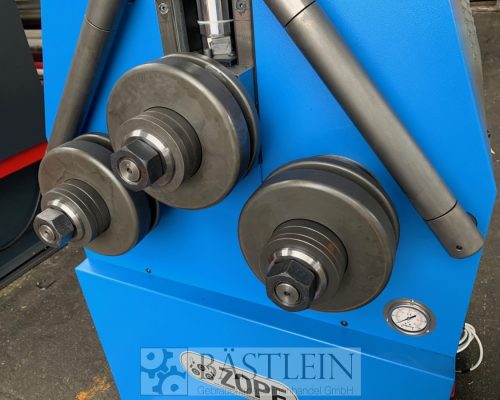

– Three driven rollers
– Hydraulic delivery of the upper roller
– Working position horizontal and vertical

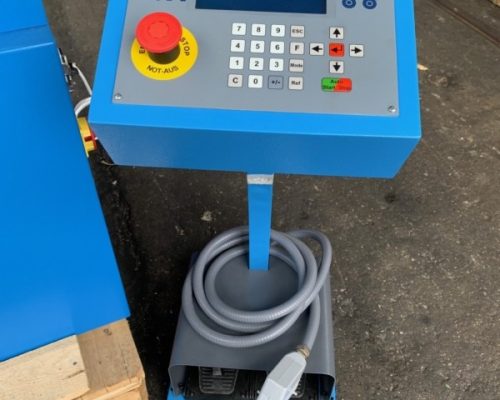

– Digital display with memory function
– Bearings with tapered roller bearings
– Use of replaceable slide rails on the guide carriage
– The standard roller set is included. It can bend various profiles flat iron, T-iron, solid material etc.
| roll diameter | 215 | mm |
| shaft diameter | 60 | mm |
| Shaft revolutions | 6 | U/min |
| 100x2 | mm | |
| 80x15 | mm | |
| pressure hydraulic cylinder | 180 | kN |
| total power requirement | 2,2 | kW |
| weight | 720 | kg |
| dimensions | 1200x900x1700 | mm |
4040255
Steuerung: Sonstige
Metal Processing, Sheet metal working / shaeres / bending, Pipe-Bending Machine
