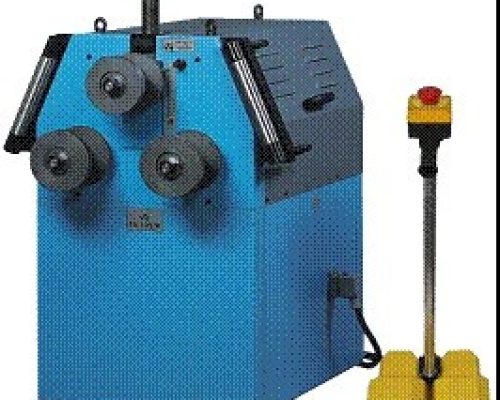

Pipe-Bending Machine, ZOPF ZB 70/3M ECO

// Zustand: new
// Metal Processing
// Pipe-Bending Machine

General data


Stock no.	9010097
Make	ZOPF
Type	ZB 70/3M ECO
Year	Neu
Control	Sonstige –
Storage location	Factory
Country of origin	Germany
Delivery time	kurzfristig – nach Absprache.
Freight basis	Lieferung ab Werk.

Technical Details

	40	mm
	8,5	U/min
	120	mm
roll diameter	152 / 162	mm
engine output	1,1	kW
range L-W-H	900 x 600 x 1000	mm
weight	470	kg
connected load	400/50	V/Hz

Description

Equipment / Accessories:
– Three driven rollers
– Manual delivery of the upper roller
– Working position horizontal and vertical
– Bearings with tapered roller bearings
– Use of replaceable slide rails on the guide carriage

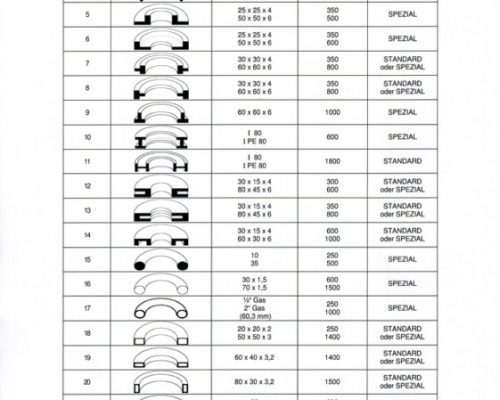

– The standard roller set is included. He can turn
used different profiles

	40	mm
	8,5	U/min
	120	mm
roll diameter	152 / 162	mm
engine output	1,1	kW
range L-W-H	900 x 600 x 1000	mm
weight	470	kg
connected load	400/50	V/Hz

9010097
Steuerung: Sonstige
Metal Processing, Sheet metal working / shaeres / bending, Pipe-Bending Machine

Link to the machine: https://baestlein.com/en/maschine/pipe-bending-machine-zopf-zb-70-3m-eco/

Machine leasing

For you as a service: Up to 60 months without down payment, without residual value,
personal advice and individual leasing rate calculations are available upon request.
