Accessories / equipment:
– Conical bending device

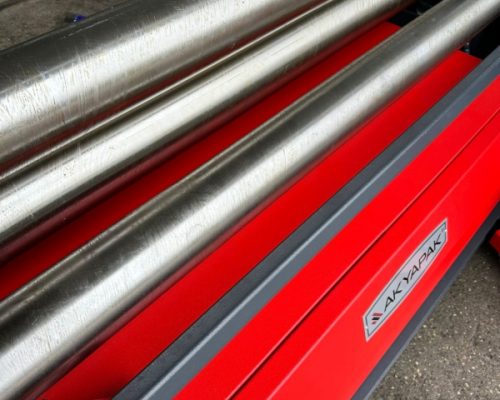

– induction hardened rolls
– digital display for side rollers

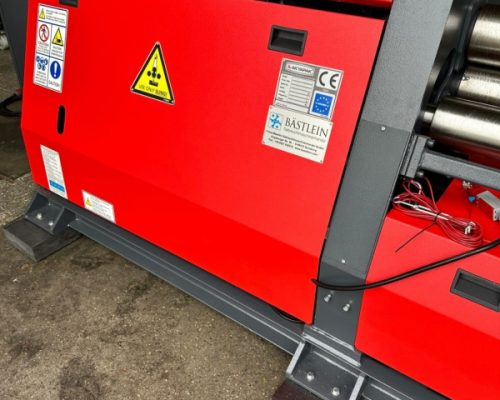

– Machine made of steel construction

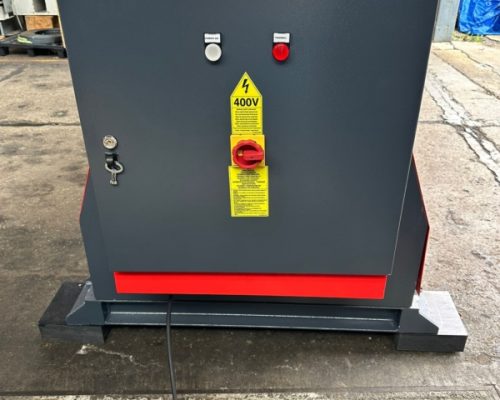

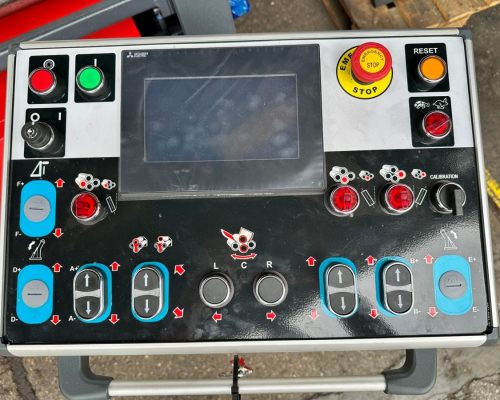

– Separate control panel
– two speeds
– all rollers on ball bearings

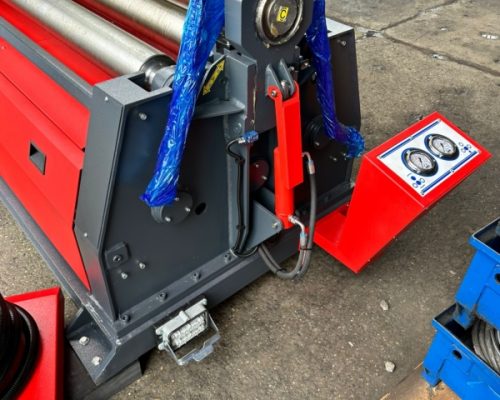

– Folding and support bearing from the top roller is actuated from the control panel.
When the folding bearing is opened, the roller moves automatically upwards.
– Conical adjustment of the rollers via control panel
– Central rollers are via hydraulic motor and rotary reduction gear
driven. (Top and bottom rollers)
– Calibration
| sheet width | 1600 | mm |
| plate thickness | 6 | mm |
| pre-bending | 4 | mm |
| upper roll diameter | 140 | mm |
| lower roll diameter | 140 | mm |
| side roll diameter | 120 | mm |
| min. bending diameter | Oberwalzen-Ø x 3 | |
| total power requirement | 3 | kW |
| weight of the machine ca. | 2.000 | kg |
| Overall size | 3700x1300x1280 | mm |
4040217
Steuerung: konventionell

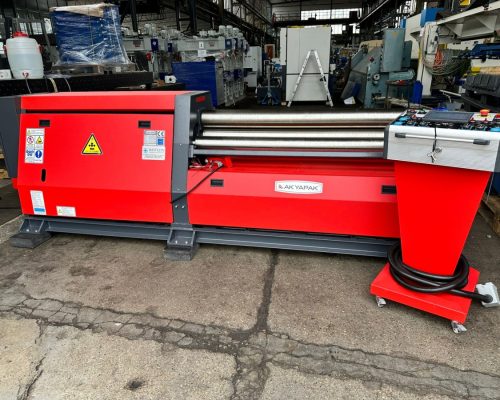

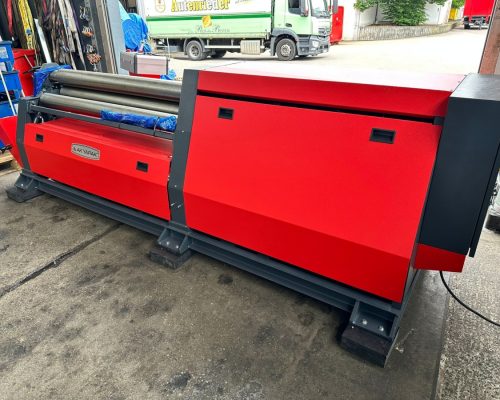

Metal Processing, Sheet metal working / shaeres / bending, Plate Bending Machine – 4 Rolls
