Accessories / equipment:

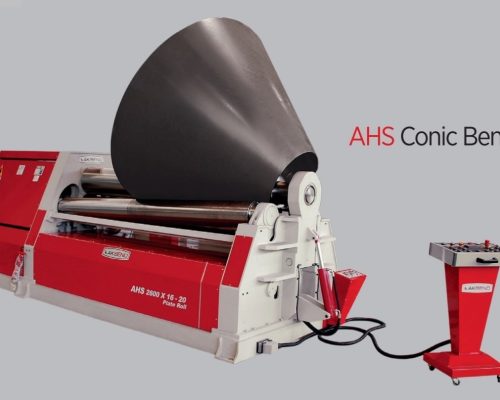

– Conical bending device
– induction hardened rolls
– digital display for side rollers
– Machine made of steel construction
– Separate control panel
– two speeds
– all rollers on ball bearings
– Folding and support bearing from the top roller is actuated from the control panel.
When the folding bearing is opened, the roller moves automatically upwards.
– Conical adjustment of the rollers via control panel
– Central rollers are via hydraulic motor and rotary reduction gear
driven. (Top and bottom rollers)
– Calibration
| sheet width | 2100 | mm |
| plate thickness | 6 | mm |
| pre-bending | 4 | mm |
| upper roll diameter | 160 | mm |
| lower roll diameter | 140 | mm |
| side roll diameter | 120 | mm |
| total power requirement | 2,2 | kW |
| Overall size | 4140x1040x1140 | mm |
| weight of the machine ca. | 2.350 | kg |
4040244
Steuerung: Sonstige
Metal Processing, Sheet metal working / shaeres / bending, Plate Bending Machine – 4 Rolls
