Accessories / equipment:

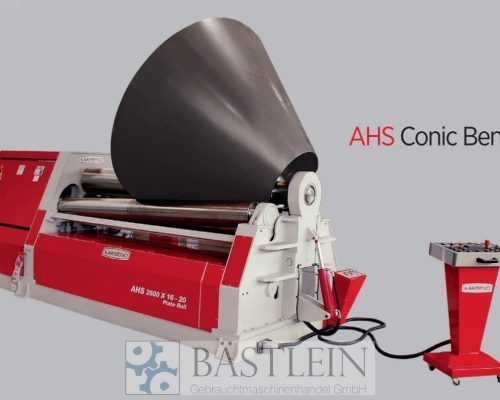

– Conical bending device
– induction hardened rolls
– digital display for side rollers
– Machine made of steel construction
– Separate control panel
– two speeds
– all rollers on ball bearings
– Folding and support bearing from the top roller is actuated from the control panel.
When the folding bearing is opened, the roller moves automatically upwards.
– Conical adjustment of the rollers via control panel
– Central rollers are via hydraulic motor and rotary reduction gear
driven. (Top and bottom rollers)
– Calibration
| sheet width | 3100 | mm |
| plate thickness | 6 | mm |
| pre-bending | 4 | mm |
| upper roll diameter | 210 | mm |
| lower roll diameter | 190 | mm |
| side roll diameter | 170 | mm |
| total power requirement | 7,5 | kW |
| Overall size | 5200x1400x1300 | mm |
| machine weight ab. | 5.400 | kg |
4040301
Steuerung: Sonstige
Metal Processing, Sheet metal working / shaeres / bending, Plate Bending Machine – 4 Rolls
